Search › Model › ACV35

ACV35

Toyota CAMRY-VISTA-AURION · 2001 · 4,200 parts · 191 categories

4,200 items

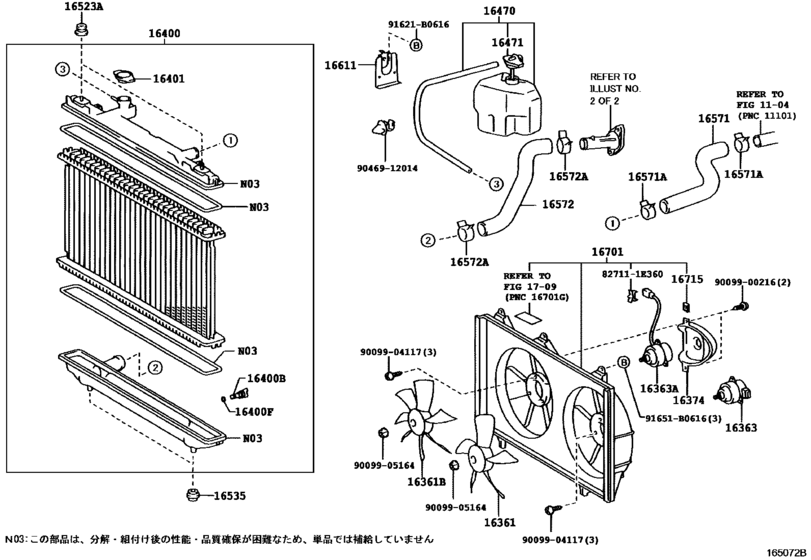

Radiator & Water Outlet ([09.2001 - ] (0109- )) 51

#	OEM	Part name
0	82711-1E360	Clamp, Wiring Harness
16258	16258-28010	Gasket(For Heater Return)
16258	16258-28030	Gasket(For Heater Return)
16258	16258-28011	Gasket(For Heater Return)
16261	16261-28050	Hose, Water By-Pass
16261	96135-51300	Clamp, Hose
16264	16264-28060	Hose, Water By-Pass, No.2
16268	16268-28010	Pipe, Water By-Pass, No.1
16321	16321-28020	Inlet, Water
16325	16325-28010	Gasket, Water Inlet Housing, No.1
16325	16325-62010	Gasket, Water Inlet Housing, No.1
16331	90916-03084	Thermostat
16331	90916-03129	Thermostat
16331	90916-03136	Thermostat
16361	16361-22030	Fan
16361	16361-28160	Fan
16361	16361-74160	Fan, No.2
16361	16361-74161	Fan, No.2
16363	16363-23010	Motor, Cooling Fan
16363	16363-74370	Motor, Cooling Fan, No.2
16374	16366-28130	Insulator, Cooling Fan Motor
16400	16400-28280	Radiator Assy
16400	16400-28281	Radiator Assy
16400	23322-54010	Plug,air(For Oil Cooler Drain Cock)
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16401	16401-28280	Cap Sub-Assy, Radiator
16401	16401-31480	Cap Sub-Assy, Radiator
16401	16401-28430	Cap Sub-Assy, Radiator
16470	16470-28060	Tank Assy, Radiator Reserve
16470	16470-28090	Tank Assy, Radiator Reserve
16471	16405-28030	Cap Sub-Assy, Reserve Tank
16471	16405-28031	Cap Sub-Assy, Reserve Tank
16523	16523-28020	Cushion, Radiator Support
16535	16535-74210	Support, Radiator, Lower
16571	16571-28080	Hose, Radiator, Inlet
16571	90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-28080	Hose, Radiator, Outlet
16611	16611-28010	Bracket, Radiator Reserve Tank
16701	16711-28200	Shroud Sub-Assy, Fan
16701	16711-28201	Shroud Sub-Assy, Fan
16715	88688-18030	Bracket, Fan Shroud
91621	91621-B0616	Bolt
91631	91631-G0614	BOT WWASHER
91651	91651-B0616	BOLT WWASHER
9009900216	90099-00216	New Genuine Part
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9009905164	90099-05164	Nut
9011606127	90116-06127	Bolt, Stud(For Oil Pan)
9012606022	90126-06022	STUD HEX LOBULAR
9046912014	90469-12014	Clamp Or Clip(For Radiator Reserve Tank Hose)
9415080640	94150-80640	NUT FLANGE

OEM	Part name	Category
16258-28010	Gasket(For Heater Return)	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16258-28011	Gasket(For Heater Return)	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16258-28030	Gasket(For Heater Return)	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16261-28050	Hose, Water By-Pass	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16264-28060	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16268-28010	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16321-28020	Inlet, Water	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16325-28010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16325-62010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16361-22030	Fan	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16361-28160	Fan	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16361-74160	Fan, No.2	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16361-74161	Fan, No.2	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16363-23010	Motor, Cooling Fan	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16363-74370	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16366-28130	Insulator, Cooling Fan Motor	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16400-28280	Radiator Assy	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16400-28281	Radiator Assy	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16401-28280	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16401-28430	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16401-31480	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16405-28030	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16405-28031	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16470-28060	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16470-28090	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16523-28020	Cushion, Radiator Support	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16535-74210	Support, Radiator, Lower	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16571-28080	Hose, Radiator, Inlet	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16572-28080	Hose, Radiator, Outlet	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16611-28010	Bracket, Radiator Reserve Tank	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16711-28200	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([09.2001 - ] (0109- ))
16711-28201	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([09.2001 - ] (0109- ))
23322-54010	Plug,air(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([09.2001 - ] (0109- ))
82711-1E360	Clamp, Wiring Harness	Radiator & Water Outlet ([09.2001 - ] (0109- ))
88688-18030	Bracket, Fan Shroud	Radiator & Water Outlet ([09.2001 - ] (0109- ))
90099-00216	New Genuine Part	Radiator & Water Outlet ([09.2001 - ] (0109- ))
90099-04117	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([09.2001 - ] (0109- ))
90099-05164	Nut	Radiator & Water Outlet ([09.2001 - ] (0109- ))
90116-06127	Bolt, Stud(For Oil Pan)	Radiator & Water Outlet ([09.2001 - ] (0109- ))
90126-06022	STUD HEX LOBULAR	Radiator & Water Outlet ([09.2001 - ] (0109- ))
90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([09.2001 - ] (0109- ))
90469-12014	Clamp Or Clip(For Radiator Reserve Tank Hose)	Radiator & Water Outlet ([09.2001 - ] (0109- ))
90916-03084	Thermostat	Radiator & Water Outlet ([09.2001 - ] (0109- ))
90916-03129	Thermostat	Radiator & Water Outlet ([09.2001 - ] (0109- ))
90916-03136	Thermostat	Radiator & Water Outlet ([09.2001 - ] (0109- ))
91621-B0616	Bolt	Radiator & Water Outlet ([09.2001 - ] (0109- ))
91631-G0614	BOT WWASHER	Radiator & Water Outlet ([09.2001 - ] (0109- ))
91651-B0616	BOLT WWASHER	Radiator & Water Outlet ([09.2001 - ] (0109- ))
94150-80640	NUT FLANGE	Radiator & Water Outlet ([09.2001 - ] (0109- ))
96135-51300	Clamp, Hose	Radiator & Water Outlet ([09.2001 - ] (0109- ))
