Search › Model › ACV35

ACV35

Toyota CAMRY-VISTA-AURION · 2001 · 4,200 parts · 191 categories

4,200 items

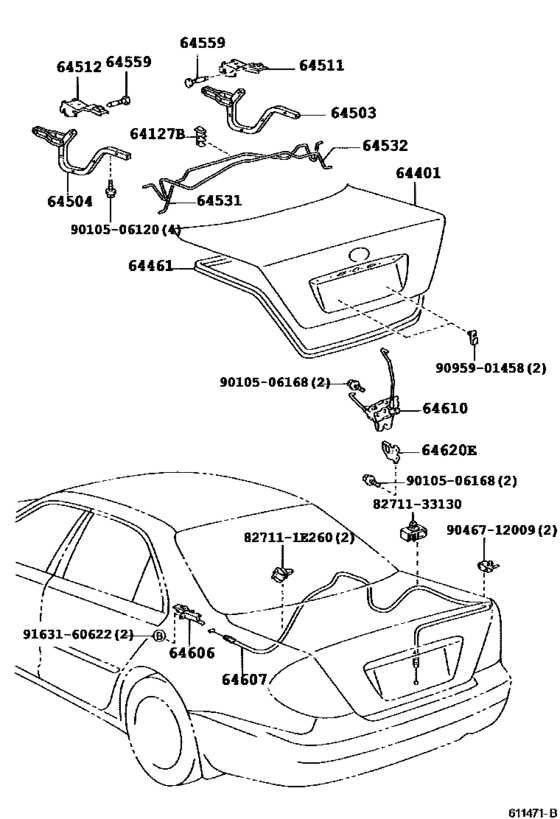

Luggage Compartment Door & Lock ([09.2001 - ] (0109- )) 24

#	OEM	Part name
64127	64127-33041	Support, Luggage Compartment Door Torsion Bar
64401	64401-33300	Panel Sub-Assy, Luggage Compartment Door
64461	64461-33050	Weatherstrip, Luggage Compartment Door
64461	64461-33051	Weatherstrip, Luggage Compartment Door
64503	64503-33070	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh
64511	64511-33050	Support, Luggage Compartment Door Hinge, Rh
64512	64512-33050	Support, Luggage Compartment Door Hinge, Lh
64531	64531-33140	Bar, Luggage Door Hinge Torsion, Rh
64532	64532-33140	Bar, Luggage Door Hinge Torsion, Lh
64559	64559-32020	Pin, Luggage Door Hinge
64606	64606-53010	Lever Sub-Assy, Luggage Door Lock Open
64607	64607-33070	Cable Sub-Assy, Luggage Door Lock Control
64607	64607-33110	Cable Sub-Assy, Luggage Door Lock Control
64610	64600-33090	Lock Assy, Luggage Compartment Door
64610	64600-33091	Lock Assy, Luggage Compartment Door
64620	64621-53010	Striker Assy, Luggage Compartment Door
8271133130	82711-33130	Wire, Fuse To Fuse(for Combustion Heater)
9010506120	90105-06120	BOLT WASHER BASED
9010506168	90105-06168	BOLT WASHER BASED
9046712009	90467-12009	Clamp, No.1(For Luggage Door Lock Control Cable)
9095901458	90959-01458	Cover, Door Panel Air Outlet, Lh
9095901458	75121-48010	Cover, Door Panel Air Outlet, Lh
9163160622	91631-60622	Screw
9223372036854775807	82711-1E260	Clamp (For Fuel Lid Lock Control Cable)

OEM	Part name	Category
64127-33041	Support, Luggage Compartment Door Torsion Bar	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
64401-33300	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
64461-33050	Weatherstrip, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
64461-33051	Weatherstrip, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
64503-33070	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
64511-33050	Support, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
64512-33050	Support, Luggage Compartment Door Hinge, Lh	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
64531-33140	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
64532-33140	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
64559-32020	Pin, Luggage Door Hinge	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
64600-33090	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
64600-33091	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
64606-53010	Lever Sub-Assy, Luggage Door Lock Open	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
64607-33070	Cable Sub-Assy, Luggage Door Lock Control	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
64607-33110	Cable Sub-Assy, Luggage Door Lock Control	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
64621-53010	Striker Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
75121-48010	Cover, Door Panel Air Outlet, Lh	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
82711-1E260	Clamp (For Fuel Lid Lock Control Cable)	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
82711-33130	Wire, Fuse To Fuse(for Combustion Heater)	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
90105-06120	BOLT WASHER BASED	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
90105-06168	BOLT WASHER BASED	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
90467-12009	Clamp, No.1(For Luggage Door Lock Control Cable)	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
90959-01458	Cover, Door Panel Air Outlet, Lh	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
91631-60622	Screw	Luggage Compartment Door & Lock ([09.2001 - ] (0109- ))
