ACV35

Toyota CAMRY-VISTA-AURION · 2001 · 4,200 parts · 191 categories

4,200 items

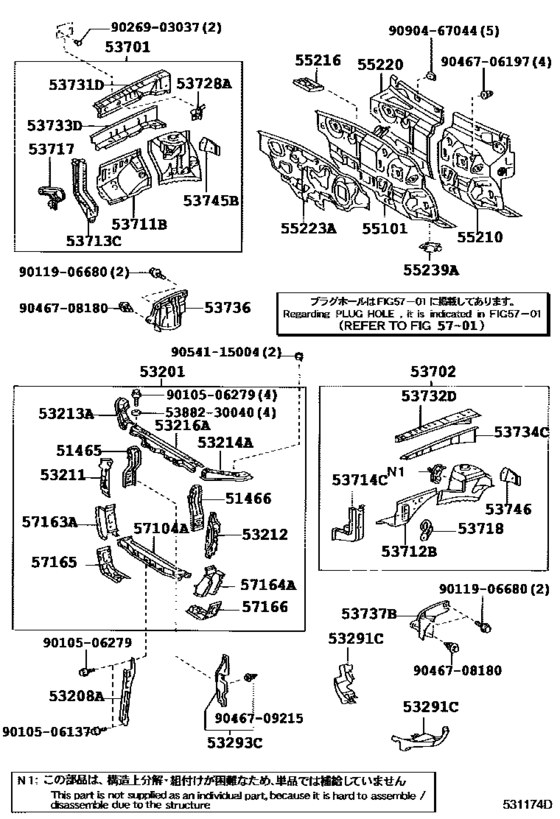

Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301)) 58

#	OEM	Part name
51465	51465-33040	Brace, Radiator Support, Upper Rh
51466	51466-33040	Brace, Radiator Support, Upper Lh
53201	53201-33905	Support Sub-Assy, Radiator
53201	53201-33909	Support Sub-assy, Radiator
53201	53213-33010	Support, Radiator, Upper Rh
53201	53214-33010	Support, Radiator, Upper Lh
53208	53215-33050	Support Sub-Assy, Hood Lock
53211	53211-33070	Support, Radiator, Rh
53212	53212-33070	Support, Radiator, Lh
53216	53216-33120	Support, Radiator, Upper
53291	53291-33010	Seal, Radiator Support To Frame
53291	53292-33120	Seal, Radiator Support To Frame
53293	53293-33020	Deflector, Radiator Side, Rh
53701	53701-33130	Apron Sub-Assy, Front Fender, Rh
53701	53701-33131	Apron Sub-Assy, Front Fender, Rh
53701	89747-48020	Buzzer, Clearance Warning, No.2
53702	53702-33090	Apron Sub-Assy, Front Fender, Lh
53711	53711-33060	Apron, Front Fender, Front Rh
53712	53712-33030	Apron, Front Fender, Front Lh
53713	53713-33010	Extension, Front Fender Apron, Front Rh
53713	53713-33011	Extension, Front Fender Apron, Front Rh
53714	53714-33010	Extension, Front Fender Apron, Front Lh
53717	53717-33020	Plate, Fender Apron, Rh
53718	53718-33010	Plate, Fender Apron, Lh
53728	53729-33020	Bracket, Fender Apron, Rh
53731	53731-33050	Member, Front Apron To Cowl Side, Upper Rh
53731	53731-33080	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-33040	Member, Front Apron To Cowl Side, Upper Lh
53732	53732-33070	Member, Front Apron To Cowl Side, Upper Lh
53733	53733-33030	Member, Front Apron To Cowl Side, Lower Front Rh
53734	53734-33030	Member, Front Apron To Cowl Side, Lower Front Lh
53736	53736-33030	Seal, Front Fender Apron, Rh
53737	53737-28020	Seal, Front Fender Apron, Lh
53745	53745-33010	Reinforcement, Front Fender Apron, Rear Rh
53746	53746-33010	Reinforcement, Front Fender Apron, Rear Lh
55101	55101-33300	Panel Sub-Assy, Dash
55210	55210-33100	Insulator Assy, Dash Panel
55210	55210-33140	Insulator Assy, Dash Panel
55216	55216-33010	Pad, Dash Panel Insulator, No.4
55220	55220-33090	Insulator Assy, Dash Panel, No.2
55223	55223-33090	Insulator, Dash Panel, Outer
55239	55239-33010	Plate, Dash Panel Insulator, No.3
55239	55239-33020	Plate, Dash Panel Insulator, No.3
57104	57161-33040	Member Sub-Assy, Front Cross
57163	57163-33030	Reinforcement, Front Crossmember, No.1 Rh
57164	57164-33030	Reinforcement, Front Crossmember, No.1 Lh
57165	57165-33010	Reinforcement, Front Crossmember, Lower Rh
57166	57166-33010	Reinforcement, Front Crossmember, Lower Lh
5388230040	53882-30040	Seal, Radiator Support, Upper
9010506137	90105-06137	BOLT, WASHER BASED H
9010506279	90105-06279	BOLT WASHER BASED
9011906680	90119-06680	BOLT WWASHER
9026903037	90269-03037	RIVET
9046706197	90467-06197	Clip
9046708180	90467-08180	Clip(For Front Bumper Retainer)
9046709215	90467-09215	Clip (For Center Lower Garnish)
9054115004	90541-15004	Cushion, Hood Bumper
9090467044	90904-67044	New Genuine Part

OEM	Part name	Category
51465-33040	Brace, Radiator Support, Upper Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
51466-33040	Brace, Radiator Support, Upper Lh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53201-33905	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53201-33909	Support Sub-assy, Radiator	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53211-33070	Support, Radiator, Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53212-33070	Support, Radiator, Lh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53213-33010	Support, Radiator, Upper Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53214-33010	Support, Radiator, Upper Lh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53215-33050	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53216-33120	Support, Radiator, Upper	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53291-33010	Seal, Radiator Support To Frame	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53292-33120	Seal, Radiator Support To Frame	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53293-33020	Deflector, Radiator Side, Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53701-33130	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53701-33131	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53702-33090	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53711-33060	Apron, Front Fender, Front Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53712-33030	Apron, Front Fender, Front Lh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53713-33010	Extension, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53713-33011	Extension, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53714-33010	Extension, Front Fender Apron, Front Lh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53717-33020	Plate, Fender Apron, Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53718-33010	Plate, Fender Apron, Lh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53729-33020	Bracket, Fender Apron, Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53731-33050	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53731-33080	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53732-33040	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53732-33070	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53733-33030	Member, Front Apron To Cowl Side, Lower Front Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53734-33030	Member, Front Apron To Cowl Side, Lower Front Lh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53736-33030	Seal, Front Fender Apron, Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53737-28020	Seal, Front Fender Apron, Lh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53745-33010	Reinforcement, Front Fender Apron, Rear Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53746-33010	Reinforcement, Front Fender Apron, Rear Lh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
53882-30040	Seal, Radiator Support, Upper	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
55101-33300	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
55210-33100	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
55210-33140	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
55216-33010	Pad, Dash Panel Insulator, No.4	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
55220-33090	Insulator Assy, Dash Panel, No.2	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
55223-33090	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
55239-33010	Plate, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
55239-33020	Plate, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
57161-33040	Member Sub-Assy, Front Cross	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
57163-33030	Reinforcement, Front Crossmember, No.1 Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
57164-33030	Reinforcement, Front Crossmember, No.1 Lh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
57165-33010	Reinforcement, Front Crossmember, Lower Rh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
57166-33010	Reinforcement, Front Crossmember, Lower Lh	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
89747-48020	Buzzer, Clearance Warning, No.2	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
90105-06137	BOLT, WASHER BASED H	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
90105-06279	BOLT WASHER BASED	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
90119-06680	BOLT WWASHER	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
90269-03037	RIVET	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
90467-06197	Clip	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
90467-08180	Clip(For Front Bumper Retainer)	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
90467-09215	Clip (For Center Lower Garnish)	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
90541-15004	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
90904-67044	New Genuine Part	Front Fender Apron & Dash Panel ([09.2001 - 01.2003] (0109-0301))
