Search › Model › ACV35

ACV35

Toyota CAMRY-VISTA-AURION · 2001 · 4,200 parts · 191 categories

4,200 items

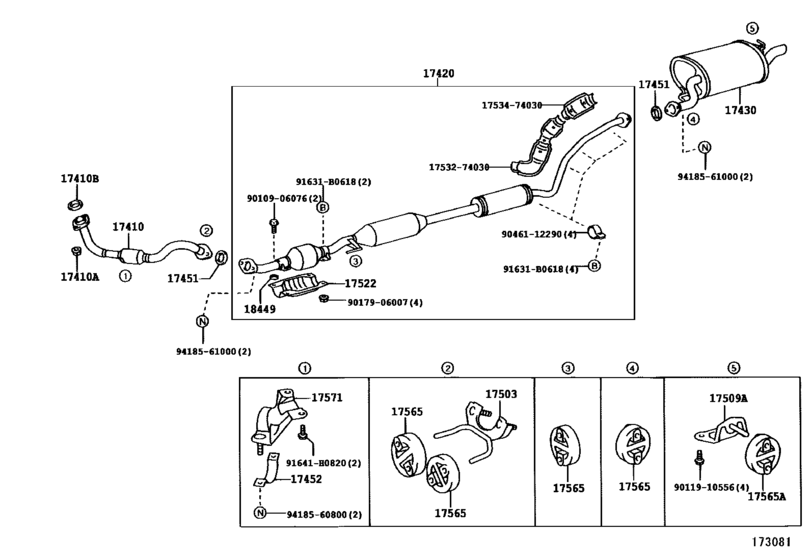

Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35) 27

#	OEM	Part name
17410	17410-28360	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06090	Gasket, Exhaust Pipe
17420	17420-28160	Pipe Assy, Exhaust, Center
17430	17430-28290	Pipe Assy, Exhaust, Tail
17451	90917-06078	Gasket, Exhaust Pipe
17451	90917-A6003	Gasket, Exhaust Pipe
17452	17452-74120	Clamp, Exhaust Pipe
17503	17503-28040	Bracket Sub-Assy, Catalytic Converter, Rear
17509	17509-74201	Bracket Sub-Assy, Exhaust Pipe No.4 Support
17522	17522-21010	Protector, Exhaust Pipe, Upper No.2
17565	17565-15140	Bolt Or Ring, Exhaust Tail Pipe (For Front)
17565	17565-20060	Support, Exhaust Pipe, No.3
17571	17571-28090	Bracket, Exhaust Pipe Support, No.1
18449	18449-74010	Spacer, Converter Protector
91631	91631-B0618	BOLT WWASHER
91641	91641-H0820	Bolt
1753274030	17532-74030	New Genuine Part
1753474030	17534-74030	New Genuine Part
9010906076	90109-06076	New Genuine Part
9011910556	90119-10556	Bolt(For Spare Wheel Carrier Lock)
9017906007	90179-06007	Nut
9046112290	90461-12290	Clamp, Exhaust Pipe
9046112290	90461-12375	Clamp, Exhaust Pipe
9418560800	94185-60800	NUT
9418561000	94185-61000	NUTLOCK

OEM	Part name	Category
17410-28360	Pipe Assy, Exhaust, Front	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
17420-28160	Pipe Assy, Exhaust, Center	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
17430-28290	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
17452-74120	Clamp, Exhaust Pipe	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
17503-28040	Bracket Sub-Assy, Catalytic Converter, Rear	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
17509-74201	Bracket Sub-Assy, Exhaust Pipe No.4 Support	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
17522-21010	Protector, Exhaust Pipe, Upper No.2	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
17532-74030	New Genuine Part	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
17534-74030	New Genuine Part	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
17565-15140	Bolt Or Ring, Exhaust Tail Pipe (For Front)	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
17565-20060	Support, Exhaust Pipe, No.3	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
17571-28090	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
18449-74010	Spacer, Converter Protector	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
90109-06076	New Genuine Part	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
90119-10556	Bolt(For Spare Wheel Carrier Lock)	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
90179-06007	Nut	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
90461-12290	Clamp, Exhaust Pipe	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
90461-12375	Clamp, Exhaust Pipe	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
90917-06078	Gasket, Exhaust Pipe	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
90917-06090	Gasket, Exhaust Pipe	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
90917-A6003	Gasket, Exhaust Pipe	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
91631-B0618	BOLT WWASHER	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
91641-H0820	Bolt	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
94185-60800	NUT	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
94185-61000	NUTLOCK	Exhaust Pipe ([09.2001 - ] (0109- )2AZFE..ACV35)
