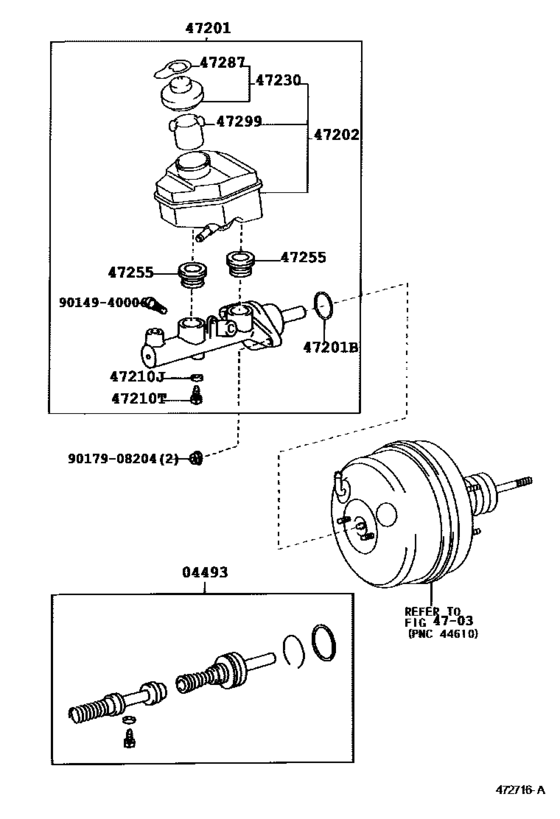

| 04493-33110 |
Cylinder Kit, Brake Master |
Brake Master Cylinder ([09.2001 - ] (0109- )) |
| 47201-33370 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([09.2001 - ] (0109- )) |
| 47220-33160 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([09.2001 - ] (0109- )) |
| 47230-20140 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([09.2001 - ] (0109- )) |
| 47255-16010 |
Grommet, Master Cylinder Reservoir |
Brake Master Cylinder ([09.2001 - ] (0109- )) |
| 47287-20010 |
Label, Brake Fluid Information |
Brake Master Cylinder ([09.2001 - ] (0109- )) |
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir |
Brake Master Cylinder ([09.2001 - ] (0109- )) |
| 90029-20059 |
Ring, O(For Brake Master Cylinder) |
Brake Master Cylinder ([09.2001 - ] (0109- )) |
| 90029-43001 |
Gasket(For Master Cylinder) |
Brake Master Cylinder ([09.2001 - ] (0109- )) |
| 90080-18070 |
NUT, WWASHER |
Brake Master Cylinder ([09.2001 - ] (0109- )) |
| 90109-06077 |
Bolt(For Brake Master Cylinder) |
Brake Master Cylinder ([09.2001 - ] (0109- )) |
| 90149-40006 |
Bolt |
Brake Master Cylinder ([09.2001 - ] (0109- )) |
| 90179-08204 |
Nut |
Brake Master Cylinder ([09.2001 - ] (0109- )) |
| 90430-06104 |
Gasket(For Brake Actuator) |
Brake Master Cylinder ([09.2001 - ] (0109- )) |
