Search › Model › ACV35
ACV35

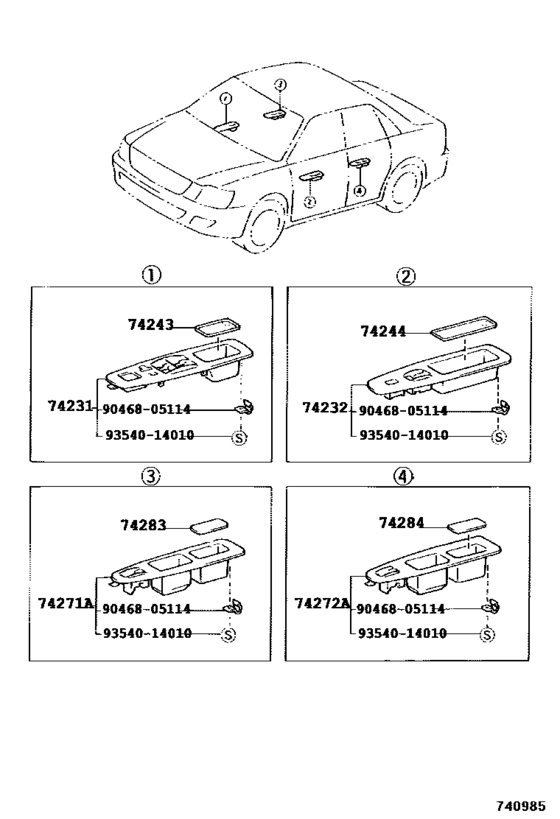

Armrest & Visor ([09.2001 - ] ARMREST (0109- )) 9
| # | OEM | Part name |
|---|---|---|
| 74231 | 74231-33250 | Panel, Front Armrest Base, Upper Rh |
| 74232 | 74232-33200 | Panel, Front Armrest Base, Upper Lh |
| 74243 | 74243-33010 | Cover, Front Door Armrest Base, Lower Rh |
| 74244 | 74244-33010 | Cover, Front Door Armrest Base, Lower Lh |
| 74271 | 74271-33140 | Panel, Rear Door Armrest Base, Upper Rh |
| 74272 | 74272-33140 | Panel, Rear Door Armrest Base, Upper Lh |
| 74283 | 74283-33020 | Cover, Rear Door Armrest Base, Lower Rh |
| 9046805114 | 90468-05114 | CLIP |
| 9354014010 | 93540-14010 | Clip, Headlining Retainer |
| OEM | Part name | Category |
|---|---|---|
| 74231-33250 | Panel, Front Armrest Base, Upper Rh | Armrest & Visor ([09.2001 - ] ARMREST (0109- )) |
| 74232-33200 | Panel, Front Armrest Base, Upper Lh | Armrest & Visor ([09.2001 - ] ARMREST (0109- )) |
| 74243-33010 | Cover, Front Door Armrest Base, Lower Rh | Armrest & Visor ([09.2001 - ] ARMREST (0109- )) |
| 74244-33010 | Cover, Front Door Armrest Base, Lower Lh | Armrest & Visor ([09.2001 - ] ARMREST (0109- )) |
| 74271-33140 | Panel, Rear Door Armrest Base, Upper Rh | Armrest & Visor ([09.2001 - ] ARMREST (0109- )) |
| 74272-33140 | Panel, Rear Door Armrest Base, Upper Lh | Armrest & Visor ([09.2001 - ] ARMREST (0109- )) |
| 74283-33020 | Cover, Rear Door Armrest Base, Lower Rh | Armrest & Visor ([09.2001 - ] ARMREST (0109- )) |
| 90468-05114 | CLIP | Armrest & Visor ([09.2001 - ] ARMREST (0109- )) |
| 93540-14010 | Clip, Headlining Retainer | Armrest & Visor ([09.2001 - ] ARMREST (0109- )) |
