Search › Model › ACV35

ACV35

Toyota CAMRY-VISTA-AURION · 2001 · 4,200 parts · 191 categories

4,200 items

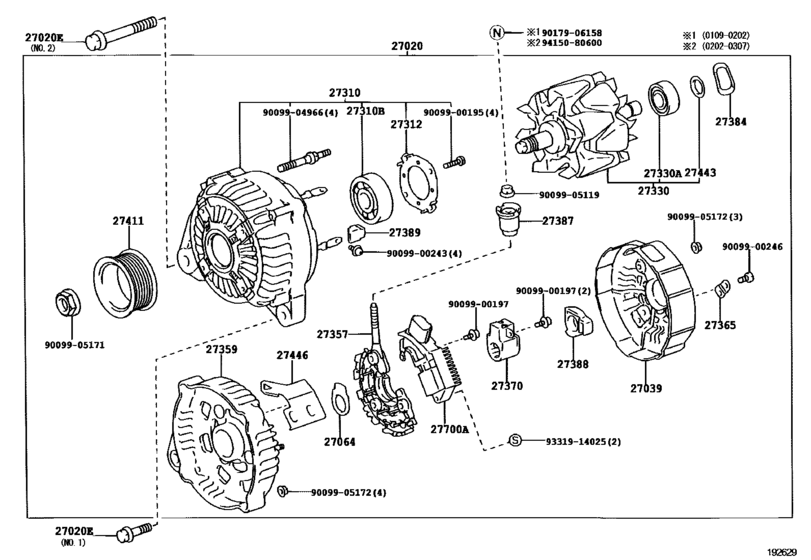

Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307)) 42

#	OEM	Part name
27020	27060-28080	Alternator Assy
27020	27060-28090	Alternator Assy
27020	27060-28270	Alternator Assy
27020	27060-28260	Alternator Assy
27020	91511-J0840	Bolt(For Alternator)
27020	91512-81085	Bolt(For Alternator)
27039	27039-20160	Cover, Alternator Rear End
27039	27039-27060	Cover, Alternator Rear End
27064	27064-42010	Seal, Alternator Plate
27310	27310-28050	Frame Assy, Drive End, Alternator
27310	27310-28120	Frame Assy, Drive End, Alternator
27310	90099-10142	Bearing(For Alternator Drive End Frame)
27310	90099-10219	Bearing(For Alternator Drive End Frame)
27312	27312-42010	Plate, Bearing Retainer, Alternator
27312	27312-72100	Plate, Bearing Retainer, Alternator
27330	27330-28050	Rotor Assy, Alternator
27330	27330-30070	Rotor Assy, Alternator
27330	90099-10140	Bearing(For Alternator Rotor)
27357	27357-70450	Holder, Alternator, W/rectifier
27359	27359-28060	Frame, Alternator Rectifier End
27365	27365-55080	Plate, Terminal
27370	27370-58460	Holder Assy, Alternator Brush
27370	27370-75060	Holder Assy, Alternator Brush
27384	27384-50030	Holder, Alternator Brush, A
27387	27387-42021	Insulator, Terminal
27388	27388-42010	Cover, Alternator Brush
27389	27389-42010	Insulator, Terminal
27411	27411-28060	Pulley, Alternator
27443	27443-63020	Cover, Alternator Bearing
27446	27446-28060	Clip, Alternator Cord
27700	27700-20050	Regulator Assy, Generator
9009900195	90099-00195	New Genuine Part
9009900197	90099-00197	Screw
9009900243	90099-00243	SCREW WWASHER
9009900246	90099-00246	New Genuine Part
9009904966	90099-04966	Bearing(for Alternator Rotor)
9009905119	90099-05119	New Genuine Part
9009905171	90099-05171	Nut(For Alternator Pulley)
9009905172	90099-05172	New Genuine Part
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9331914025	93319-14025	Screw W Washer
9415080600	94150-80600	NUT FLANGE

OEM	Part name	Category
27039-20160	Cover, Alternator Rear End	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27039-27060	Cover, Alternator Rear End	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27060-28080	Alternator Assy	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27060-28090	Alternator Assy	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27060-28260	Alternator Assy	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27060-28270	Alternator Assy	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27064-42010	Seal, Alternator Plate	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27310-28050	Frame Assy, Drive End, Alternator	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27310-28120	Frame Assy, Drive End, Alternator	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27312-42010	Plate, Bearing Retainer, Alternator	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27312-72100	Plate, Bearing Retainer, Alternator	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27330-28050	Rotor Assy, Alternator	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27330-30070	Rotor Assy, Alternator	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27357-70450	Holder, Alternator, W/rectifier	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27359-28060	Frame, Alternator Rectifier End	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27365-55080	Plate, Terminal	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27370-58460	Holder Assy, Alternator Brush	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27370-75060	Holder Assy, Alternator Brush	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27384-50030	Holder, Alternator Brush, A	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27387-42021	Insulator, Terminal	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27388-42010	Cover, Alternator Brush	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27389-42010	Insulator, Terminal	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27411-28060	Pulley, Alternator	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27443-63020	Cover, Alternator Bearing	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27446-28060	Clip, Alternator Cord	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
27700-20050	Regulator Assy, Generator	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
90099-00195	New Genuine Part	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
90099-00197	Screw	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
90099-00243	SCREW WWASHER	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
90099-00246	New Genuine Part	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
90099-04966	Bearing(for Alternator Rotor)	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
90099-05119	New Genuine Part	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
90099-05171	Nut(For Alternator Pulley)	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
90099-05172	New Genuine Part	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
90099-10140	Bearing(For Alternator Rotor)	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
90099-10142	Bearing(For Alternator Drive End Frame)	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
90099-10219	Bearing(For Alternator Drive End Frame)	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
91511-J0840	Bolt(For Alternator)	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
91512-81085	Bolt(For Alternator)	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
93319-14025	Screw W Washer	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
94150-80600	NUT FLANGE	Alternator ([09.2001 - 07.2003] 12V 100A (0109-0307))
