Search › Model › ACV31

ACV31

Toyota CAMRY-VISTA-AURION · 2001 · 3,816 parts · 211 categories

← Back to categories

3,816 items

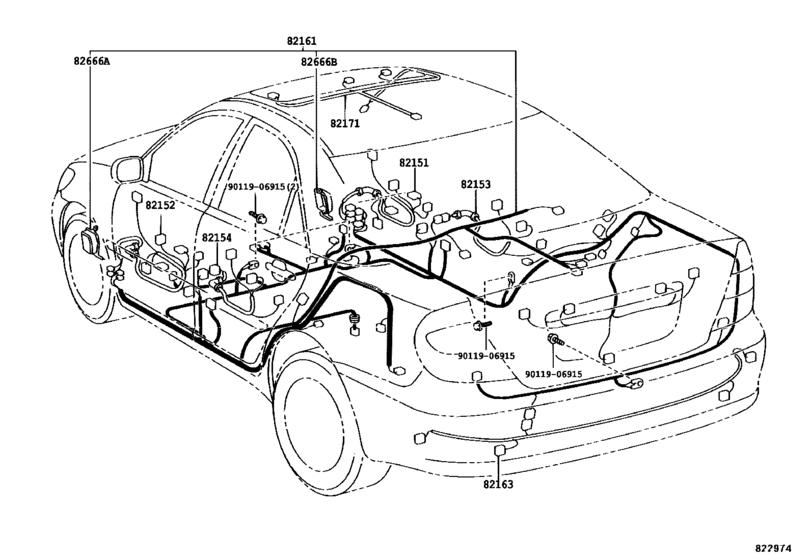

Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD) 19

#	OEM	Part name
82151	82151-06260	Wire, Front Door, Rh
82152	82152-06290	Wire, Front Door, Lh
82153	82153-06030	Wire, Rear Door, No.1
82153	82153-06050	Wire, Rear Door, No.1
82154	82154-06030	Wire, Rear Door, No.2
82154	82154-06050	Wire, Rear Door, No.2
82161	82161-06670	Wire, Floor
82161	82161-06690	Wire, Floor
82161	82161-06881	Wire, Floor
82161	82161-06630	Wire, Floor
82161	82161-06A31	Wire, Floor
82161	82161-06A50	Wire, Floor
82161	82161-06G40	Wire, Floor
82171	82171-06440	Wire, Roof, No.1
82171	82171-06610	Wire, Roof, No.1
82171	82171-06520	Wire, Roof, No.1
82666	82666-33250	Holder, Connector No.2
82666	82666-33260	Holder, Connector No.3
9011906915	90119-06915	BOLT W-WASHER

OEM	Part name	Category
82151-06260	Wire, Front Door, Rh	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82152-06290	Wire, Front Door, Lh	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82153-06030	Wire, Rear Door, No.1	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82153-06050	Wire, Rear Door, No.1	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82154-06030	Wire, Rear Door, No.2	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82154-06050	Wire, Rear Door, No.2	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82161-06630	Wire, Floor	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82161-06670	Wire, Floor	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82161-06690	Wire, Floor	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82161-06881	Wire, Floor	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82161-06A31	Wire, Floor	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82161-06A50	Wire, Floor	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82161-06G40	Wire, Floor	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82171-06440	Wire, Roof, No.1	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82171-06520	Wire, Roof, No.1	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82171-06610	Wire, Roof, No.1	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82666-33250	Holder, Connector No.2	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
82666-33260	Holder, Connector No.3	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)
90119-06915	BOLT W-WASHER	Wiring & Clamp ([03.2002 - ] DOOR,ROOF,FLOOR (0203- )RHD)

Source: Public OEM parts-catalog data
Variants: 2 / 9
Category: 211
Collected: 2026-08-02
