Search › Model › ACV31

ACV31

Toyota CAMRY-VISTA-AURION · 2001 · 3,816 parts · 211 categories

← Back to categories

3,816 items

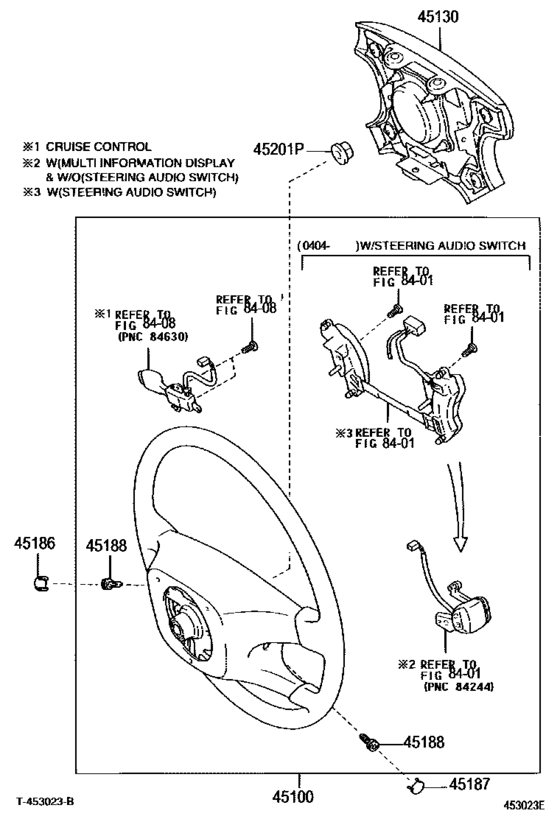

Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH) 16

#	OEM	Part name
45100	45100-06540-E1	Wheel Assy, Steering
45100	45100-06850-E0	Wheel Assy, Steering
45100	45100-06851-E0	Wheel Assy, Steering
45100	45100-06490-E1	Wheel Assy, Steering
45100	45100-06870-E0	Wheel Assy, Steering
45100	45100-06871-E0	Wheel Assy, Steering
45100	45100-06B20-E0	Wheel Assy, Steering
45130	45130-02150-E0	Button Assy, Horn
45130	45130-06180-E0	Button Assy, Horn
45130	45130-06210-E0	Button Assy, Horn
45186	45186-06100-E0	Cover, Steering Wheel, Lower No.2
45186	45186-33050-E3	Cover, Steering Wheel, Lower No.2
45186	45186-06090-E0	Cover, Steering Wheel, Lower No.2
45187	45187-06050-E0	Cover, Steering Wheel, Lower No.3
45188	45188-60010	Screw, Steering Wheel Pad Attaching
45201	90179-12071	Nut, Steering Wheel Set

OEM	Part name	Category
45100-06490-E1	Wheel Assy, Steering	Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH)
45100-06540-E1	Wheel Assy, Steering	Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH)
45100-06850-E0	Wheel Assy, Steering	Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH)
45100-06851-E0	Wheel Assy, Steering	Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH)
45100-06870-E0	Wheel Assy, Steering	Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH)
45100-06871-E0	Wheel Assy, Steering	Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH)
45100-06B20-E0	Wheel Assy, Steering	Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH)
45130-02150-E0	Button Assy, Horn	Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH)
45130-06180-E0	Button Assy, Horn	Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH)
45130-06210-E0	Button Assy, Horn	Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH)
45186-06090-E0	Cover, Steering Wheel, Lower No.2	Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH)
45186-06100-E0	Cover, Steering Wheel, Lower No.2	Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH)
45186-33050-E3	Cover, Steering Wheel, Lower No.2	Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH)
45187-06050-E0	Cover, Steering Wheel, Lower No.3	Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH)
45188-60010	Screw, Steering Wheel Pad Attaching	Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH)
90179-12071	Nut, Steering Wheel Set	Steering Wheel ([03.2002 - ] 4-SPOKE,W(SRS AIR BAG) (0203- )20G..TAIW ; (0203- )ACV30,MCV30 ; (0203- )ACV31..MA,PHL,TH)

Source: Public OEM parts-catalog data
Variants: 2 / 9
Category: 211
Collected: 2026-08-02
