Search › Model › ACV31
ACV31

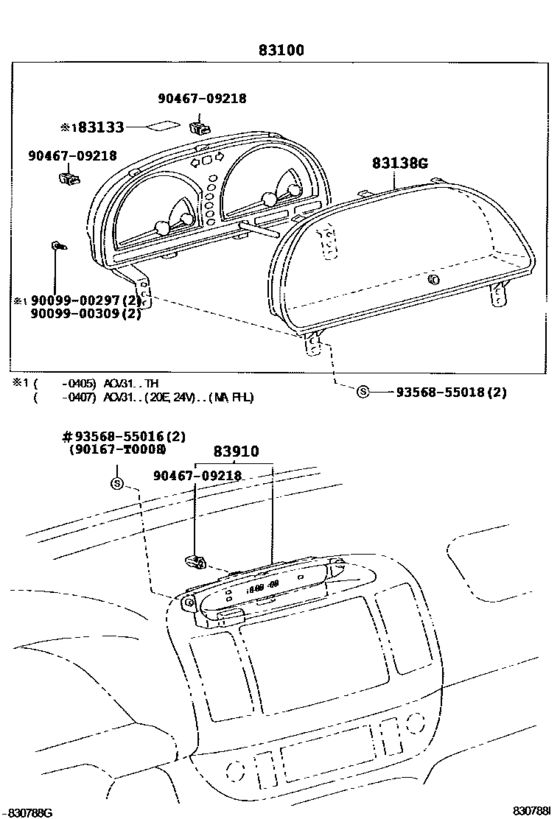

Meter ([03.2002 - ] (0203- )) 14
| # | OEM | Part name |
|---|---|---|
| 83100 | 83800-06760 | Meter Assy, Combination |
| 83100 | 83800-06F00 | Meter Assy, Combination |
| 83100 | 83800-06A40 | Meter Assy, Combination |
| 83133 | 83811-0W240 | Plate, Combination Meter, No.1 |
| 83138 | 83852-06760 | Glass, Combination Meter |
| 83138 | 83852-06780 | Glass, Combination Meter |
| 83910 | 83910-06030 | Clock Assy |
| 83910 | 83910-06040 | Clock Assy |
| 90167 | 90167-T0008 | New Genuine Part |
| 9009900297 | 90099-00297 | New Genuine Part |
| 9009900309 | 90099-00309 | New Genuine Part |
| 9046709218 | 90467-09218 | CLIP |
| 9356855016 | 93568-55016 | Screw |
| 9356855018 | 93568-55018 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 83800-06760 | Meter Assy, Combination | Meter ([03.2002 - ] (0203- )) |
| 83800-06A40 | Meter Assy, Combination | Meter ([03.2002 - ] (0203- )) |
| 83800-06F00 | Meter Assy, Combination | Meter ([03.2002 - ] (0203- )) |
| 83811-0W240 | Plate, Combination Meter, No.1 | Meter ([03.2002 - ] (0203- )) |
| 83852-06760 | Glass, Combination Meter | Meter ([03.2002 - ] (0203- )) |
| 83852-06780 | Glass, Combination Meter | Meter ([03.2002 - ] (0203- )) |
| 83910-06030 | Clock Assy | Meter ([03.2002 - ] (0203- )) |
| 83910-06040 | Clock Assy | Meter ([03.2002 - ] (0203- )) |
| 90099-00297 | New Genuine Part | Meter ([03.2002 - ] (0203- )) |
| 90099-00309 | New Genuine Part | Meter ([03.2002 - ] (0203- )) |
| 90167-T0008 | New Genuine Part | Meter ([03.2002 - ] (0203- )) |
| 90467-09218 | CLIP | Meter ([03.2002 - ] (0203- )) |
| 93568-55016 | Screw | Meter ([03.2002 - ] (0203- )) |
| 93568-55018 | SCREW | Meter ([03.2002 - ] (0203- )) |
