Search › Model › ACV31

ACV31

Toyota CAMRY-VISTA-AURION · 2001 · 3,816 parts · 211 categories

3,816 items

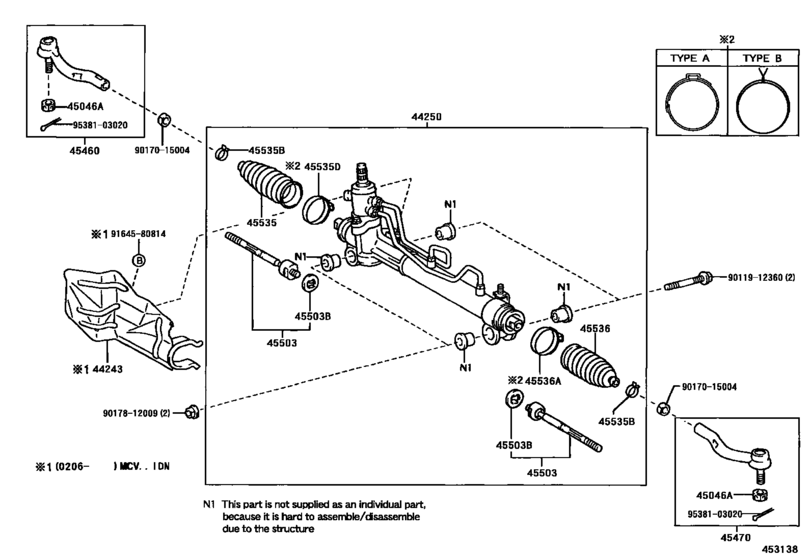

Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC) 29

#	OEM	Part name
44250	44250-06190	Gear Assy, Power Steering(For Rack & Pinion)
44250	44250-06191	Gear Assy, Power Steering(For Rack & Pinion)
44250	44250-33360	Gear Assy, Power Steering(For Rack & Pinion)
44250	44250-33381	Gear Assy, Power Steering(For Rack & Pinion)
44250	44250-06201	Gear Assy, Power Steering(For Rack & Pinion)
45046	90171-12028	Nut, Castle(For Pitman Arm)
45460	45460-09070	Rod Assy, Tie, Rh
45460	45460-39615	Rod Assy, Tie, Rh
45460	45460-39635	Rod Assy, Tie, Rh
45470	45470-09050	Rod Assy, Tie, Lh
45470	45470-39215	Rod Assy, Tie, Lh
45470	45470-39225	Rod Assy, Tie, Lh
45503	45503-09280	End Sub-Assy, Steering Rack
45503	45503-39225	End Sub-Assy, Steering Rack
45503	90080-21019	Washer, Claw(For Steering Rack End)
45503	90214-14009	Washer, Claw(For Steering Rack End)
45535	45535-06030	Boot, Steering Rack, No.1
45535	45535-06040	Boot, Steering Rack, No.1
45535	45535-33030	Boot, Steering Rack, No.1
45535	90080-46153	Clip(For Steering Rack Boot)
45535	90467-19021	Clamp Or Clip, Hose(For Water By-Pass Hose)
45535	90080-46293	Clamp(For Steering Rack Boot No.1)
45535	90080-58059	Clamp(For Steering Rack Boot No.1)
45535	90460-58007	Clamp(For Steering Rack Boot No.1)
9011912360	90119-12360	BOLT WWASHER
9017015004	90170-15004	Nut, Rack End Lock
9017812009	90178-12009	Nut(For Suspension Lower Arm Shaft)
9164580814	91645-80814	New Genuine Part
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
44250-06190	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
44250-06191	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
44250-06201	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
44250-33360	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
44250-33381	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
45460-09070	Rod Assy, Tie, Rh	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
45460-39615	Rod Assy, Tie, Rh	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
45460-39635	Rod Assy, Tie, Rh	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
45470-09050	Rod Assy, Tie, Lh	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
45470-39215	Rod Assy, Tie, Lh	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
45470-39225	Rod Assy, Tie, Lh	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
45503-09280	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
45503-39225	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
45535-06030	Boot, Steering Rack, No.1	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
45535-06040	Boot, Steering Rack, No.1	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
45535-33030	Boot, Steering Rack, No.1	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
90080-21019	Washer, Claw(For Steering Rack End)	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
90080-46153	Clip(For Steering Rack Boot)	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
90080-46293	Clamp(For Steering Rack Boot No.1)	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
90080-58059	Clamp(For Steering Rack Boot No.1)	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
90119-12360	BOLT WWASHER	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
90170-15004	Nut, Rack End Lock	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
90171-12028	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
90178-12009	Nut(For Suspension Lower Arm Shaft)	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
90214-14009	Washer, Claw(For Steering Rack End)	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
90460-58007	Clamp(For Steering Rack Boot No.1)	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
90467-19021	Clamp Or Clip, Hose(For Water By-Pass Hose)	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
91645-80814	New Genuine Part	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Front Steering Gear & Link ([03.2002 - ] (J) (0203- )IDN..5F ; (0203- )MCV30..IDN ; (02 03- )ACV3#..RHD..4FC)
