ACV31

Toyota CAMRY-VISTA-AURION · 2001 · 3,816 parts · 211 categories

3,816 items

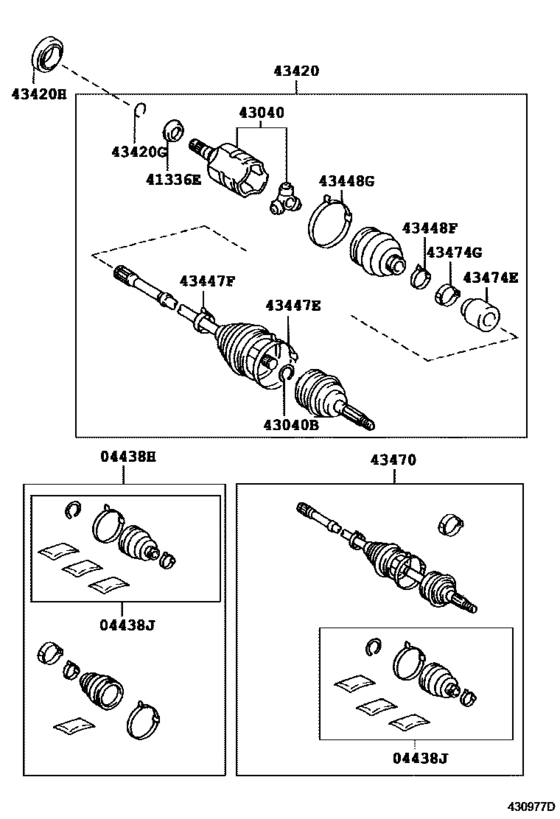

Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC) 22

#	OEM	Part name
4438	04438-06120	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-06410	Boot Kit, Front Drive Shaft, In & Outboard, Lh
4438	04438-07010	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04438-06400	Boot Kit, Front Drive Shaft Inboard Joint, Rh - FRONT DRIVE SHAFT INBOARD JOINT, LH
41336	41336-06060	Cover, Front Drive Shaft Dust, Lh
43040	43040-06080	Joint Assy, Front Drive Inboard, Lh
43040	90080-52118	Ring, Hole Snap (For Front Drive Inboard Joint Rh)
43420	43420-06360	Shaft Assy, Front Drive, Lh
43420	90080-52017	Ring, Hole Snap (For Front Drive Shaft Lh)
43420	90311-50028	Oil Seal, Front Drive Shaft, Lh
43420	90311-50045	Oil Seal, Front Drive Shaft, Lh
43420	90311-50033	Oil Seal, Front Drive Shaft, Lh
43420	90311-50064	SEAL TYPE T OIL
43420	43420-06330	Shaft Assy, Front Drive, Lh
43447	42345-06090	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-06040	Clamp (For Front Axle Outboard Joint Boot Rh)
43448	42345-07020	Clamp (For Front Axle Inboard Joint Boot Rh)
43448	42345-07010	Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)
43470	43470-09810	Shaft Assy, Front Drive Outboard Joint, Rh
43474	43474-28010	Damper, Drive Shaft
43474	43474-28030	Damper, Front Drive Shaft, Rh
43474	42345-06100	Clamp (For Front Drive Shaft Damper Rh)

OEM	Part name	Category
04438-06120	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
04438-06400	Boot Kit, Front Drive Shaft Inboard Joint, Rh - FRONT DRIVE SHAFT INBOARD JOINT, LH	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
04438-06410	Boot Kit, Front Drive Shaft, In & Outboard, Lh	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
04438-07010	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
41336-06060	Cover, Front Drive Shaft Dust, Lh	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
42345-06040	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
42345-06090	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
42345-06100	Clamp (For Front Drive Shaft Damper Rh)	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
42345-07010	Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
42345-07020	Clamp (For Front Axle Inboard Joint Boot Rh)	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
43040-06080	Joint Assy, Front Drive Inboard, Lh	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
43420-06330	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
43420-06360	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
43470-09810	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
43474-28010	Damper, Drive Shaft	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
43474-28030	Damper, Front Drive Shaft, Rh	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
90080-52017	Ring, Hole Snap (For Front Drive Shaft Lh)	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
90080-52118	Ring, Hole Snap (For Front Drive Inboard Joint Rh)	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
90311-50028	Oil Seal, Front Drive Shaft, Lh	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
90311-50033	Oil Seal, Front Drive Shaft, Lh	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
90311-50045	Oil Seal, Front Drive Shaft, Lh	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
90311-50064	SEAL TYPE T OIL	Front Drive Shaft ([03.2002 - ] LH (0203- )ACV3#..MA,TH..4FC)
