Search › Model › ACV31

ACV31

Toyota CAMRY-VISTA-AURION · 2001 · 3,816 parts · 211 categories

3,816 items

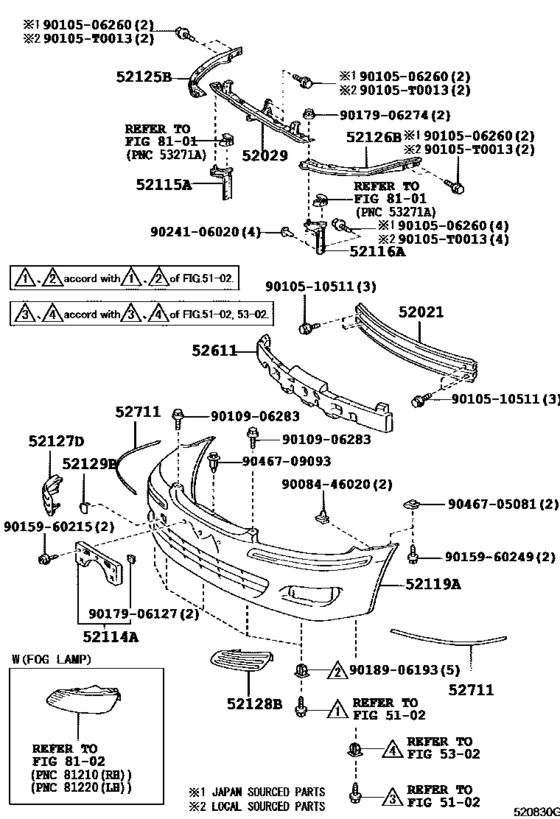

Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN) 37

#	OEM	Part name
52021	52021-06020	Reinforcement Sub-Assy, Front Bumper
52029	52029-06020	Reinforcement Sub-Assy, Front Bumper, Upper
52029	52029-06030	Reinforcement Sub-Assy, Front Bumper, Upper
52114	52114-33150	Bracket, Front Bumper Extention Mounting
52115	52115-06020	Support, Front Bumper Side, Rh
52115	52115-06030	Support, Front Bumper Side, Rh
52116	52116-06020	Support, Front Bumper Side, Lh
52116	52116-06030	Support, Front Bumper Side, Lh
52119	52119-06902	Cover, Front Bumper
52119	52119-06912	Cover, Front Bumper
52125	52125-06030	Extension, Front Bumper Reinforcement, Rh - FRONT BUMBER REINFORCEMENT, RH
52125	52125-06040	Extension, Front Bumper Reinforcement, Rh - FRONT BUMBER REINFORCEMENT, RH
52126	52126-06030	Extension, Front Bumper Reinforcement, Lh - FRONT BUMBER REINFORCEMENT, LH
52126	52126-06040	Extension, Front Bumper Reinforcement, Lh - FRONT BUMBER REINFORCEMENT, LH
52127	52127-06901	Cover, Front Bumper Hole, Rh
52127	52127-06902	Cover, Front Bumper Hole, Rh
52128	52128-06901	Cover, Front Bumper Hole, Lh
52128	52128-06902	Cover, Front Bumper Hole, Lh
52129	52129-06900	Cover, Front Bumper, Lower
52129	52129-06901	Cover, Front Bumper, Lower
52611	52611-06030	Absorber, Front Bumper Energy
52611	52611-06040	Absorber, Front Bumper Energy
52711	52711-06030	Moulding, Front Bumper
90105	90105-T0013	BOLT WASHER BASED H
9008446020	90084-46020	CLIP
9010506260	90105-06260	BOLT, WASHER BASED
9010510511	90105-10511	BOLT FLANGE
9010906283	90109-06283	Bolt, Body Mounting
9015960215	90159-60215	SCREW
9015960249	90159-60249	SCREW WWASHER TAPP
9017906127	90179-06127	Bracket, Front Licence Plate Mounting
9017906274	90179-06274	Nut
9018906193	90189-06193	Grommet(For Engine Under Cover)
9024106020	90241-06020	PIN WHEAD
9046705081	90467-05081	COLLAR
9046705081	90467-A0018	CLIP
9046709093	90467-09093	Piece, Rear Bumper

OEM	Part name	Category
52021-06020	Reinforcement Sub-Assy, Front Bumper	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52029-06020	Reinforcement Sub-Assy, Front Bumper, Upper	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52029-06030	Reinforcement Sub-Assy, Front Bumper, Upper	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52114-33150	Bracket, Front Bumper Extention Mounting	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52115-06020	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52115-06030	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52116-06020	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52116-06030	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52119-06902	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52119-06912	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52125-06030	Extension, Front Bumper Reinforcement, Rh - FRONT BUMBER REINFORCEMENT, RH	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52125-06040	Extension, Front Bumper Reinforcement, Rh - FRONT BUMBER REINFORCEMENT, RH	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52126-06030	Extension, Front Bumper Reinforcement, Lh - FRONT BUMBER REINFORCEMENT, LH	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52126-06040	Extension, Front Bumper Reinforcement, Lh - FRONT BUMBER REINFORCEMENT, LH	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52127-06901	Cover, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52127-06902	Cover, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52128-06901	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52128-06902	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52129-06900	Cover, Front Bumper, Lower	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52129-06901	Cover, Front Bumper, Lower	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52611-06030	Absorber, Front Bumper Energy	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52611-06040	Absorber, Front Bumper Energy	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
52711-06030	Moulding, Front Bumper	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
90084-46020	CLIP	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
90105-06260	BOLT, WASHER BASED	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
90105-10511	BOLT FLANGE	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
90105-T0013	BOLT WASHER BASED H	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
90109-06283	Bolt, Body Mounting	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
90159-60215	SCREW	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
90159-60249	SCREW WWASHER TAPP	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
90179-06127	Bracket, Front Licence Plate Mounting	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
90179-06274	Nut	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
90189-06193	Grommet(For Engine Under Cover)	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
90241-06020	PIN WHEAD	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
90467-05081	COLLAR	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
90467-09093	Piece, Rear Bumper	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
90467-A0018	CLIP	Front Bumper & Bumper Stay ([03.2002 - 05.2004] (0203-0404)TAIW ; (0203-0405)IDN,MA,PHL,TH,VN ; (0405-0407)MA,PHL,VN)
