ACV31

Toyota CAMRY-VISTA-AURION · 2001 · 3,816 parts · 211 categories

← Back to categories

3,816 items

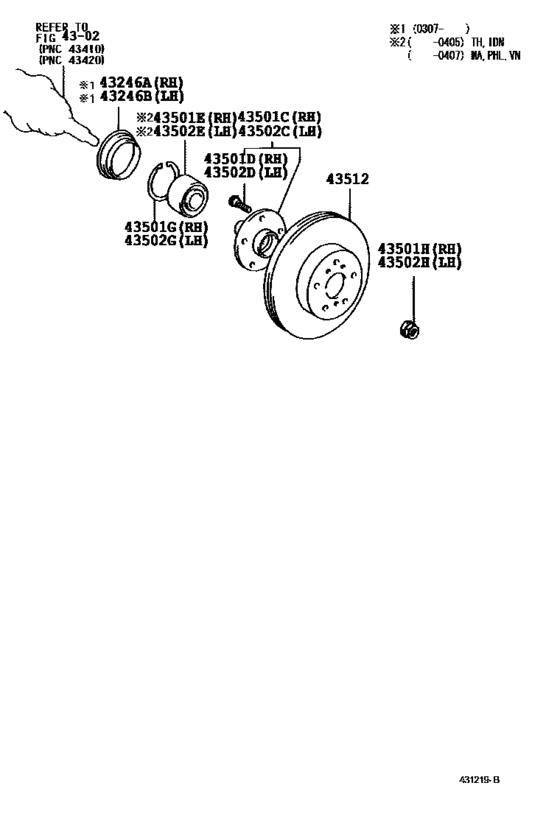

Front Axle Hub ([03.2002 - ] (0203- )) 17

#	OEM	Part name
43246	43246-28020	Deflector, Front Wheel Bearing Dust, No.1 Rh
43501	43502-28090	Hub Sub-Assy, Front Axle
43501	43502-33020	Hub Sub-Assy, Front Axle, Rh
43501	43502-42020	Hub Sub-Assy, Front Axle, Rh
43501	90942-02049	Bolt, Hub
43501	90942-02082	Bolt, Hub
43501	90080-36177	Bearing (For Front Axle Hub Rh)
43501	90369-43008	Bearing (For Rear Axle Shaft Rh)
43501	90369-45005	Bearing (For Front Axle Hub Rh)
43501	90369-T0004	Bearing (For Front Axle Hub Rh)
43501	90369-T0007	Bearing (For Front Axle Hub Rh)
43501	90520-77001	Ring, Snap
43501	90521-88001	Ring, Snap (For Rear Axle Shaft)
43501	90177-22001	Nut (For Axle Shaft)
43512	43512-33090	Disc, Front
43512	43512-44011	Disc, Front
43512	43512-06060	Disc, Front

OEM	Part name	Category
43246-28020	Deflector, Front Wheel Bearing Dust, No.1 Rh	Front Axle Hub ([03.2002 - ] (0203- ))
43502-28090	Hub Sub-Assy, Front Axle	Front Axle Hub ([03.2002 - ] (0203- ))
43502-33020	Hub Sub-Assy, Front Axle, Rh	Front Axle Hub ([03.2002 - ] (0203- ))
43502-42020	Hub Sub-Assy, Front Axle, Rh	Front Axle Hub ([03.2002 - ] (0203- ))
43512-06060	Disc, Front	Front Axle Hub ([03.2002 - ] (0203- ))
43512-33090	Disc, Front	Front Axle Hub ([03.2002 - ] (0203- ))
43512-44011	Disc, Front	Front Axle Hub ([03.2002 - ] (0203- ))
90080-36177	Bearing (For Front Axle Hub Rh)	Front Axle Hub ([03.2002 - ] (0203- ))
90177-22001	Nut (For Axle Shaft)	Front Axle Hub ([03.2002 - ] (0203- ))
90369-43008	Bearing (For Rear Axle Shaft Rh)	Front Axle Hub ([03.2002 - ] (0203- ))
90369-45005	Bearing (For Front Axle Hub Rh)	Front Axle Hub ([03.2002 - ] (0203- ))
90369-T0004	Bearing (For Front Axle Hub Rh)	Front Axle Hub ([03.2002 - ] (0203- ))
90369-T0007	Bearing (For Front Axle Hub Rh)	Front Axle Hub ([03.2002 - ] (0203- ))
90520-77001	Ring, Snap	Front Axle Hub ([03.2002 - ] (0203- ))
90521-88001	Ring, Snap (For Rear Axle Shaft)	Front Axle Hub ([03.2002 - ] (0203- ))
90942-02049	Bolt, Hub	Front Axle Hub ([03.2002 - ] (0203- ))
90942-02082	Bolt, Hub	Front Axle Hub ([03.2002 - ] (0203- ))

Source: Public OEM parts-catalog data
Variants: 2 / 9
Category: 211
