Search › Model › ACV31

ACV31

Toyota CAMRY-VISTA-AURION · 2001 · 3,816 parts · 211 categories

3,816 items

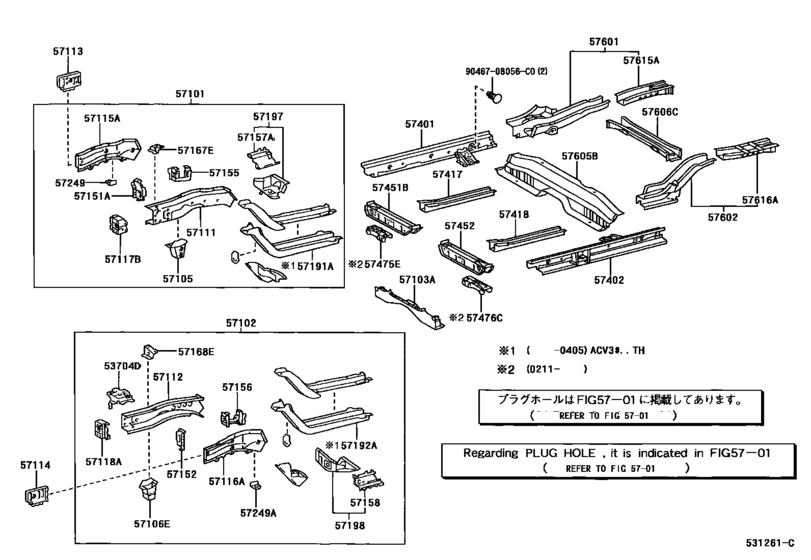

Floor Side Member ([03.2002 - ] (0203- )) 53

#	OEM	Part name
53704	53704-33020	Support Sub-Assy, Battery, Lh
57101	57101-06070	Member Sub-Assy, Front Side, Rh
57101	57016-06120	Reinforcement Sub-Assy, Front Side Member, Rh
57101	57027-06061	Member Sub-Assy, Front Side, Inner Rh
57101	57025-06030	Plate, Front Side Member, Outer Rh
57101	90333-30008	PLUG PLATE
57102	57102-06070	Member Sub-Assy, Front Side, Lh
57103	57103-33030	Crossmenber Sub-Assy, Floor, No.3
57103	57103-33052	Crossmenber Sub-Assy, Floor, No.3
57103	57103-33051	Crossmenber Sub-Assy, Floor, No.3
57105	57105-28120	Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh
57106	57106-28120	Plate Sub-Assy, Front Side Member, Lh
57111	57111-33020	Member, Front Side, Rh
57111	57111-33021	Member, Front Side, Rh
57112	57112-33030	Member, Front Side, Lh
57112	57112-33031	Member, Front Side, Lh
57113	57107-33050	Extension, Front Side Member, Rh
57114	57114-33060	Extension, Front Side Member, Lh
57115	57115-33030	Plate, Front Side Member, Outer Rh
57116	57116-33020	Plate, Front Side Member, Outer Lh
57117	57117-06050	Reinforcement, Front Bumper Mounting, Rh
57118	57118-06050	Reinforcement, Front Bumper Mounting, Lh
57151	57151-33020	Reinforcement, Front Side Member, No.1 Rh
57152	57152-33030	Reinforcement, Front Side Member, No.1 Lh
57155	57155-33030	Reinforcement, Front Side Member, No.3, Rh
57156	57156-33030	Reinforcement, Front Side Member, No.3, Lh
57157	57157-06050	Reinforcement, Front Side Member, No.4 Rh
57158	57158-06050	Reinforcement, Front Side Member, No.4 Lh
57167	57167-33020	Gusset, Front Crossmember Side, Rh
57168	57168-33020	Gusset, Front Crossmember Side, Lh
57191	57191-33010	Member, Front Side, Inner Rear Rh
57192	57192-33010	Member, Front Side, Inner Rear Lh
57197	57077-06050	Box, Torque, Front Rh
57198	57078-06050	Box, Torque, Front Lh
57249	57249-10040	Bracket, Front Side Member, Rh
57401	57401-06100	Member Sub-Assy, Main Floor Side, Rh
57402	57402-06100	Member Sub-Assy, Main Floor Side, Lh
57417	57419-33040	Reinforcement, Front Floor Under, Rh
57451	57451-06080	Member, Front Floor Cross, Rh
57451	57451-33050	Member, Front Floor Cross, Rh
57451	57451-33051	Member, Front Floor Cross, Rh
57452	57452-06030	Member, Front Floor Cross, Lh
57452	57452-33020	Member, Front Floor Cross, Lh
57452	57452-33021	Member, Front Floor Cross, Lh
57475	57475-33010	Plate, Front Floor Crossmember, Rh
57476	57476-33010	Plate, Front Floor Crossmember, Lh
57601	57601-06160	Member Sub-Assy, Rear Floor Side, Rh
57602	57602-06100	Member Sub-Assy, Rear Floor Side, Lh
57605	57605-33060	Member Sub-Assy, Rear Floor Cross, No.1
57606	57606-33090	Member Sub-Assy, Rear Floor Cross, No.2
57615	57615-06903	Member, Rear Floor Side, Rear Rh
57616	57616-06904	Member, Rear Floor Side, Rear Lh
9046708056	90467-08056-C0	Clip

OEM	Part name	Category
53704-33020	Support Sub-Assy, Battery, Lh	Floor Side Member ([03.2002 - ] (0203- ))
57016-06120	Reinforcement Sub-Assy, Front Side Member, Rh	Floor Side Member ([03.2002 - ] (0203- ))
57025-06030	Plate, Front Side Member, Outer Rh	Floor Side Member ([03.2002 - ] (0203- ))
57027-06061	Member Sub-Assy, Front Side, Inner Rh	Floor Side Member ([03.2002 - ] (0203- ))
57077-06050	Box, Torque, Front Rh	Floor Side Member ([03.2002 - ] (0203- ))
57078-06050	Box, Torque, Front Lh	Floor Side Member ([03.2002 - ] (0203- ))
57101-06070	Member Sub-Assy, Front Side, Rh	Floor Side Member ([03.2002 - ] (0203- ))
57102-06070	Member Sub-Assy, Front Side, Lh	Floor Side Member ([03.2002 - ] (0203- ))
57103-33030	Crossmenber Sub-Assy, Floor, No.3	Floor Side Member ([03.2002 - ] (0203- ))
57103-33051	Crossmenber Sub-Assy, Floor, No.3	Floor Side Member ([03.2002 - ] (0203- ))
57103-33052	Crossmenber Sub-Assy, Floor, No.3	Floor Side Member ([03.2002 - ] (0203- ))
57105-28120	Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh	Floor Side Member ([03.2002 - ] (0203- ))
57106-28120	Plate Sub-Assy, Front Side Member, Lh	Floor Side Member ([03.2002 - ] (0203- ))
57107-33050	Extension, Front Side Member, Rh	Floor Side Member ([03.2002 - ] (0203- ))
57111-33020	Member, Front Side, Rh	Floor Side Member ([03.2002 - ] (0203- ))
57111-33021	Member, Front Side, Rh	Floor Side Member ([03.2002 - ] (0203- ))
57112-33030	Member, Front Side, Lh	Floor Side Member ([03.2002 - ] (0203- ))
57112-33031	Member, Front Side, Lh	Floor Side Member ([03.2002 - ] (0203- ))
57114-33060	Extension, Front Side Member, Lh	Floor Side Member ([03.2002 - ] (0203- ))
57115-33030	Plate, Front Side Member, Outer Rh	Floor Side Member ([03.2002 - ] (0203- ))
57116-33020	Plate, Front Side Member, Outer Lh	Floor Side Member ([03.2002 - ] (0203- ))
57117-06050	Reinforcement, Front Bumper Mounting, Rh	Floor Side Member ([03.2002 - ] (0203- ))
57118-06050	Reinforcement, Front Bumper Mounting, Lh	Floor Side Member ([03.2002 - ] (0203- ))
57151-33020	Reinforcement, Front Side Member, No.1 Rh	Floor Side Member ([03.2002 - ] (0203- ))
57152-33030	Reinforcement, Front Side Member, No.1 Lh	Floor Side Member ([03.2002 - ] (0203- ))
57155-33030	Reinforcement, Front Side Member, No.3, Rh	Floor Side Member ([03.2002 - ] (0203- ))
57156-33030	Reinforcement, Front Side Member, No.3, Lh	Floor Side Member ([03.2002 - ] (0203- ))
57157-06050	Reinforcement, Front Side Member, No.4 Rh	Floor Side Member ([03.2002 - ] (0203- ))
57158-06050	Reinforcement, Front Side Member, No.4 Lh	Floor Side Member ([03.2002 - ] (0203- ))
57167-33020	Gusset, Front Crossmember Side, Rh	Floor Side Member ([03.2002 - ] (0203- ))
57168-33020	Gusset, Front Crossmember Side, Lh	Floor Side Member ([03.2002 - ] (0203- ))
57191-33010	Member, Front Side, Inner Rear Rh	Floor Side Member ([03.2002 - ] (0203- ))
57192-33010	Member, Front Side, Inner Rear Lh	Floor Side Member ([03.2002 - ] (0203- ))
57249-10040	Bracket, Front Side Member, Rh	Floor Side Member ([03.2002 - ] (0203- ))
57401-06100	Member Sub-Assy, Main Floor Side, Rh	Floor Side Member ([03.2002 - ] (0203- ))
57402-06100	Member Sub-Assy, Main Floor Side, Lh	Floor Side Member ([03.2002 - ] (0203- ))
57419-33040	Reinforcement, Front Floor Under, Rh	Floor Side Member ([03.2002 - ] (0203- ))
57451-06080	Member, Front Floor Cross, Rh	Floor Side Member ([03.2002 - ] (0203- ))
57451-33050	Member, Front Floor Cross, Rh	Floor Side Member ([03.2002 - ] (0203- ))
57451-33051	Member, Front Floor Cross, Rh	Floor Side Member ([03.2002 - ] (0203- ))
57452-06030	Member, Front Floor Cross, Lh	Floor Side Member ([03.2002 - ] (0203- ))
57452-33020	Member, Front Floor Cross, Lh	Floor Side Member ([03.2002 - ] (0203- ))
57452-33021	Member, Front Floor Cross, Lh	Floor Side Member ([03.2002 - ] (0203- ))
57475-33010	Plate, Front Floor Crossmember, Rh	Floor Side Member ([03.2002 - ] (0203- ))
57476-33010	Plate, Front Floor Crossmember, Lh	Floor Side Member ([03.2002 - ] (0203- ))
57601-06160	Member Sub-Assy, Rear Floor Side, Rh	Floor Side Member ([03.2002 - ] (0203- ))
57602-06100	Member Sub-Assy, Rear Floor Side, Lh	Floor Side Member ([03.2002 - ] (0203- ))
57605-33060	Member Sub-Assy, Rear Floor Cross, No.1	Floor Side Member ([03.2002 - ] (0203- ))
57606-33090	Member Sub-Assy, Rear Floor Cross, No.2	Floor Side Member ([03.2002 - ] (0203- ))
57615-06903	Member, Rear Floor Side, Rear Rh	Floor Side Member ([03.2002 - ] (0203- ))
57616-06904	Member, Rear Floor Side, Rear Lh	Floor Side Member ([03.2002 - ] (0203- ))
90333-30008	PLUG PLATE	Floor Side Member ([03.2002 - ] (0203- ))
90467-08056-C0	Clip	Floor Side Member ([03.2002 - ] (0203- ))
