Search › Model › ACV31

ACV31

Toyota CAMRY-VISTA-AURION · 2001 · 3,816 parts · 211 categories

3,816 items

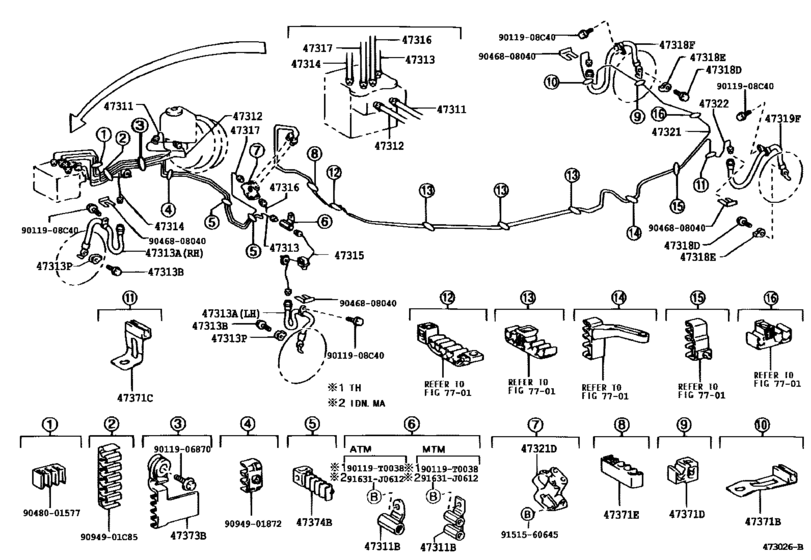

Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G) 33

#	OEM	Part name
47311	47311-33080	Tube, Front Brake, No.1
47311	90412-10213	Way(For Front Brake Tube)
47312	47312-33100	Tube, Front Brake, No.2
47313	47313-33100	Tube, Front Brake, No.3
47313	90080-94147	Hose, Flexible, No.1(For Front)
47313	90080-94150	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-33070	Tube, Front Brake, No.4
47315	47315-33170	Tube, Front Brake, No.5
47316	47316-33200	Tube, Front Brake, No.6
47317	47317-33190	Tube, Front Brake, No.7
47318	90080-94141	Hose, Flexible(For Rear Rh)
47319	90080-94144	Hose, Flexible(For Rear Lh)
47321	47321-33130	Tube, Rear Brake, No.1
47321	90412-10140	Valve Assy, Proportioning
47322	47322-33100	Tube, Rear Brake, No.2
47371	47371-32130	Clamp, Brake Tube, No.6
47371	47371-32140	Clamp, Brake Tube, No.7
47371	90949-01B45	Clamp(For Clutch Master Cylinder Tube)
47371	90949-01C53	Clamp, Brake Tube, No.9
47373	90949-01C55	Clamp, Brake Tube, No.3
47374	90949-01C56	Clamp, Brake Tube, No.2
90119	90119-T0038	BOLT WWASHER
91631	91631-J0612	BRACKET
9011908	90119-08C40	New Genuine Part
9094901	90949-01C85	Clamp, Brake Tube, No.2
9094901	90080-46366	Clamp, Brake Tube, No.2
9011906870	90119-06870	BOLT WWASHER
9046808040	90468-08040	CLIP
9048001577	90480-01577	GROMMET
9094901872	90949-01872	Clamp, Brake Tube, No.19
9151560645	91515-60645	New Genuine Part

OEM	Part name	Category
47311-33080	Tube, Front Brake, No.1	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
47312-33100	Tube, Front Brake, No.2	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
47313-33100	Tube, Front Brake, No.3	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
47314-33070	Tube, Front Brake, No.4	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
47315-33170	Tube, Front Brake, No.5	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
47316-33200	Tube, Front Brake, No.6	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
47317-33190	Tube, Front Brake, No.7	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
47321-33130	Tube, Rear Brake, No.1	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
47322-33100	Tube, Rear Brake, No.2	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
47371-32130	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
47371-32140	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90080-46366	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90080-94141	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90080-94144	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90080-94147	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90080-94150	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90119-06870	BOLT WWASHER	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90119-08C40	New Genuine Part	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90119-T0038	BOLT WWASHER	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90412-10140	Valve Assy, Proportioning	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90412-10213	Way(For Front Brake Tube)	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90468-08040	CLIP	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90480-01577	GROMMET	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90949-01872	Clamp, Brake Tube, No.19	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90949-01B45	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90949-01C53	Clamp, Brake Tube, No.9	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90949-01C55	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90949-01C56	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
90949-01C85	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
91515-60645	New Genuine Part	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
91631-J0612	BRACKET	Brake Tube & Clamp ([03.2002 - ] (0203- )RHD..20E,24G)
