ACV31

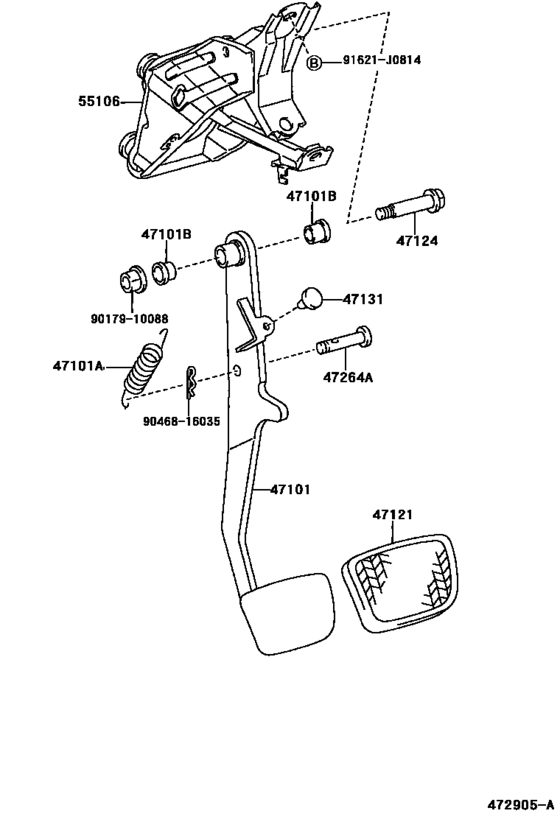

Brake Pedal & Bracket ([03.2002 - ] (0203- )) 11
| # | OEM | Part name |
|---|---|---|
| 47101 | 47101-33090 | Pedal Sub-Assy, Brake |
| 47101 | 90507-14051 | Spring(For Clutch Pedal) |
| 47101 | 90386-13015 | Bush(For Clutch Pedal) |
| 47121 | 47121-50020 | Pad, Brake Pedal |
| 47124 | 90109-10167 | Shaft, Clutch Pedal |
| 47131 | 90541-06036 | Cushion, No.1(For Clutch Pedal) |
| 47264 | 47148-33011 | Pin(For Push Rod) |
| 55106 | 55106-33090 | Support Sub-Assy, Brake Pedal |
| 91621 | 91621-J0814 | Bolt (For Transmission Control Cable Bracket) |
| 9017910088 | 90179-10088 | Nut |
| 9046816035 | 90468-16035 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 47101-33090 | Pedal Sub-Assy, Brake | Brake Pedal & Bracket ([03.2002 - ] (0203- )) |
| 47121-50020 | Pad, Brake Pedal | Brake Pedal & Bracket ([03.2002 - ] (0203- )) |
| 47148-33011 | Pin(For Push Rod) | Brake Pedal & Bracket ([03.2002 - ] (0203- )) |
| 55106-33090 | Support Sub-Assy, Brake Pedal | Brake Pedal & Bracket ([03.2002 - ] (0203- )) |
| 90109-10167 | Shaft, Clutch Pedal | Brake Pedal & Bracket ([03.2002 - ] (0203- )) |
| 90179-10088 | Nut | Brake Pedal & Bracket ([03.2002 - ] (0203- )) |
| 90386-13015 | Bush(For Clutch Pedal) | Brake Pedal & Bracket ([03.2002 - ] (0203- )) |
| 90468-16035 | CLIP | Brake Pedal & Bracket ([03.2002 - ] (0203- )) |
| 90507-14051 | Spring(For Clutch Pedal) | Brake Pedal & Bracket ([03.2002 - ] (0203- )) |
| 90541-06036 | Cushion, No.1(For Clutch Pedal) | Brake Pedal & Bracket ([03.2002 - ] (0203- )) |
| 91621-J0814 | Bolt (For Transmission Control Cable Bracket) | Brake Pedal & Bracket ([03.2002 - ] (0203- )) |
