Search › Model › ACV31
ACV31

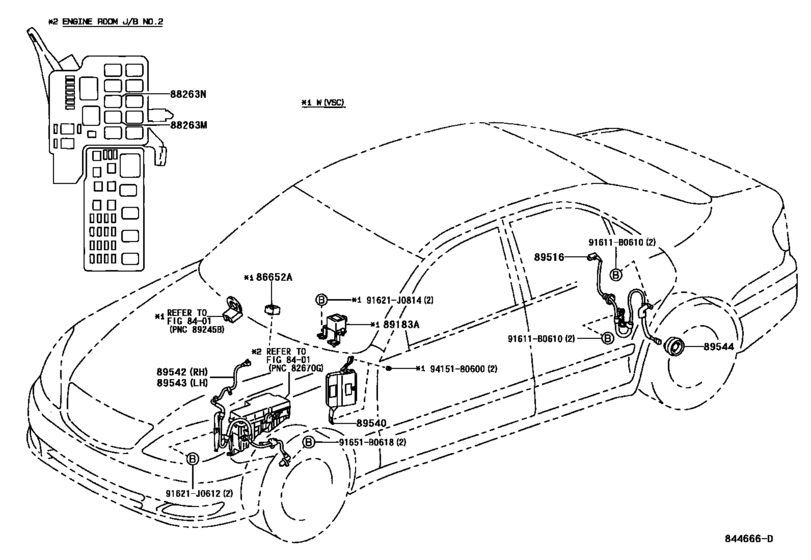

Abs & Vsc ([03.2002 - ] (0203- )RHD) 12
| # | OEM | Part name |
|---|---|---|
| 88263 | 88263-32070 | Relay, Skid Control |
| 89516 | 89516-33010 | Wire, Skid Control Sensor |
| 89516 | 89516-33020 | Wire, Skid Control Sensor |
| 89540 | 89540-33360 | Computer Assy, Skid Control |
| 89542 | 89542-33070 | Sensor, Speed, Front Rh |
| 89543 | 89543-33070 | Sensor, Speed, Front Lh |
| 89544 | 89544-48010 | Sensor, Skid Control |
| 91611 | 91611-B0610 | Bolt (For Transfer Oil Receiver No.1) |
| 91621 | 91621-J0612 | BOLT W-WASHER |
| 91621 | 91621-J0814 | Bolt (For Transmission Control Cable Bracket) |
| 91651 | 91651-B0618 | BOLT WWASHER |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 88263-32070 | Relay, Skid Control | Abs & Vsc ([03.2002 - ] (0203- )RHD) |
| 89516-33010 | Wire, Skid Control Sensor | Abs & Vsc ([03.2002 - ] (0203- )RHD) |
| 89516-33020 | Wire, Skid Control Sensor | Abs & Vsc ([03.2002 - ] (0203- )RHD) |
| 89540-33360 | Computer Assy, Skid Control | Abs & Vsc ([03.2002 - ] (0203- )RHD) |
| 89542-33070 | Sensor, Speed, Front Rh | Abs & Vsc ([03.2002 - ] (0203- )RHD) |
| 89543-33070 | Sensor, Speed, Front Lh | Abs & Vsc ([03.2002 - ] (0203- )RHD) |
| 89544-48010 | Sensor, Skid Control | Abs & Vsc ([03.2002 - ] (0203- )RHD) |
| 91611-B0610 | Bolt (For Transfer Oil Receiver No.1) | Abs & Vsc ([03.2002 - ] (0203- )RHD) |
| 91621-J0612 | BOLT W-WASHER | Abs & Vsc ([03.2002 - ] (0203- )RHD) |
| 91621-J0814 | Bolt (For Transmission Control Cable Bracket) | Abs & Vsc ([03.2002 - ] (0203- )RHD) |
| 91651-B0618 | BOLT WWASHER | Abs & Vsc ([03.2002 - ] (0203- )RHD) |
| 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Abs & Vsc ([03.2002 - ] (0203- )RHD) |
