Search › Model › ACV30
ACV30

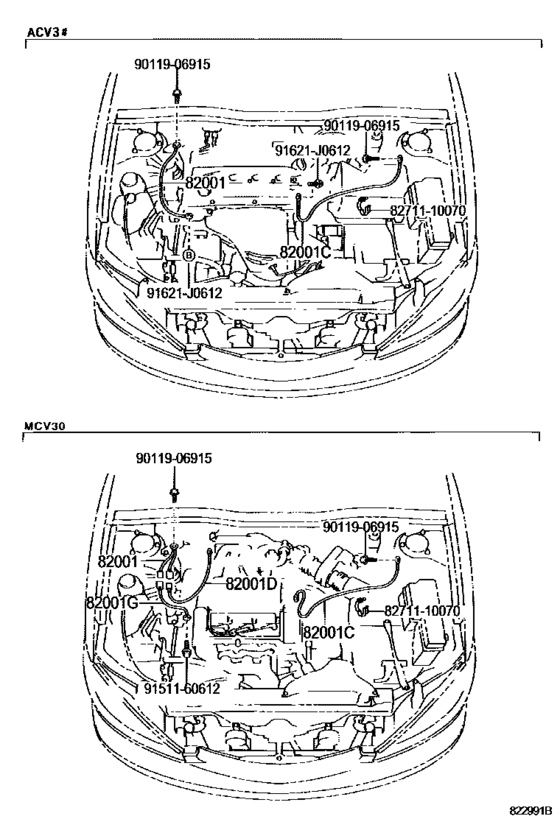

Wiring & Clamp ([03.2002 - ] CABLE BOND (0203- )) 6
| # | OEM | Part name |
|---|---|---|
| 82001 | 90980-07410 | Cable, Bond, No.1 |
| 82001 | 90980-07400 | Cable, Bond, No.1 |
| 91621 | 91621-J0612 | BOLT W-WASHER |
| 8271110070 | 82711-10070 | Clamp, Wiring Harness |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| 9151160612 | 91511-60612 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 82711-10070 | Clamp, Wiring Harness | Wiring & Clamp ([03.2002 - ] CABLE BOND (0203- )) |
| 90119-06915 | BOLT W-WASHER | Wiring & Clamp ([03.2002 - ] CABLE BOND (0203- )) |
| 90980-07400 | Cable, Bond, No.1 | Wiring & Clamp ([03.2002 - ] CABLE BOND (0203- )) |
| 90980-07410 | Cable, Bond, No.1 | Wiring & Clamp ([03.2002 - ] CABLE BOND (0203- )) |
| 91511-60612 | BOLT | Wiring & Clamp ([03.2002 - ] CABLE BOND (0203- )) |
| 91621-J0612 | BOLT W-WASHER | Wiring & Clamp ([03.2002 - ] CABLE BOND (0203- )) |
