ACV30

Toyota CAMRY-VISTA-AURION · 2001 · 3,796 parts · 209 categories

3,796 items

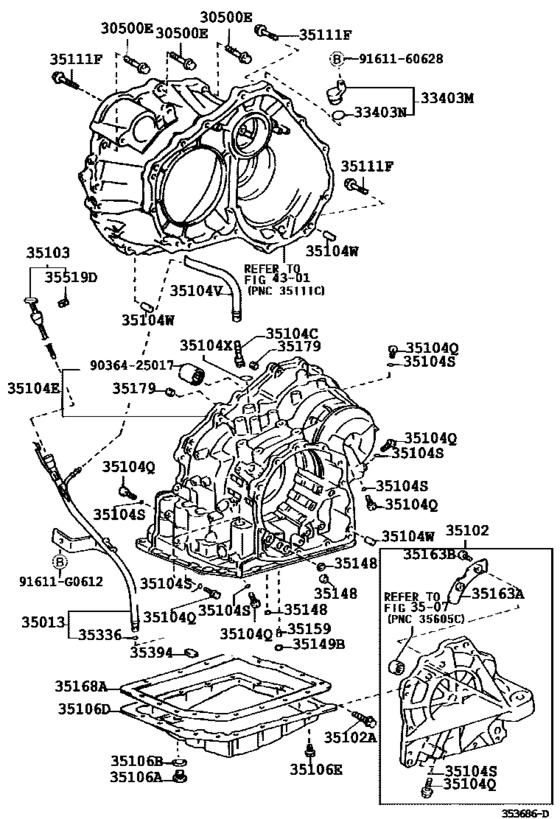

Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC) 46

#	OEM	Part name
30500	90105-T0006	Bolt(For Transaxle & Engine Setting)
30500	90119-12168	Bolt(For Transaxle & Engine Setting)
30500	91512-61050	Bolt(For Alternator)
30500	91512-61065	Bolt(For Transaxle & Engine Setting)
33403	33403-20230	Cover Sub-Assy, Speedometer Driven Hole
33403	96711-24018	Ring, O
35013	35013-33110	Tube Sub-Assy, Transmission Oil Filler
35102	35102-33020	Cover Sub-Assy, Transaxle Rear
35102	35102-28020	Cover Sub-Assy, Transaxle Rear
35102	35102-42H00	Cover Sub-Assy, Transaxle Rear
35102	90105-08071	Bolt (For Transaxle Rear Cover Setting)
35103	35103-33210	Gage Sub-Assy, Transmission Oil Level
35104	90930-03157	Plug, Breather, No.2 (Atm)
35104	35104-33070	Case Sub-Assy, Automatic Transaxle
35104	35104-33H02	Case Sub-Assy, Automatic Transmission
35104	90301-06008	Ring, O (For Transfer Oil Strainer)
35104	90301-10189	Ring, O(For Oil Cooler Tube Union)
35104	90105-06320	Bolt (For Transaxle Housing & Transaxle Case Setting)
35104	35104-33090	Case Sub-Assy, Automatic Transaxle
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90301-06196	O Ring, Transaxle Case, No.1
35104	35121-33010	Hose (For Breather Plug)
35104	90250-10036	Pin, Straight (For Transaxle Case)
35104	90250-10232	Pin, Straight(For Engine Rear Oil Seal)
35104	90301-06005	Ring, O (For Breather Plug)
35106	90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)
35106	90430-18008	Gasket
35106	90430-T0021	Gasket(For Manual Transmission Filler Plug)
35106	35106-33030	Pan Sub-Assy, Automatic Transaxle Oil
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35111	90105-08233	Bolt (For Transaxle Housing & Transaxle Case Setting)
35111	90080-10187	Bolt (For Transaxle Housing & Transaxle Case Setting)
35111	90105-08353	Bolt(For Head To Camshaft Bearing Cap)
35148	35145-21010	Gasket, Transaxle Case
35149	35149-21010	Gasket, Transaxle Case 2Nd Brake
35159	35159-21010	Gasket, Brake Drum
35163	35163-28010	Plate, Transaxle Rear Cover
35163	90148-60055	Screw, Hex Lobular(For Transaxle Rear Cover Plate)
35168	35168-21020	Gasket, Automatic Transaxle Oil Pan
35179	35179-32010	Gasket, Overdrive Brake
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35519	35519-20030	Label, Automatic Transmission Information
91611	91611-G0612	Bolt
9036425017	90364-25017	New Genuine Part
9161160628	91611-60628	Bolt, Hexagon

OEM	Part name	Category
33403-20230	Cover Sub-Assy, Speedometer Driven Hole	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35013-33110	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35102-28020	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35102-33020	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35102-42H00	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35103-33210	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35104-33070	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35104-33090	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35104-33H02	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35106-33030	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35121-33010	Hose (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35145-21010	Gasket, Transaxle Case	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35149-21010	Gasket, Transaxle Case 2Nd Brake	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35159-21010	Gasket, Brake Drum	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35163-28010	Plate, Transaxle Rear Cover	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35168-21020	Gasket, Automatic Transaxle Oil Pan	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35179-32010	Gasket, Overdrive Brake	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
35519-20030	Label, Automatic Transmission Information	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90080-10187	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90105-06320	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90105-08071	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90105-08233	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90105-08353	Bolt(For Head To Camshaft Bearing Cap)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90105-T0006	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90119-12168	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90148-60055	Screw, Hex Lobular(For Transaxle Rear Cover Plate)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90250-10036	Pin, Straight (For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90250-10232	Pin, Straight(For Engine Rear Oil Seal)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90301-06005	Ring, O (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90301-06008	Ring, O (For Transfer Oil Strainer)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90364-25017	New Genuine Part	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90430-18008	Gasket	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
90930-03157	Plug, Breather, No.2 (Atm)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
91512-61050	Bolt(For Alternator)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
91512-61065	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
91611-60628	Bolt, Hexagon	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
91611-G0612	Bolt	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)
96711-24018	Ring, O	Transmission Case & Oil Pan (Atm) ([03.2002 - ] U241E (0203- )ACV3#..4FC)

Source: Public OEM parts-catalog data
Variants: 2 / 29
Category: 209
Collected: 2026-08-02
