ACV30

Toyota CAMRY-VISTA-AURION · 2001 · 3,796 parts · 209 categories

← Back to categories

3,796 items

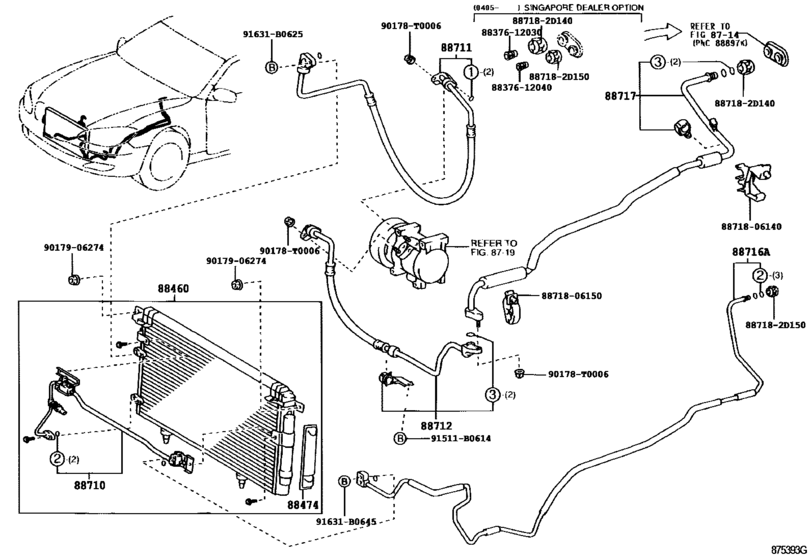

Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH) 18

#	OEM	Part name
88460	88460-06100	Condenser Assy, Cooler
88474	88474-06010	Dryer, Cooler
88710	88710-06180	Tube Assy, Air Conditioner - AIRCONDITIONER
88711	88711-06200	Hose, Cooler Refrigerant Discharge, No.1
88712	88704-06200	Hose, Cooler Refrigerant Suction, No.1
88716	88716-06190	Pipe, Cooler Refrigerant Liquid, A
88717	88710-06130	Pipe, Cooler Refrigerant Suction, No.1
90178	90178-T0006	New Genuine Part
91511	91511-B0614	BOLT, FLANGE
91631	91631-B0625	BOLT W-WASHER
91631	91631-B0645	New Genuine Part
887182	88718-2D140	Clamp(For Cooler Refrigerant Pipe), No.1
887182	88718-2D150	Clamp(For Cooler Refrigerant Pipe), No.1
8837612030	88376-12030	Cap, Blind
8837612040	88376-12040	Cap, Blind
8871806140	88718-06140	Pipe, Cooler Refrigerant Suction, No.2
8871806150	88718-06150	Pipe, Cooler Refrigerant Suction, No.2
9017906274	90179-06274	Nut

OEM	Part name	Category
88376-12030	Cap, Blind	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
88376-12040	Cap, Blind	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
88460-06100	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
88474-06010	Dryer, Cooler	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
88704-06200	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
88710-06130	Pipe, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
88710-06180	Tube Assy, Air Conditioner - AIRCONDITIONER	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
88711-06200	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
88716-06190	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
88718-06140	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
88718-06150	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
88718-2D140	Clamp(For Cooler Refrigerant Pipe), No.1	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
88718-2D150	Clamp(For Cooler Refrigerant Pipe), No.1	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
90178-T0006	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
90179-06274	Nut	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
91511-B0614	BOLT, FLANGE	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
91631-B0625	BOLT W-WASHER	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
91631-B0645	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([03.2002 - ] (0203- )TH)
