ACV30

Toyota CAMRY-VISTA-AURION · 2001 · 3,796 parts · 209 categories

3,796 items

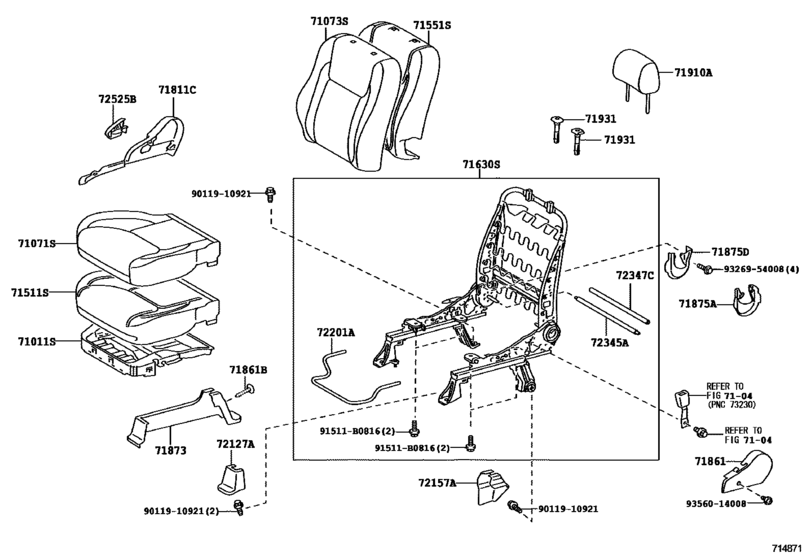

Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G) 29

#	OEM	Part name
71011	71011-02040	Frame Sub-Assy, Front Seat Cushion, Rh
71071	71071-06290-A0	Cover, Front Seat Cushion, Rh(For Separate Type)
71073	71073-06380-A0	Cover, Front Seat Back, Rh(For Separate Type)
71511	71502-06030	Pad, Front Seat Cushion, Rh(For Separate Type)
71551	71551-06030	Pad, Front Seat Back, Rh(For Separate Type)
71630	71630-06060	Spring Assy, Front Seat Back, Rh(For Separate Type)
71811	71811-02060-A0	Cover, Reclining Adjuster, Rh - FRONT SEAT CUSHION, RH
71811	71811-0A010-A0	Cover, Reclining Adjuster, Rh
71861	71861-02040-A0	Shield, Front Seat Cushion, Inner Rh
71861	71861-0A010-A0	Shield, Front Seat Cushion, Inner Rh
71861	90467-07161-A0	Clip(For Front Seat Shield, Rh)
71873	71873-06020-A0	Shield, Front Seat Cushion, Lower Rh
71875	71876-06060-A0	Cover, Reclining Adjuster Inside, Rh - RECLINING ADJUSTER INSIDE, LH
71875	71875-06060-A0	Cover, Reclining Adjuster Inside, Rh
71910	71910-06160-A0	Headrest Assy, Front Seat
71931	71930-02050-A0	Support, Front Seat Headrest
71931	71931-02030-A0	Support, Front Seat Headrest
72127	72127-06010-A0	Cover, Seat Track Bracket, Inner Front Rh
72157	72157-06010-A0	Cover, Seat Track Bracket, Inner Rh
72201	72211-02020	Handle Sub-Assy, Seat Track Rh
72345	72345-06040	Pipe, Reclining Connecting
72347	72347-06030	Cover, Reclining Connecting Hook
72525	72525-0A010-A0	Handle, Reclining Adjuster Release, Rh
72525	72525-16010-A0	Handle, Reclining Adjuster Release, Rh
91511	91511-B0816	BOLT
91511	90080-10159	New Genuine Part
9011910921	90119-10921	BOLT WWASHER
9326954008	93269-54008	New Genuine Part
9356014008	93560-14008	New Genuine Part

OEM	Part name	Category
71011-02040	Frame Sub-Assy, Front Seat Cushion, Rh	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
71071-06290-A0	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
71073-06380-A0	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
71502-06030	Pad, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
71551-06030	Pad, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
71630-06060	Spring Assy, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
71811-02060-A0	Cover, Reclining Adjuster, Rh - FRONT SEAT CUSHION, RH	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
71811-0A010-A0	Cover, Reclining Adjuster, Rh	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
71861-02040-A0	Shield, Front Seat Cushion, Inner Rh	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
71861-0A010-A0	Shield, Front Seat Cushion, Inner Rh	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
71873-06020-A0	Shield, Front Seat Cushion, Lower Rh	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
71875-06060-A0	Cover, Reclining Adjuster Inside, Rh	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
71876-06060-A0	Cover, Reclining Adjuster Inside, Rh - RECLINING ADJUSTER INSIDE, LH	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
71910-06160-A0	Headrest Assy, Front Seat	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
71930-02050-A0	Support, Front Seat Headrest	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
71931-02030-A0	Support, Front Seat Headrest	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
72127-06010-A0	Cover, Seat Track Bracket, Inner Front Rh	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
72157-06010-A0	Cover, Seat Track Bracket, Inner Rh	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
72211-02020	Handle Sub-Assy, Seat Track Rh	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
72345-06040	Pipe, Reclining Connecting	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
72347-06030	Cover, Reclining Connecting Hook	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
72525-0A010-A0	Handle, Reclining Adjuster Release, Rh	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
72525-16010-A0	Handle, Reclining Adjuster Release, Rh	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
90080-10159	New Genuine Part	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
90119-10921	BOLT WWASHER	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
90467-07161-A0	Clip(For Front Seat Shield, Rh)	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
91511-B0816	BOLT	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
93269-54008	New Genuine Part	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
93560-14008	New Genuine Part	Front Seat & Seat Track ([07.2004 - ] PASSENGER SEAT (0404- )20E,20G,30G..TAIW ; (0407- )LHD..2 4E,24G)
