ACV30

Toyota CAMRY-VISTA-AURION · 2001 · 3,796 parts · 209 categories

3,796 items

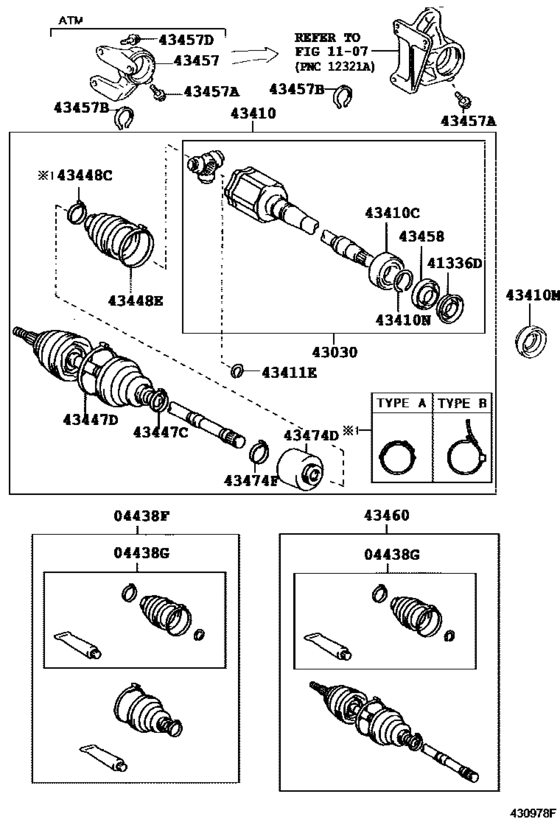

Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F) 29

#	OEM	Part name
4438	04438-28052	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04428-42070	Boot Kit, Front Drive Shaft, In & Outboard, LH
4438	04438-42180	Boot Kit, Front Drive Shaft Inboard Joint
41336	41336-12020	Cover, Dust(For Front Drive Shaft)
43030	43030-33051	Joint Assy, Front Drive Inboard, Rh
43410	43410-33240	Shaft Assy, Front Drive, Rh
43410	90363-41002	Bearing (For Front Drive Shaft)
43410	90363-41003	Bearing (For Front Drive Shaft)
43410	90311-40026	Oil Seal, Front Drive Shaft, Rh
43410	90311-40041	Oil Seal, Front Drive Shaft, Rh
43410	90311-40031	Oil Seal, Front Drive Shaft, Rh
43410	90520-38015	Ring, Shaft Snap(For Rear Drive Shaft)
43411	43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43447	42345-20040	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small
43447	42345-28020	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43447	42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big
43448	42345-42010	Clamp (For Axle Inboard Joint Boot) - Small
43448	90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)
43448	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43457	43457-33020	Bracket, Drive Shaft Bearing
43457	90119-10461	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43457	90521-78002	Ring, Hole Snap(For Rear Drive Shaft)
43457	90105-10381	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43458	43458-12010	Cover, Front Drive Shaft Dust
43460	43470-29885	Shaft Assy, Front Drive Outboard Joint, Rh
43474	43474-48020	Damper, Drive Shaft
43474	43474-48080	Damper, Front Drive Shaft, Rh
43474	42345-14010	Clamp, Rear Drive Shaft Boot

OEM	Part name	Category
04428-42070	Boot Kit, Front Drive Shaft, In & Outboard, LH	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
04438-28052	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
04438-42180	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
41336-12020	Cover, Dust(For Front Drive Shaft)	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
42345-14010	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
42345-20040	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
42345-28020	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
42345-42010	Clamp (For Axle Inboard Joint Boot) - Small	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
43030-33051	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
43410-33240	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
43457-33020	Bracket, Drive Shaft Bearing	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
43458-12010	Cover, Front Drive Shaft Dust	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
43470-29885	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
43474-48020	Damper, Drive Shaft	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
43474-48080	Damper, Front Drive Shaft, Rh	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
90105-10381	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
90119-10461	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
90311-40026	Oil Seal, Front Drive Shaft, Rh	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
90311-40031	Oil Seal, Front Drive Shaft, Rh	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
90311-40041	Oil Seal, Front Drive Shaft, Rh	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
90363-41002	Bearing (For Front Drive Shaft)	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
90363-41003	Bearing (For Front Drive Shaft)	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
90520-38015	Ring, Shaft Snap(For Rear Drive Shaft)	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
90521-78002	Ring, Hole Snap(For Rear Drive Shaft)	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)	Front Drive Shaft ([03.2002 - ] RH (0203- )ACV3#..IDN,PHL,TAIW,VN ; (0405- )T H..5F)
