Search › Model › ACV30
ACV30

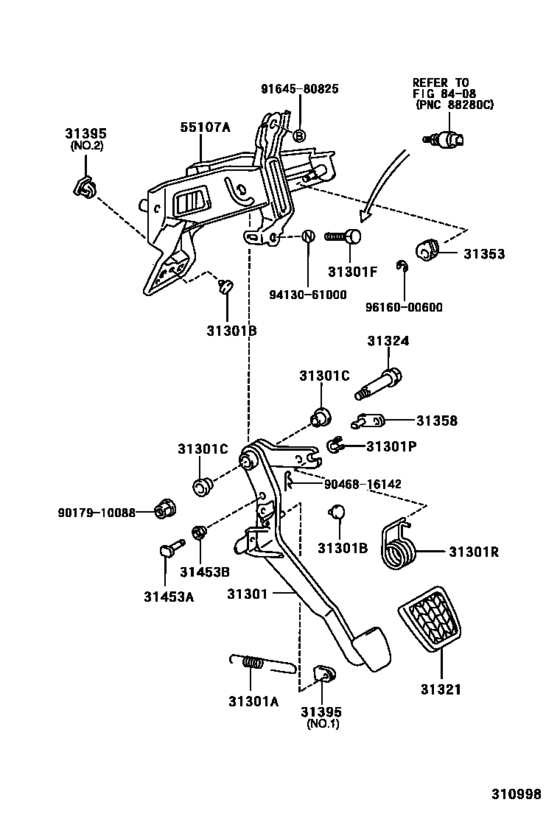

Clutch Pedal & Flexible Hose ([05.2002 - ] (0205- )5F) 7
| # | OEM | Part name |
|---|---|---|
| 31453 | 90249-08143 | Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis) |
| 55107 | 55107-33030 | Support Sub-Assy, Clutch Pedal |
| 9017910088 | 90179-10088 | Nut |
| 9046816142 | 90468-16142 | Clip(For Push Rod Clevis Pin) |
| 9164580825 | 91645-80825 | BOLT WWASHER |
| 9413061000 | 94130-61000 | Nut(For Clutch Pedal Stopper) |
| 9616000600 | 96160-00600 | Ring, E(For Clutch Pedal Pawl) |
| OEM | Part name | Category |
|---|---|---|
| 55107-33030 | Support Sub-Assy, Clutch Pedal | Clutch Pedal & Flexible Hose ([05.2002 - ] (0205- )5F) |
| 90179-10088 | Nut | Clutch Pedal & Flexible Hose ([05.2002 - ] (0205- )5F) |
| 90249-08143 | Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis) | Clutch Pedal & Flexible Hose ([05.2002 - ] (0205- )5F) |
| 90468-16142 | Clip(For Push Rod Clevis Pin) | Clutch Pedal & Flexible Hose ([05.2002 - ] (0205- )5F) |
| 91645-80825 | BOLT WWASHER | Clutch Pedal & Flexible Hose ([05.2002 - ] (0205- )5F) |
| 94130-61000 | Nut(For Clutch Pedal Stopper) | Clutch Pedal & Flexible Hose ([05.2002 - ] (0205- )5F) |
| 96160-00600 | Ring, E(For Clutch Pedal Pawl) | Clutch Pedal & Flexible Hose ([05.2002 - ] (0205- )5F) |
