Search › Model › ACV30
ACV30

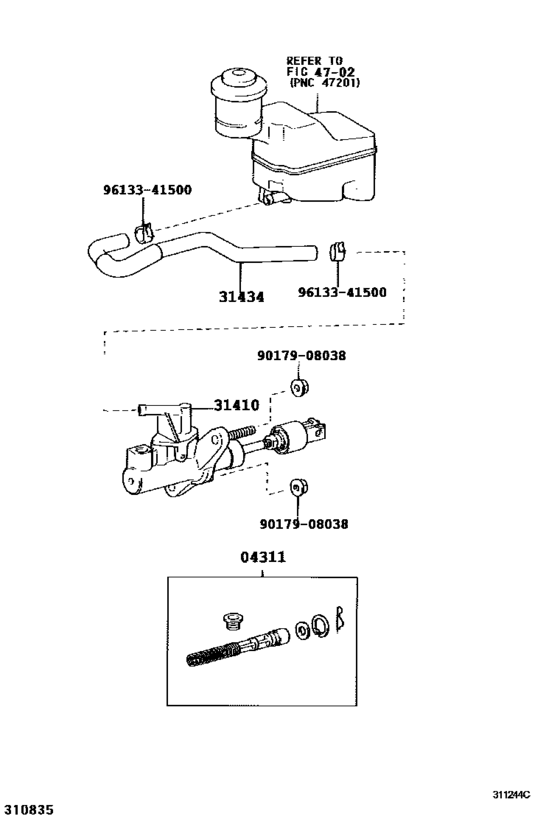

Clutch Master Cylinder ([05.2002 - ] (0205- )5F) 3
| # | OEM | Part name |
|---|---|---|
| 4311 | 04311-12110 | Cylinder Kit, Clutch Master |
| 9017908038 | 90179-08038 | Nut |
| 9613341500 | 96133-41500 | Clamp Or Clip(For Air Hose, No.5) |
| OEM | Part name | Category |
|---|---|---|
| 04311-12110 | Cylinder Kit, Clutch Master | Clutch Master Cylinder ([05.2002 - ] (0205- )5F) |
| 90179-08038 | Nut | Clutch Master Cylinder ([05.2002 - ] (0205- )5F) |
| 96133-41500 | Clamp Or Clip(For Air Hose, No.5) | Clutch Master Cylinder ([05.2002 - ] (0205- )5F) |
