ACV30

Toyota CAMRY-VISTA-AURION · 2001 · 3,796 parts · 209 categories
ACV30 ×

← Back to categories

3,796 items

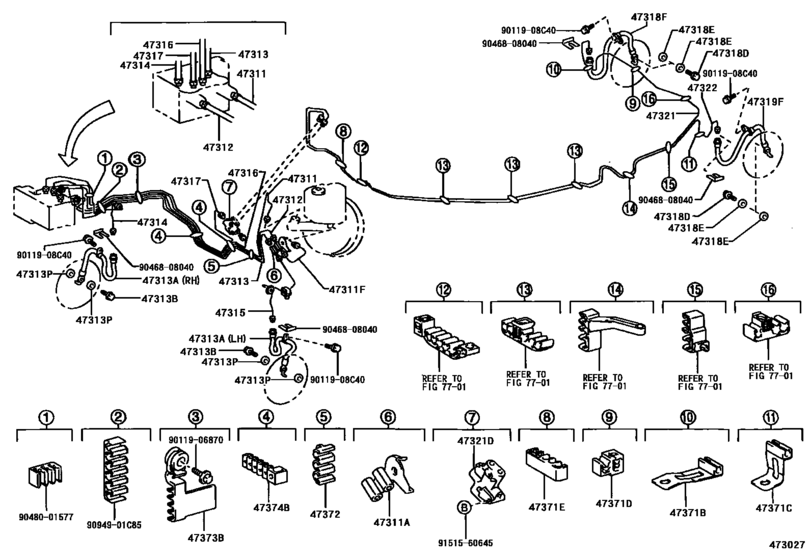

Brake Tube & Clamp ([06.2002 - ] (0206- )PHL) 32
#OEMPart name
47311 47311-33100 Tube, Front Brake, No.1
47311 90412-10238 Way(For Front Brake Tube)
47311 47311-33140 Tube, Front Brake, Frame No.1
47312 47312-33120 Tube, Front Brake, No.2
47313 47313-33120 Tube, Front Brake, No.3
47313 90080-94148 Hose, Flexible, No.1(For Front)
47313 90080-94151 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 90430-10074 Gasket(For Oil Pressure Regulator)
47314 47314-33070 Tube, Front Brake, No.4
47315 47315-33180 Tube, Front Brake, No.5
47316 47316-33220 Tube, Front Brake, No.6
47317 47317-33210 Tube, Front Brake, No.7
47318 90080-94142 Hose, Flexible(For Rear Rh)
47319 90080-94145 Hose, Flexible(For Rear Lh)
47321 47321-33130 Tube, Rear Brake, No.1
47321 90412-10140 Valve Assy, Proportioning
47322 47322-33100 Tube, Rear Brake, No.2
47371 47371-32130 Clamp, Brake Tube, No.6
47371 47371-32140 Clamp, Brake Tube, No.7
47371 90949-01B45 Clamp(For Clutch Master Cylinder Tube)
47371 90949-01C53 Clamp, Brake Tube, No.9
47372 90464-00778 Clamp, Brake Tube, No.1
47373 90949-01C55 Clamp, Brake Tube, No.3
47374 90949-01C56 Clamp, Brake Tube, No.2
9011908 90119-08C40 New Genuine Part
9094901 90949-01C85 Clamp, Brake Tube, No.2
9094901 90080-46366 Clamp, Brake Tube, No.2
9011906870 90119-06870 BOLT WWASHER
9046808040 90468-08040 CLIP
9048001577 90480-01577 GROMMET
9151560645 91515-60645 New Genuine Part
