ACV20

Toyota SOLARA · 2001 · 4,536 parts · 174 categories

4,536 items

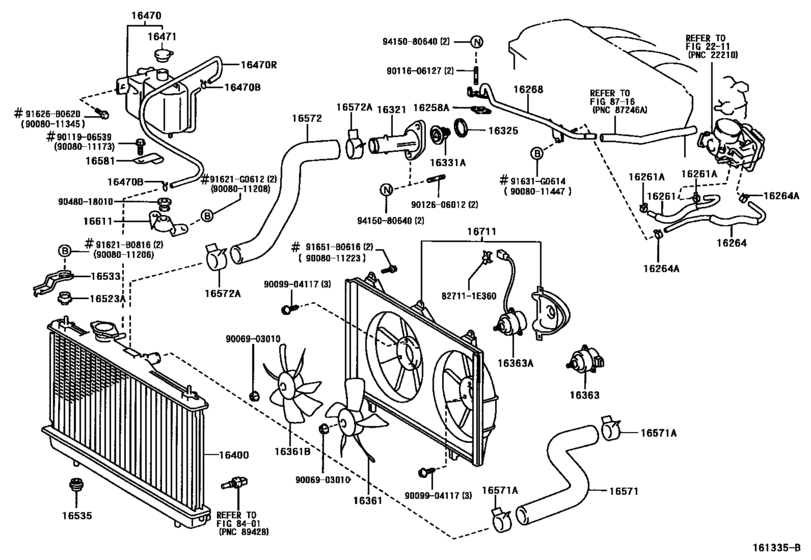

Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE) 71

#	OEM	Part name
0	82711-1E360	Clamp, Wiring Harness
16258	16258-0H010	Gasket(For Heater Return)
16258	16258-28010	Gasket(For Heater Return)
16258	16258-28030	Gasket(For Heater Return)
16261	16261-0H010	Hose, Water By-Pass
16261	96135-41300	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	96135-51300	Clamp, Hose
16264	16264-0H010	Hose, Water By-Pass, No.2
16268	16268-0H010	Pipe, Water By-Pass, No.1
16268	16268-28010	Pipe, Water By-Pass, No.1
16321	16321-0H010	Inlet, Water
16321	16321-0H011	Inlet, Water
16321	16321-28020	Inlet, Water
16325	16325-62010	Gasket, Water Inlet Housing, No.1
16331	90916-03084	Thermostat
16331	90916-03129	Thermostat
16361	16361-03070	Fan
16361	16361-03071	Fan
16361	16361-03080	Fan, No.2
16361	16361-03081	Fan, No.2
16363	16363-0H010	Motor, Cooling Fan
16363	16363-03100	Motor, Cooling Fan
16400	16400-0H050	Radiator Assy
16400	23322-54010	Plug,air(For Oil Cooler Drain Cock)
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16401	16401-62100	Cap Sub-Assy, Radiator
16401	16401-31520	Radiator Cap Sub-Assy (108kPa)
16401	16401-36020	Cap Sub-Assy, Radiator
16403	16403-0H030	Core Sub-Assy, Radiator
16406	16406-62060	Support(For Oil Cooler)
16441	16441-0H050	Tank, Radiator, Upper
16442	16442-03140	Ring, O(For Radiator Upper Tank)
16461	16461-0H050	Tank, Radiator, Lower
16462	16442-0A190	Ring, O(For Radiator Upper Tank)
16470	16470-03081	Tank Assy, Radiator Reserve
16470	90467-12058	Clamp Or Clip(For Radiator Reserve Tank Hose)
16470	16472-03060	Hose, No.2(For Radiator Reserve Tank)
16471	16471-03010	Cap Sub-Assy, Reserve Tank
16491	16491-03150	Cooler, Oil(For Atm)
16491	16492-07120	Ring, O(For Atm Oil Cooler)
16491	16493-62060	Washer, Plate(For Atm Oil Cooler)
16497	16495-0H050	Inlet Sub-Assy
16523	16523-03010	Cushion, Radiator Support
16533	16533-74320	Support, Radiator, Upper
16535	16535-03050	Support, Radiator, Lower
16571	16571-0H030	Hose, Radiator, Inlet
16571	90467-37002	Clip(For Water Inlet Hose)
16571	90467-37005	Clip(For Water Inlet Hose)
16572	16572-0H020	Hose, Radiator, Outlet
16581	90461-10101	Clamp, Hose(For Water Hose)
16611	16611-03020	Bracket, Radiator Reserve Tank
16711	16711-0H020	Shroud, Fan
91621	91621-B0816	BOLT WWASHER
91621	91621-G0612	New Genuine Part
91626	91626-B0620	BOLT WWASHER
91626	91621-B0616	Bolt
91631	91631-G0614	BOT WWASHER
91651	91651-B0616	BOLT WWASHER
9006903010	90069-03010	NUT
9008011173	90080-11173	New Genuine Part
9008011206	90080-11206	New Genuine Part
9008011208	90080-11208	New Genuine Part
9008011223	90080-11223	New Genuine Part
9008011345	90080-11345	New Genuine Part
9008011447	90080-11447	New Genuine Part
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9011606127	90116-06127	Bolt, Stud(For Oil Pan)
9011906539	90119-06539	New Genuine Part
9012606012	90126-06012	STUD, HEX LOBULAR
9048018010	90480-18010	Grommet, Radiator Reserve Tank Hose
9415080640	94150-80640	NUT FLANGE

OEM	Part name	Category
16258-0H010	Gasket(For Heater Return)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16258-28010	Gasket(For Heater Return)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16258-28030	Gasket(For Heater Return)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16261-0H010	Hose, Water By-Pass	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16264-0H010	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16268-0H010	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16268-28010	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16321-0H010	Inlet, Water	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16321-0H011	Inlet, Water	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16321-28020	Inlet, Water	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16325-62010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16361-03070	Fan	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16361-03071	Fan	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16361-03080	Fan, No.2	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16361-03081	Fan, No.2	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16363-03100	Motor, Cooling Fan	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16363-0H010	Motor, Cooling Fan	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16400-0H050	Radiator Assy	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16401-31520	Radiator Cap Sub-Assy (108kPa)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16401-36020	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16401-62100	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16403-0H030	Core Sub-Assy, Radiator	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16406-62060	Support(For Oil Cooler)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16441-0H050	Tank, Radiator, Upper	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16442-03140	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16442-0A190	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16461-0H050	Tank, Radiator, Lower	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16470-03081	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16471-03010	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16472-03060	Hose, No.2(For Radiator Reserve Tank)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16491-03150	Cooler, Oil(For Atm)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16492-07120	Ring, O(For Atm Oil Cooler)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16493-62060	Washer, Plate(For Atm Oil Cooler)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16495-0H050	Inlet Sub-Assy	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16523-03010	Cushion, Radiator Support	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16533-74320	Support, Radiator, Upper	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16535-03050	Support, Radiator, Lower	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16571-0H030	Hose, Radiator, Inlet	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16572-0H020	Hose, Radiator, Outlet	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16611-03020	Bracket, Radiator Reserve Tank	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
16711-0H020	Shroud, Fan	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
23322-54010	Plug,air(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
82711-1E360	Clamp, Wiring Harness	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90069-03010	NUT	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90080-11173	New Genuine Part	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90080-11206	New Genuine Part	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90080-11208	New Genuine Part	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90080-11223	New Genuine Part	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90080-11345	New Genuine Part	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90080-11447	New Genuine Part	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90099-04117	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90116-06127	Bolt, Stud(For Oil Pan)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90119-06539	New Genuine Part	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90126-06012	STUD, HEX LOBULAR	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90461-10101	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90467-12058	Clamp Or Clip(For Radiator Reserve Tank Hose)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90467-37002	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90467-37005	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90480-18010	Grommet, Radiator Reserve Tank Hose	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90916-03084	Thermostat	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
90916-03129	Thermostat	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
91621-B0616	Bolt	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
91621-B0816	BOLT WWASHER	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
91621-G0612	New Genuine Part	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
91626-B0620	BOLT WWASHER	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
91631-G0614	BOT WWASHER	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
91651-B0616	BOLT WWASHER	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
94150-80640	NUT FLANGE	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
96135-41300	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
96135-51300	Clamp, Hose	Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE)
