ACV20

Toyota SOLARA · 2001 · 4,536 parts · 174 categories
ACV20 ×

← Back to categories

4,536 items

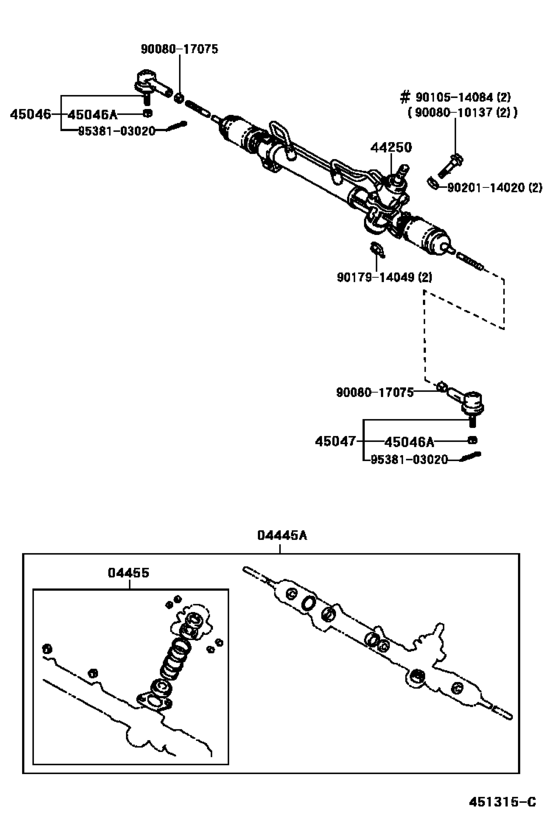

Front Steering Gear & Link ([06.1998 - ] (9806- )) 51
#OEMPart name
4445 04445-06030 Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455 04455-06020 Gasket Kit, Power Steering Control Valve Overhole
44201 90080-31016 Seal, Oil(For Power Steering Control Valve)
44201 90080-36031 Bearing(For Power Steering Control Valve Upper)
44201 90080-36044 Bearing(For Power Steering Control Valve Center)
44201 90363-12013 Bearing(For Power Steering Control Valve Lower)
44204 44204-06061 Rack Sub-Assy, Power Steering
44204 90080-30022 Ring(For Rack Steering Piston)
44204 90080-56013 Ring(For Rack Steering Piston)
44205 44205-07010 Stopper Sub-Assy, Cylinder End
44205 90080-30025 Ring, O(For Power Steering Rack Bush)
44205 90080-31010 Seal, Oil(For Power Steering Rack Bush)
44206 90080-31038 Seal, Oil, No.1(For Power Steering Cylinder Tube)
44210 44210-06091 Valve Assy, Power Steering Control
44210 90080-31015 Seal, Oil(For Power Steering Control Valve)
44211 44211-07020 Housing, Control Valve
44218 44218-06010 Gasket, Valve Housing
44240 44240-06030 Housing Assy, Power Steering Rack
44250 44250-06081 Gear Assy, Power Steering(For Rack & Pinion)
44275 44275-06020 Stopper, Cylinder End
44275 90080-58122 Wire(For Cylinder End Stopper)
44283 44283-06010 Cap, Rack Housing
44283 44283-08010 Cap, Rack Housing
44283 90080-17078 Nut(For Rack Housing Cap)
44418 44418-07010 Tube, Steering Right Turn Pressure
44418 90080-30023 Ring, O(For Steering Turn Pressure Tube)
44419 44419-07010 Tube, Steering Left Turn Pressure
45046 45046-09020 End Sub-Assy, Tie Rod, Rh
45046 90171-12028 Nut, Castle(For Pitman Arm)
45222 45222-0C010 Cover, Steering Gear Dust
45503 45503-39135 End Sub-Assy, Steering Rack
45503 90214-14002 Washer, Claw(For Power Steering Rack End)
45515 45515-06011 Bracket, Steering Rack Housing, No.2
45515 90080-38062 Collar, Steering Rack Housing Bracket
45517 45517-06030 Grommet, Steering Rack Housing, No.2
45523 45504-06010 Guide, Rack(For Steering Gear)
45523 90080-50159 Spring(For Steering Gear Rack Guide)
45524 45524-06010 Cap, Steering Rack Guide Spring
45524 44142-06010 Nut(For Steering Rack Guide Spring Cap)
45535 45535-06020 Boot, Steering Rack, No.1
45535 45535-07010 Boot, Steering Rack, No.1
45535 90080-46153 Clip(For Steering Rack Boot)
45535 90080-46152 Clamp(For Steering Rack Boot No.1)
45535 90460-58006 Clamp(For Steering Rack Boot No.1)
9008010055 90080-10055 New Genuine Part
9008010137 90080-10137 Bolt(For Front Suspension Lower Arm)
9008017075 90080-17075 New Genuine Part
9010514084 90105-14084 Bolt(For Front Suspension Lower Arm)
9017914049 90179-14049 New Genuine Part
9020114020 90201-14020 WASHER
9538103020 95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin)
