ACU25

Toyota HIGHLANDER-KLUGER · 2000 · 5,655 parts · 287 categories
ACU25 ×

← Back to categories

5,655 items

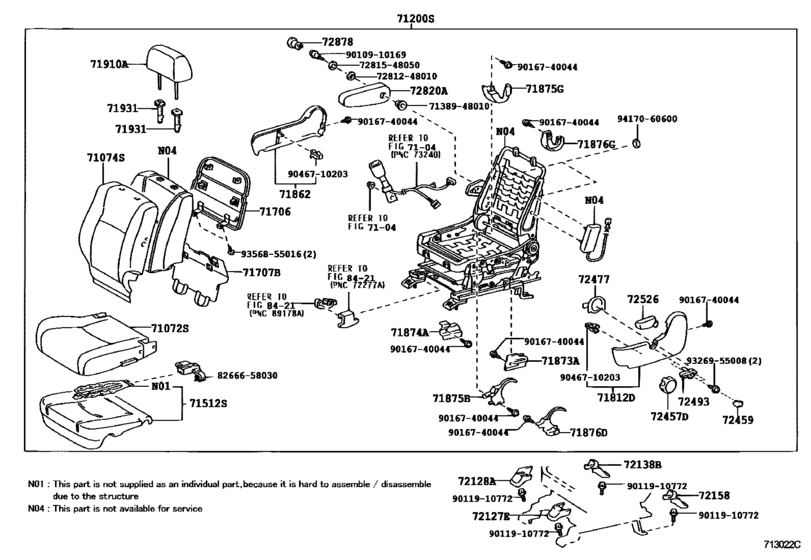

Front Seat & Seat Track ([08.2003 - ] LH-W(SRS SIDE AIR BAG) (0308- )) 138
#OEMPart name
71072 71072-48360-A0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-48360-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-48380-A0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-48380-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-48390-A0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-48390-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-48400-A0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-48400-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71074 71074-48430-A2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-48430-B2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-48440-A1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-48440-B2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-48450-A1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-48450-B1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-48460-A1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-48460-B1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-48470-A1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-48470-B1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-48480-A1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-48480-B1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-48490 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-48500-A0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-48500-B0 Cover, Front Seat Back, Lh(For Separate Type)
71200 71200-48A60-A3 Seat Assy, Front Lh
71200 71200-48A60-A7 Seat Assy, Front Lh
71200 71200-48A60-A9 Seat Assy, Front Lh
71200 71200-48A60-B3 Seat Assy, Front Lh
71200 71200-48A60-B7 Seat Assy, Front Lh
71200 71200-48A60-B9 Seat Assy, Front Lh
71200 71200-48A70-A2 Seat Assy, Front Lh
71200 71200-48A70-B2 Seat Assy, Front Lh
71200 71200-48B00-A1 Seat Assy, Front Lh
71200 71200-48B00-B1 Seat Assy, Front Lh
71200 71200-48B10-A1 Seat Assy, Front Lh
71200 71200-48B10-B1 Seat Assy, Front Lh
71512 71512-48090 Pad, Front Seat Cushion, Lh (For Separate Type)
71512 71512-48110 Pad, Front Seat Cushion, Lh (For Separate Type)
71512 71512-48190 Pad, Front Seat Cushion, Lh (For Separate Type)
71512 71512-48200 Pad, Front Seat Cushion, Lh (For Separate Type)
71706 71706-48030-A3 Board Sub-Assy, Front Seat Back, Lh
71706 71706-48031-A3 Board Sub-Assy, Front Seat Back, Lh
71706 71706-48030-B3 Board Sub-Assy, Front Seat Back, Lh
71706 71706-48031-B3 Board Sub-Assy, Front Seat Back, Lh
71706 71706-48040-A1 Board Sub-Assy, Front Seat Back, Lh
71706 71706-48040-B1 Board Sub-Assy, Front Seat Back, Lh
71707 71707-48010-A0 Cover Sub-Assy, Front Seat Back Board
71707 71707-48010-B0 Cover Sub-Assy, Front Seat Back Board
71812 71812-48080-A0 Shield, Front Seat Cushion, Lh
71812 71812-48080-B1 Shield, Front Seat Cushion, Lh
71812 71812-48080-C0 Shield, Front Seat Cushion, Lh
71812 71812-48110-A0 Shield, Front Seat Cushion, Lh
71812 71812-48110-B0 Shield, Front Seat Cushion, Lh
71862 71862-48060-A0 Shield, Front Seat Cushion, Inner Lh
71862 71862-48060-B1 Shield, Front Seat Cushion, Inner Lh
71862 71862-48080-A0 Shield, Front Seat Cushion, Inner Lh
71862 71862-48080-B0 Shield, Front Seat Cushion, Inner Lh
71873 71873-48050 Shield, Front Seat Cushion, Lower
71873 71873-48090-A0 Shield, Front Seat Cushion, Lower
71873 71873-48090-B0 Shield, Front Seat Cushion, Lower
71874 71874-48050 Shield, Front Seat Cushion, Lower Lh
71874 71874-48090 Shield, Front Seat Cushion, Lower Lh
71875 71875-52030-A0 Cover, Reclining Adjuster Inside, Rh
71875 71875-52030-B5 Cover, Reclining Adjuster Inside, Rh
71875 71875-52030-C0 Cover, Reclining Adjuster Inside, Rh
71875 71875-58060-A0 Cover, Reclining Adjuster Inside, Rh (For Rh Seat)
71875 71875-60140 Cover, Reclining Adjuster Inside, Rh
71876 71876-52030-A0 Cover, Reclining Adjuster Inside, Lh
71876 71876-52030-B5 Cover, Reclining Adjuster Inside, Lh
71876 71876-52030-C0 Cover, Reclining Adjuster Inside, Lh
71876 71876-60150-A0 Cover, Reclining Adjuster Inside, Lh
71876 71876-60150-C0 Cover, Reclining Adjuster Inside, Lh (Black)
71876 71876-60150-B5 Cover, Reclining Adjuster Inside, Lh
71876 71876-58060-A0 Cover, Reclining Adjuster Inside, Lh (For Rh Seat)
71876 71876-60140 Cover, Reclining Adjuster Inside, Lh
71910 71910-48260-A0 Headrest Assy, Front Seat
71910 71910-48260-B0 Headrest Assy, Front Seat
71910 71910-48270-A0 Headrest Assy, Front Seat
71910 71910-48270-B0 Headrest Assy, Front Seat
71910 71910-48280-A0 Headrest Assy, Front Seat
71910 71910-48280-B0 Headrest Assy, Front Seat
71931 71930-42020-A0 Support Assy, Front Seat Headrest
71931 71930-52030-A0 Support, Front Seat Headrest
71931 71930-42020-B7 Support, Front Seat Headrest
71931 71930-52030-B1 Support, Front Seat Headrest
71931 71931-42020-A0 Support Assy, Front Seat Headrest
71931 71931-42020-B7 Support, Front Seat Headrest
72127 72124-48020-A0 Cover, Seat Track Bracket, Outer Front Lh
72127 72124-48020-B1 Cover, Seat Track Bracket, Inner Front
72127 72124-48040-A0 Cover, Seat Track Bracket, Outer Front Lh
72127 72124-48040-B1 Cover, Seat Track Bracket, Inner Front
72128 72124-48030-A0 Cover, Seat Track Bracket, Inner Front Lh
72128 72124-48030-B1 Cover, Seat Track Bracket, Inner Front Lh
72128 72128-48020-A0 Cover, Seat Track Bracket, Inner Front Lh
72128 72128-48020-B1 Cover, Seat Track Bracket, Inner Front Lh
72138 72158-48020-A0 Cover, Seat Track, Lh
72138 72158-48020-B1 Cover, Seat Track, Lh
72138 72158-48030-A0 Cover, Seat Track, Lh
72138 72158-48030-B1 Cover, Seat Track, Lh
72158 72137-48040-A0 Cover, Seat Track Bracket, Inner Lh
72158 72137-48040-B1 Cover, Seat Track Bracket, Inner Lh
72158 72138-48010-A0 Cover, Seat Track Bracket, Inner Lh
72158 72138-48010-B1 Cover, Seat Track Bracket, Inner Lh
72457 72457-58010-A0 Knob, Vertical Seat Adjuster, Rh
72457 72457-58010-B0 Knob, Vertical Seat Adjuster, Rh
72457 72457-58010-B4 Knob, Vertical Seat Adjuster, Rh
72459 72459-60010-A0 Cap, Vertical Seat Adjuster Knob
72459 72459-60010-C0 Cap, Vertical Seat Adjuster Knob
72459 72459-60010-B4 Cap, Vertical Seat Adjuster Knob
72459 72459-60020-B1 Cap, Vertical Seat Adjuster Knob
72459 72459-60020-A0 Cap, Vertical Seat Adjuster Knob
72459 72459-60020-B0 Cap, Vertical Seat Adjuster Knob
72459 72459-60020-B3 Cap, Vertical Seat Adjuster Knob
72477 72477-33030-C0 Spacer, Vertical Adjuster
72493 72493-60010-A0 Handle, Vertical Adjusting, No.2
72493 72493-60010-B2 Handle, Vertical Adjusting, No.2
72493 72493-60020-A0 Handle, Vertical Adjusting, No.2
72493 72493-60020-B0 Handle, Vertical Adjusting, No.2
72493 72493-60020-B3 Handle, Vertical Adjusting, No.2
72493 72493-60020-B1 Handle, Vertical Adjusting, No.2
72526 72526-58040-A0 Handle, Reclining Adjuster Release, Lh
72526 72526-58040-B5 Handle, Reclining Adjuster Release, Lh
72820 72820-48170-A2 Armrest Assy, Seat, Lh
72820 72820-48170-B2 Armrest Assy, Seat, Lh
72820 72820-48180-A1 Armrest Assy, Seat, Lh
72820 72820-48180-B1 Armrest Assy, Seat, Lh
72878 72848-48020-A0 Cover, Seat Armrest, Rh
72878 72848-48020-B3 Cover, Seat Armrest, Rh
7138948010 71389-48010 Spacer, Center Seat Hinge
7281248010 72812-48010 Clutch, Protector Sub
7281548050 72815-48050 Holder, Clutch Protector Sub
8266658030 82666-58030 Holder, Connector
9010910169 90109-10169 BOLT
9011910772 90119-10772 New Genuine Part
9016740044 90167-40044 BOLT
9046710203 90467-10203 Direct
9326955008 93269-55008 New Genuine Part
9356855016 93568-55016 Screw
9417060600 94170-60600 NUT CAP
