Search › Model › ACU10
ACU10

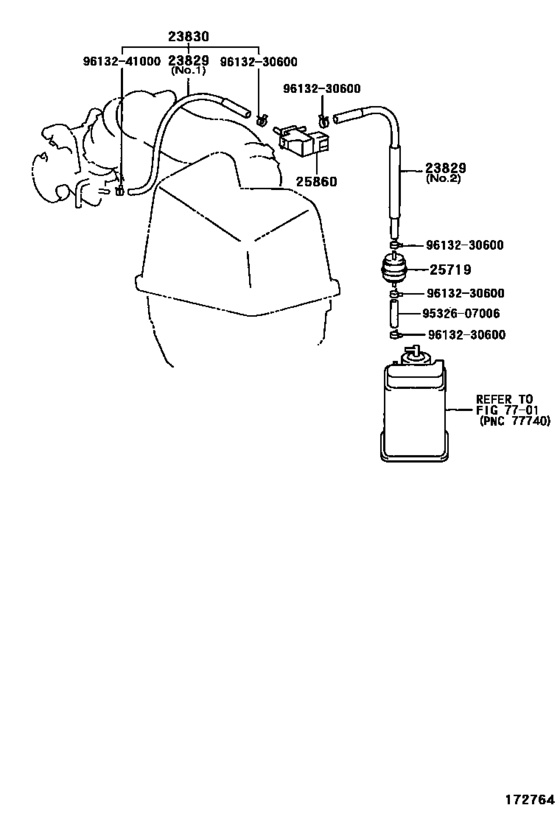

Vacuum Piping ([11.2000 - ] (0011- )2AZFE) 9
| # | OEM | Part name |
|---|---|---|
| 23829 | 23829-28070 | Hose, Fuel Vapor Feed, No.3 |
| 23829 | 95326-07022 | Hose, Fuel Vapor Feed, No.3 |
| 23830 | 23830-28040 | Hose Assy, Fuel Vapor Feed, No.2 |
| 23830 | 96132-41000 | Clip, No.1(For Idle-Up Hose) |
| 25719 | 25719-20020 | Tank, Vacuum Surge |
| 25860 | 25860-28010 | Valve Assy, Vacuum Switching, No.1 |
| 9532607006 | 95326-07006 | Hose, Fuel Vapor Feed, No.2 |
| 9613230600 | 96132-30600 | Clip(For Actuator Hose) |
| 9613230600 | 96132-51100 | Clip (For Hose) |
| OEM | Part name | Category |
|---|---|---|
| 23829-28070 | Hose, Fuel Vapor Feed, No.3 | Vacuum Piping ([11.2000 - ] (0011- )2AZFE) |
| 23830-28040 | Hose Assy, Fuel Vapor Feed, No.2 | Vacuum Piping ([11.2000 - ] (0011- )2AZFE) |
| 25719-20020 | Tank, Vacuum Surge | Vacuum Piping ([11.2000 - ] (0011- )2AZFE) |
| 25860-28010 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([11.2000 - ] (0011- )2AZFE) |
| 95326-07006 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([11.2000 - ] (0011- )2AZFE) |
| 95326-07022 | Hose, Fuel Vapor Feed, No.3 | Vacuum Piping ([11.2000 - ] (0011- )2AZFE) |
| 96132-30600 | Clip(For Actuator Hose) | Vacuum Piping ([11.2000 - ] (0011- )2AZFE) |
| 96132-41000 | Clip, No.1(For Idle-Up Hose) | Vacuum Piping ([11.2000 - ] (0011- )2AZFE) |
| 96132-51100 | Clip (For Hose) | Vacuum Piping ([11.2000 - ] (0011- )2AZFE) |
