Search › Model › ACU10

ACU10

Toyota HARRIER · 2000 · 4,218 parts · 167 categories

4,218 items

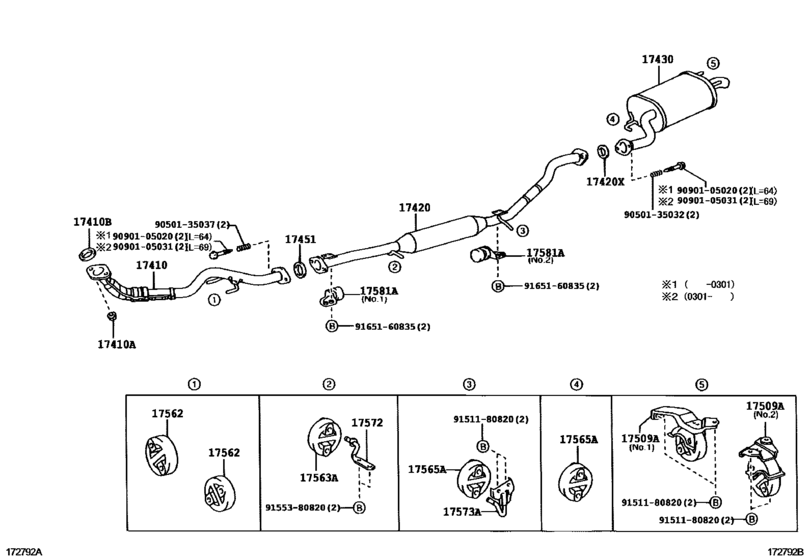

Exhaust Pipe ([11.2000 - ] (0011- )2AZFE) 23

#	OEM	Part name
17410	17410-28210	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06067	Gasket, Exhaust Pipe
17420	17420-28090	Pipe Assy, Exhaust, Center
17420	17451-74060	Gasket, Exhaust Pipe, Center
17430	17440-28010	Pipe Assy, Exhaust, Tail
17451	17451-20020	Gasket, Exhaust Pipe
17509	17509-20030	Bracket Sub-Assy, Exhaust Pipe No.4 Support
17509	17509-20040	Bracket Sub-Assy, Exhaust Pipe No.4 Support
17562	17565-15140	Bolt Or Ring, Exhaust Tail Pipe (For Front)
17565	17565-55050	Support, Exhaust Pipe, No.1
17572	17572-20070	Bracket, Exhaust Pipe No.1 Support
17573	17573-20030	Bracket, Exhaust Pipe Support, No.3
17581	17581-28030	Damper, Exhaust Pipe
17581	17581-46070	Damper, Exhaust Pipe
9050135032	90501-35032	SPRING COMPRESSION
9050135037	90501-35037	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9090105031	90901-05031	BOLT
9151180820	91511-80820	BOLT FLANGE
9155380820	91553-80820	BOLTFLANGE
9165160835	91651-60835	Bolt(For Front Suspension Control Accumulator)

OEM	Part name	Category
17410-28210	Pipe Assy, Exhaust, Front	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
17420-28090	Pipe Assy, Exhaust, Center	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
17440-28010	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
17451-20020	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
17451-74060	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
17509-20030	Bracket Sub-Assy, Exhaust Pipe No.4 Support	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
17509-20040	Bracket Sub-Assy, Exhaust Pipe No.4 Support	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
17565-15140	Bolt Or Ring, Exhaust Tail Pipe (For Front)	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
17565-55050	Support, Exhaust Pipe, No.1	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
17572-20070	Bracket, Exhaust Pipe No.1 Support	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
17573-20030	Bracket, Exhaust Pipe Support, No.3	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
17581-28030	Damper, Exhaust Pipe	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
17581-46070	Damper, Exhaust Pipe	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
90501-35032	SPRING COMPRESSION	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
90901-05031	BOLT	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
90917-06067	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
91511-80820	BOLT FLANGE	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
91553-80820	BOLTFLANGE	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)
91651-60835	Bolt(For Front Suspension Control Accumulator)	Exhaust Pipe ([11.2000 - ] (0011- )2AZFE)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 167
Collected: 2026-08-03
