Search › Model › ACT10

ACT10

Toyota OPA · 2000 · 3,749 parts · 194 categories

3,749 items

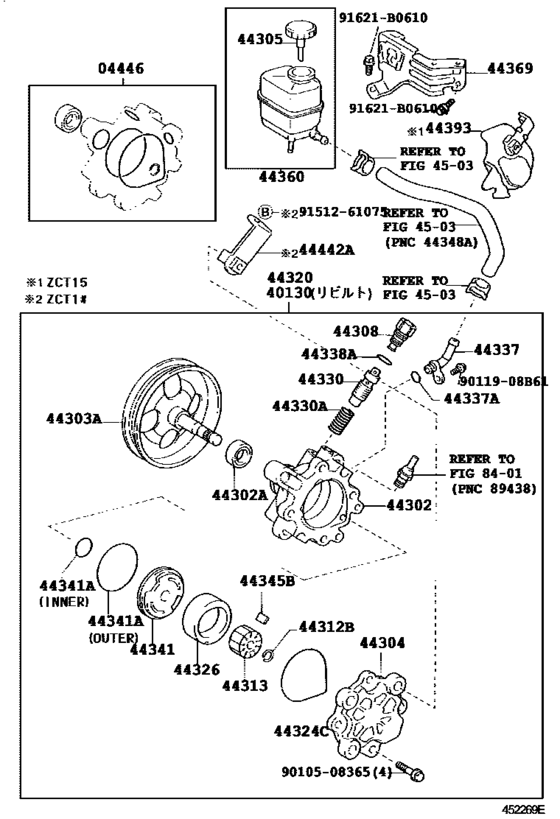

Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205)) 50

#	OEM	Part name
4446	04446-32050	Gasket Kit, Power Steering Pump
40130	40130-32300	Pump Assy,vane Rebuilt
40130	44310-32300	Pump Assy, Vane
40130	40130-63010	Pump Assy,vane Rebuilt
44302	44302-32100	Housing Sub-Assy, Vane Pump, Front
44302	90311-15012	Seal, Oil, No.1(For Vane Pump Housing)
44303	44303-28010	Shaft Sub-Assy, W/rotor
44304	44304-32041	Housing Sub-Assy, Vane Pump, Rear
44305	44305-20041	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-20050	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-32090	Union Sub-Assy, Pressure Port
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-32060	Rotor, Vane Pump
44313	44313-32070	Rotor, Vane Pump
44313	44313-32080	Rotor, Vane Pump
44313	44313-32090	Rotor, Vane Pump
44313	44313-32100	Rotor, Vane Pump
44320	44310-63010	Pump Assy, Vane
44324	90903-01007	Ring, O(For Pump Housing Rear)
44326	44325-32340	Ring, Cam(For Vane Pump)
44326	44325-32350	Ring, Cam(For Vane Pump)
44326	44325-32360	Ring, Cam(For Vane Pump)
44326	44325-32370	Ring, Cam(For Vane Pump)
44326	44325-32380	Ring, Cam(For Vane Pump)
44330	44330-32850	Valve Assy, Flow Control
44330	44330-32860	Valve Assy, Flow Control
44330	44330-32870	Valve Assy, Flow Control
44330	44330-32880	Valve Assy, Flow Control
44330	44330-32890	Valve Assy, Flow Control
44330	44330-3H010	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44337	44337-32110	Union, Power Steering Suction Port
44337	44337-48010	Union, Power Steering Suction Port
44337	90301-11020	Ring, O, No.1(For Vane Pump Housing)
44338	90301-18009	Ring, O(For Pressure Port Union)
44341	44341-32031	Plate, Vane Pump Side, Front
44341	90301-16012	Ring, O(For Vane Pump Front Side Plate)
44341	90301-45003	Ring, O(For Vane Pump Front Side Plate)
44345	44345-32100	Plate, Vane Pump
44345	44345-32110	Plate, Vane Pump
44345	44345-32120	Plate, Vane Pump
44345	44345-32130	Plate, Vane Pump
44345	44345-32140	Plate, Vane Pump
44360	44360-20150	Reservoir Assy, Vane Pump Oil
44369	44390-63010	Bracket, Oil Reservoir, No.1
91621	91621-B0610	New Genuine Part
91621	91651-B0612	Bolt
9011908	90119-08B61	New Genuine Part
9010508365	90105-08365	Bolt (For Transaxle Rear Cover Setting)
9151261075	91512-61075	New Genuine Part

OEM	Part name	Category
04446-32050	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
40130-32300	Pump Assy,vane Rebuilt	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
40130-63010	Pump Assy,vane Rebuilt	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44302-32100	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44303-28010	Shaft Sub-Assy, W/rotor	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44304-32041	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44305-20041	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44305-20050	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44308-32090	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44310-32300	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44310-63010	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44313-32060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44313-32070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44313-32080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44313-32090	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44313-32100	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44325-32340	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44325-32350	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44325-32360	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44325-32370	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44325-32380	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44330-32850	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44330-32860	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44330-32870	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44330-32880	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44330-32890	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44330-3H010	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44337-32110	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44337-48010	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44341-32031	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44345-32100	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44345-32110	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44345-32120	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44345-32130	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44345-32140	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44360-20150	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
44390-63010	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
90105-08365	Bolt (For Transaxle Rear Cover Setting)	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
90119-08B61	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
90301-11020	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
90301-16012	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
90301-18009	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
90301-45003	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
90311-15012	Seal, Oil, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
90903-01007	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
91512-61075	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
91621-B0610	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
91651-B0612	Bolt	Vane Pump & Reservoir (Power Steering) ([04.2000 - 05.2002] (0004-0205))
