ACT10

Toyota OPA · 2000 · 3,749 parts · 194 categories

3,749 items

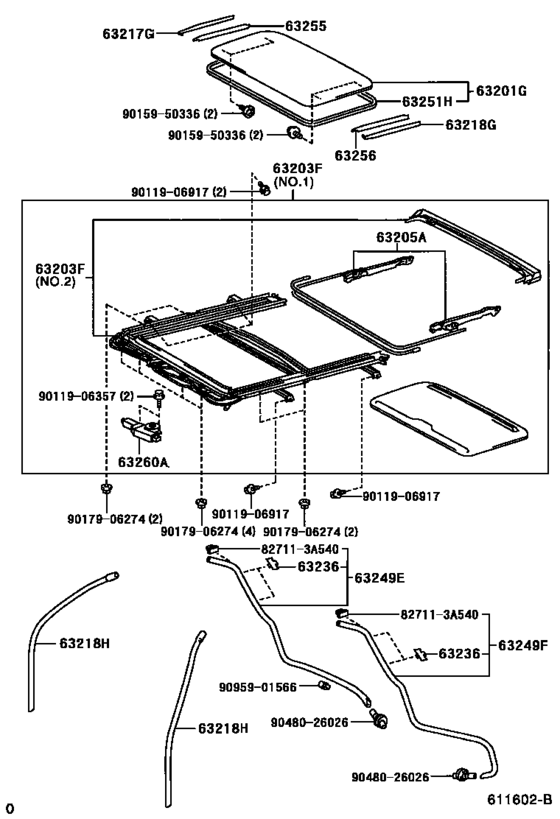

Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- )) 24

#	OEM	Part name
63201	63201-63010	Glass Sub-Assy, Sliding Roof
63201	63201-63011	Glass Sub-Assy, Sliding Roof
63203	63200-63010-B0	Housing Sub-Assy, Sliding Roof
63203	63200-63011-B0	Housing Sub-Assy, Sliding Roof
63203	63203-63010	Housing Sub-Assy, Sliding Roof
63205	63205-48010	Cable Sub-Assy, Sliding Roof Drive
63205	63205-63010	Cable Sub-Assy, Sliding Roof Drive
63217	63217-63010	Garnish, Sliding Roof Side, Rh
63218	63218-63010	Garnish, Sliding Roof Side, Lh
63218	63249-63010	Hose, Sliding Roof Drain
63236	63236-32010	Clamp, Sliding Roof Or Removable Roof Drain Hose
63249	63249-63020	Hose, Sliding Roof Drain
63249	63249-63030	Hose, Sliding Roof Drain
63251	63251-63010	Weatherstrip, Sliding Roof
63255	63255-63010	Cover, Sliding Roof Guide Rail, Rh
63256	63256-63010	Cover, Sliding Roof Guide Rail, Lh
63260	63260-63010	Gear Sub-Assy, Sliding Roof Drive
827113	82711-3A540	Clamp, Sliding Roof Drain Hose
9011906357	90119-06357	BOLT WWASHER
9011906917	90119-06917	New Genuine Part
9015950336	90159-50336	SCREW WWASHER
9017906274	90179-06274	Nut
9048026026	90480-26026	Grommet, Sliding Roof Drain
9095901566	90959-01566	New Genuine Part

OEM	Part name	Category
63200-63010-B0	Housing Sub-Assy, Sliding Roof	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
63200-63011-B0	Housing Sub-Assy, Sliding Roof	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
63201-63010	Glass Sub-Assy, Sliding Roof	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
63201-63011	Glass Sub-Assy, Sliding Roof	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
63203-63010	Housing Sub-Assy, Sliding Roof	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
63205-48010	Cable Sub-Assy, Sliding Roof Drive	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
63205-63010	Cable Sub-Assy, Sliding Roof Drive	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
63217-63010	Garnish, Sliding Roof Side, Rh	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
63218-63010	Garnish, Sliding Roof Side, Lh	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
63236-32010	Clamp, Sliding Roof Or Removable Roof Drain Hose	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
63249-63010	Hose, Sliding Roof Drain	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
63249-63020	Hose, Sliding Roof Drain	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
63249-63030	Hose, Sliding Roof Drain	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
63251-63010	Weatherstrip, Sliding Roof	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
63255-63010	Cover, Sliding Roof Guide Rail, Rh	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
63256-63010	Cover, Sliding Roof Guide Rail, Lh	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
63260-63010	Gear Sub-Assy, Sliding Roof Drive	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
82711-3A540	Clamp, Sliding Roof Drain Hose	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
90119-06357	BOLT WWASHER	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
90119-06917	New Genuine Part	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
90159-50336	SCREW WWASHER	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
90179-06274	Nut	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
90480-26026	Grommet, Sliding Roof Drain	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))
90959-01566	New Genuine Part	Roof Panel & Back Window Glass ([05.2002 - ] ﾑ-ﾝﾙ-ﾌ (0205- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 194
Collected: 2026-08-04
