ACR55

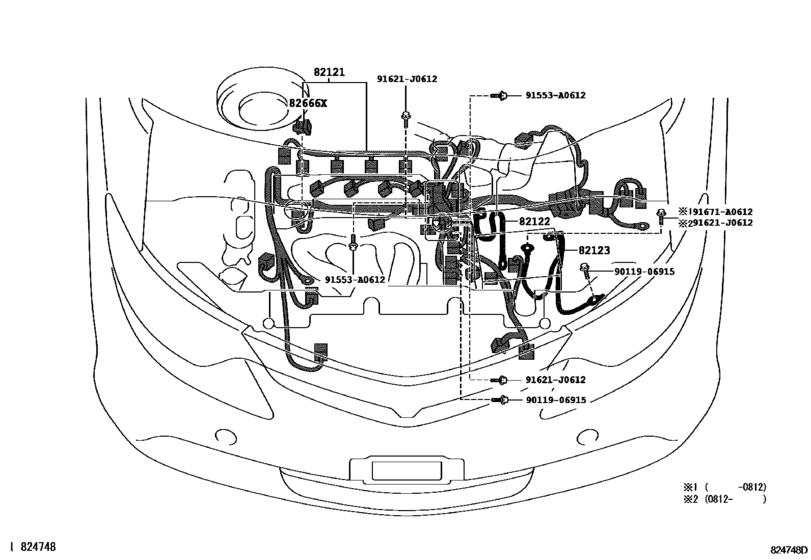

Wiring & Clamp ([01.2006 - ] ｴﾝｼﾞﾝ (0601- )ACR5#) 8
| # | OEM | Part name |
|---|---|---|
| 82121 | 82121-28A43 | Wire, Engine |
| 82122 | 82122-28590 | Wire, Engine, No.2 |
| 82123 | 82123-28440 | Wire, Engine, No.3 |
| 82666 | 82666-42250 | Holder, Connector No.3 |
| 91553 | 91553-A0612 | New Genuine Part |
| 91621 | 91621-J0612 | BOLT W-WASHER |
| 91671 | 91671-A0612 | BOLT FLANGE |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 82121-28A43 | Wire, Engine | Wiring & Clamp ([01.2006 - ] ｴﾝｼﾞﾝ (0601- )ACR5#) |
| 82122-28590 | Wire, Engine, No.2 | Wiring & Clamp ([01.2006 - ] ｴﾝｼﾞﾝ (0601- )ACR5#) |
| 82123-28440 | Wire, Engine, No.3 | Wiring & Clamp ([01.2006 - ] ｴﾝｼﾞﾝ (0601- )ACR5#) |
| 82666-42250 | Holder, Connector No.3 | Wiring & Clamp ([01.2006 - ] ｴﾝｼﾞﾝ (0601- )ACR5#) |
| 90119-06915 | BOLT W-WASHER | Wiring & Clamp ([01.2006 - ] ｴﾝｼﾞﾝ (0601- )ACR5#) |
| 91553-A0612 | New Genuine Part | Wiring & Clamp ([01.2006 - ] ｴﾝｼﾞﾝ (0601- )ACR5#) |
| 91621-J0612 | BOLT W-WASHER | Wiring & Clamp ([01.2006 - ] ｴﾝｼﾞﾝ (0601- )ACR5#) |
| 91671-A0612 | BOLT FLANGE | Wiring & Clamp ([01.2006 - ] ｴﾝｼﾞﾝ (0601- )ACR5#) |
