| 30400-79005 |
Transaxle Assy, Continuously Variable |

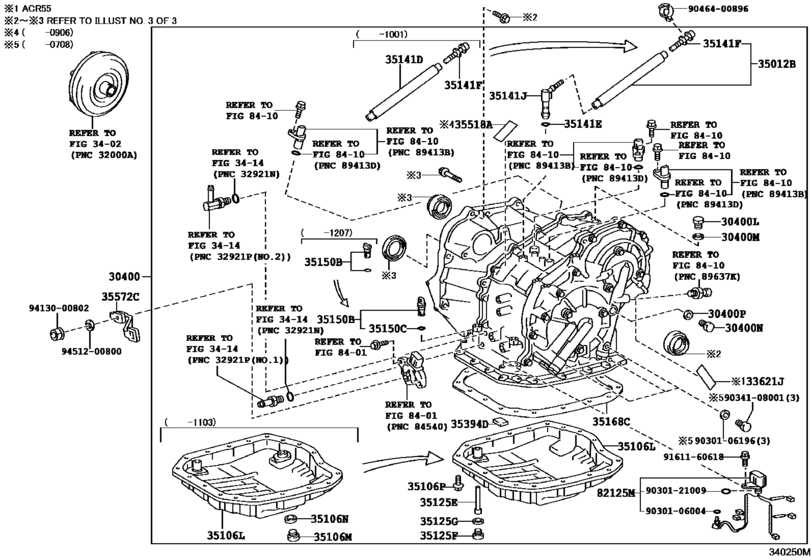

Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 33621-28021 |
Label, Transaxle Oil Information |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 35106-44024 |
Pan Sub-Assy, Transaxle Oil(Cvt) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 35125-44071 |
Tube, Transmission Oil Filler, No.1 |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 35150-48010 |
Plug, Transaxle Hole |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 35168-20010 |
Gasket, Transaxle Oil Pan(Cvt) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 35394-30011 |
Magnet, Oil Cleaner (For Transmission) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 35572-42030 |
Lever, Transmission Control Shaft |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 82125-44020 |
Wire, Transmission |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 90119-06173 |
Bolt, Stud (For Automatic Transmission Oil Pan Setting) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 90170-A0001 |
New Genuine Part |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 90301-06004 |
Ring, O No.3(For Transmission Solenoid) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 90301-06021 |
Ring, O (For Breather Plug) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 90301-06196 |
O Ring, Transaxle Case, No.1 |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 90301-09173 |
Ring, O(For Transmission Oil Filler Tube) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 90301-21009 |
Ring, O(For Transmission Wire) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 90341-08001 |
Plug, Transaxle Case, No.1 |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 90341-12034 |
Plug Sub-Assy, Drain (Atm) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 90341-18077 |
Plug , Filler(CVT FE) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 90430-12008 |
Gasket (For Shift Inter Lock Plate) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 90430-18008 |
Gasket |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 90430-T0021 |
Gasket(For Manual Transmission Filler Plug) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 90464-00896 |
Clamp, Ventilation Hose, No.2 |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 90930-03149 |
Plug Sub-Assy, Breather(For Transmission) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 90930-03164 |
Plug, Breather(For Transaxle) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 91611-60618 |
Bolt(For Oil Receiver Pipe) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 94130-00802 |
Nut, No.1 (For Center Support Bearing) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
| 94512-00800 |
Washer, No.1 (For Propeller Shaft & Differential Setting) |
Transaxle Assy(Cvt) ([08.2008 - ] K112,K112F (0601- )ACR50 ; (0808- )ACR55) |
