ACR55

Toyota ESTIMA-EMINA-LUCIDA · 2006 · 3,755 parts · 203 categories

3,755 items

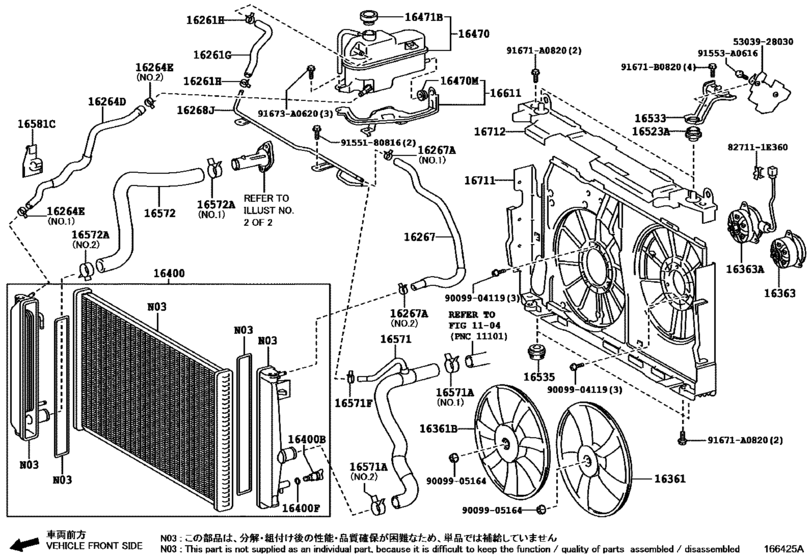

Radiator & Water Outlet ([05.2016 - ] (1605- )) 51

#	OEM	Part name
0	82711-1E360	Clamp, Wiring Harness
16258	16258-28030	Gasket(For Heater Return)
16261	16261-28080	Hose, Water By-Pass, No.1
16261	90467-15022	Clip Or Clamp(For Ventilation Hose)
16261	16261-28090	Hose, Water By-Pass
16261	96135-51300	Clamp, Hose
16261	96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16264	16264-28200	Hose, Water By-Pass, No.2
16264	96134-51700	Clip Or Clamp(For Ventilation Hose)
16264	96136-51901	Clip(For Water By-Pass Hose No.2)
16264	16264-28120	Hose, Water By-Pass, No.2
16267	16267-28180	Hose, Water By-Pass, No.3
16268	16268-28120	Pipe, Water By-Pass, No.1
16268	16268-28010	Pipe, Water By-Pass, No.1
16321	16321-28020	Inlet, Water
16325	16325-28010	Gasket, Water Inlet Housing, No.1
16331	90916-03136	Thermostat
16361	16361-28370	Fan
16361	16361-28380	Fan, No.2
16363	16363-36200	Motor, Cooling Fan
16363	16363-36210	Motor, Cooling Fan, No.2
16400	16400-28561	Radiator Assy
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16470	16470-28140	Tank Assy, Radiator Reserve
16470	90480-16044	Grommet
16471	16475-28140	Cap Sub-Assy, Radiator Reserve Tank
16523	16523-28030	Cushion, Radiator Support
16533	16533-28041	Support, Radiator, Upper
16535	16535-20030	Support, Radiator, Lower
16571	16571-28260	Hose, Radiator, Inlet
16571	90466-37002	Clamp Or Clip, Hose(For Radiator Inlet)
16571	90466-41008	Clamp, Hose(For Radiator Hose)
16571	96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16572	16572-28220	Hose, Radiator, Outlet
16581	16581-28030	Clamp, Hose(For Radiator Hose No.2)
16611	16611-28040	Bracket, Radiator Reserve Tank
16711	16711-28430	Shroud, Fan
16712	16712-28140	Shroud, Fan, No.2
91553	91553-A0616	New Genuine Part
91631	91631-G0614	BOT WWASHER
91671	91671-A0820	New Genuine Part
91671	91671-B0820	New Genuine Part
91673	91673-A0620	BOLT FLANGE
5303928030	53039-28030	Seal, Radiator, Upper
9009904119	90099-04119	BOLT WASHER HEAD
9009905164	90099-05164	Nut
9011606127	90116-06127	Bolt, Stud(For Oil Pan)
9012606024	90126-06024	STUD HEX LOBULAR
9155180816	91551-80816	Bolt(For Manual Transmission Oil Separator)
9415080640	94150-80640	NUT FLANGE

OEM	Part name	Category
16258-28030	Gasket(For Heater Return)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16261-28080	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16261-28090	Hose, Water By-Pass	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16264-28120	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16264-28200	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16267-28180	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16268-28010	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16268-28120	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16321-28020	Inlet, Water	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16325-28010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16361-28370	Fan	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16361-28380	Fan, No.2	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16363-36200	Motor, Cooling Fan	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16363-36210	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16400-28561	Radiator Assy	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16470-28140	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16475-28140	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16523-28030	Cushion, Radiator Support	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16533-28041	Support, Radiator, Upper	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16535-20030	Support, Radiator, Lower	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16571-28260	Hose, Radiator, Inlet	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16572-28220	Hose, Radiator, Outlet	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16581-28030	Clamp, Hose(For Radiator Hose No.2)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16611-28040	Bracket, Radiator Reserve Tank	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16711-28430	Shroud, Fan	Radiator & Water Outlet ([05.2016 - ] (1605- ))
16712-28140	Shroud, Fan, No.2	Radiator & Water Outlet ([05.2016 - ] (1605- ))
53039-28030	Seal, Radiator, Upper	Radiator & Water Outlet ([05.2016 - ] (1605- ))
82711-1E360	Clamp, Wiring Harness	Radiator & Water Outlet ([05.2016 - ] (1605- ))
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([05.2016 - ] (1605- ))
90099-05164	Nut	Radiator & Water Outlet ([05.2016 - ] (1605- ))
90116-06127	Bolt, Stud(For Oil Pan)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
90126-06024	STUD HEX LOBULAR	Radiator & Water Outlet ([05.2016 - ] (1605- ))
90466-37002	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
90466-41008	Clamp, Hose(For Radiator Hose)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
90480-16044	Grommet	Radiator & Water Outlet ([05.2016 - ] (1605- ))
90916-03136	Thermostat	Radiator & Water Outlet ([05.2016 - ] (1605- ))
91551-80816	Bolt(For Manual Transmission Oil Separator)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
91553-A0616	New Genuine Part	Radiator & Water Outlet ([05.2016 - ] (1605- ))
91631-G0614	BOT WWASHER	Radiator & Water Outlet ([05.2016 - ] (1605- ))
91671-A0820	New Genuine Part	Radiator & Water Outlet ([05.2016 - ] (1605- ))
91671-B0820	New Genuine Part	Radiator & Water Outlet ([05.2016 - ] (1605- ))
91673-A0620	BOLT FLANGE	Radiator & Water Outlet ([05.2016 - ] (1605- ))
94150-80640	NUT FLANGE	Radiator & Water Outlet ([05.2016 - ] (1605- ))
96134-51700	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
96135-51300	Clamp, Hose	Radiator & Water Outlet ([05.2016 - ] (1605- ))
96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
96136-51901	Clip(For Water By-Pass Hose No.2)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([05.2016 - ] (1605- ))
