Search › Model › ACR50
ACR50

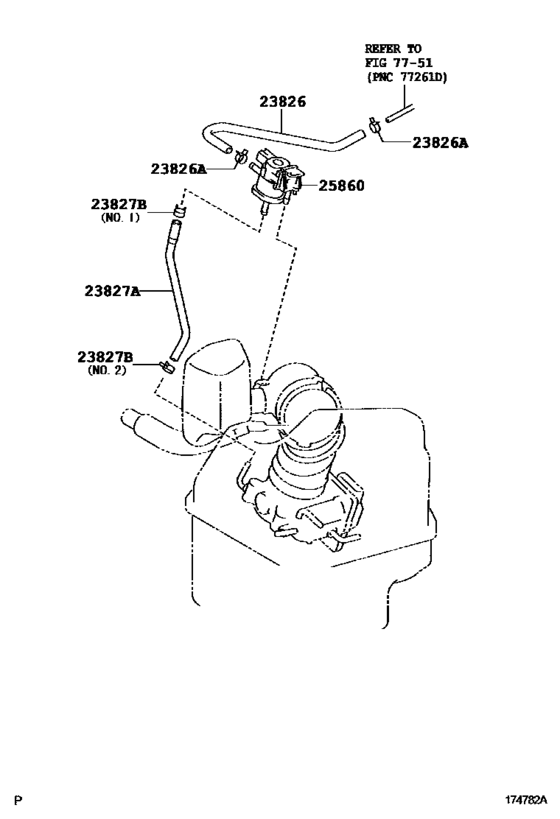

Vacuum Piping ([01.2006 - ] (0601- )2AZFE) 6
| # | OEM | Part name |
|---|---|---|
| 23826 | 23826-28350 | Hose, Fuel Vapor Feed, No.1 |
| 23826 | 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) |
| 23826 | 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) |
| 23827 | 23827-28300 | Hose, Fuel Vapor Feed, No.2 |
| 23827 | 96132-41000 | Clip, No.1(For Idle-Up Hose) |
| 25860 | 25860-28140 | Valve Assy, Vacuum Switching, No.1 |
| OEM | Part name | Category |
|---|---|---|
| 23826-28350 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([01.2006 - ] (0601- )2AZFE) |
| 23827-28300 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([01.2006 - ] (0601- )2AZFE) |
| 25860-28140 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([01.2006 - ] (0601- )2AZFE) |
| 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) | Vacuum Piping ([01.2006 - ] (0601- )2AZFE) |
| 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) | Vacuum Piping ([01.2006 - ] (0601- )2AZFE) |
| 96132-41000 | Clip, No.1(For Idle-Up Hose) | Vacuum Piping ([01.2006 - ] (0601- )2AZFE) |
