ACR50

Toyota ESTIMA-EMINA-LUCIDA · 2006 · 3,448 parts · 196 categories

← Back to categories

3,448 items

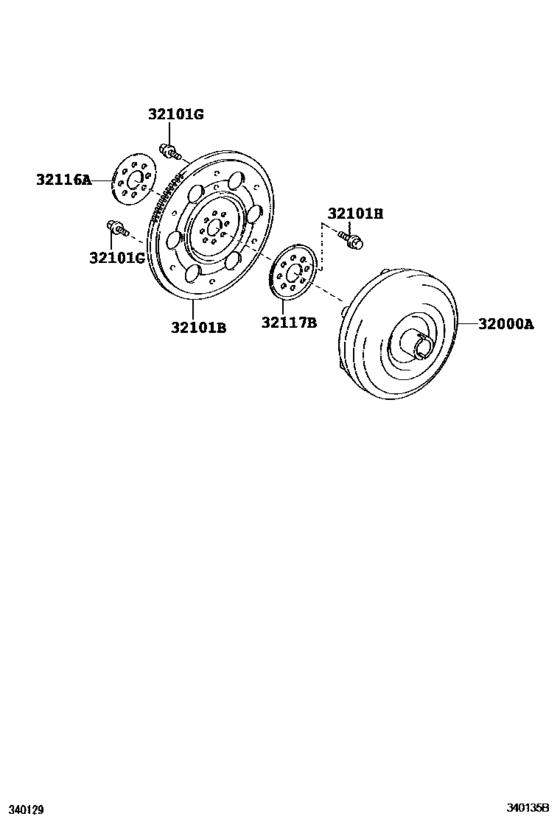

Torque Converter, Front Oil Pump(Cvt) ([01.2006 - ] K112,K112F (0601- )ACR5#) 8

#	OEM	Part name
32000	32000-42050	Converter Assy, Torque
32101	32101-28040	Gear Sub-Assy, Drive Plate & Ring
32101	90109-09001	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-09025	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-12184	Bolt, Flywheel Setting
32101	90105-12384	Bolt, Flywheel Setting
32116	32116-20050	Spacer, Drive Plate, Front
32117	32117-20060	Spacer, Drive Plate, Rear

OEM	Part name	Category
32000-42050	Converter Assy, Torque	Torque Converter, Front Oil Pump(Cvt) ([01.2006 - ] K112,K112F (0601- )ACR5#)
32101-28040	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump(Cvt) ([01.2006 - ] K112,K112F (0601- )ACR5#)
32116-20050	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump(Cvt) ([01.2006 - ] K112,K112F (0601- )ACR5#)
32117-20060	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump(Cvt) ([01.2006 - ] K112,K112F (0601- )ACR5#)
90105-12184	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump(Cvt) ([01.2006 - ] K112,K112F (0601- )ACR5#)
90105-12384	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump(Cvt) ([01.2006 - ] K112,K112F (0601- )ACR5#)
90109-09001	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump(Cvt) ([01.2006 - ] K112,K112F (0601- )ACR5#)
90119-09025	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump(Cvt) ([01.2006 - ] K112,K112F (0601- )ACR5#)
