Search › Model › ACR50

ACR50

Toyota ESTIMA-EMINA-LUCIDA · 2006 · 3,448 parts · 196 categories

3,448 items

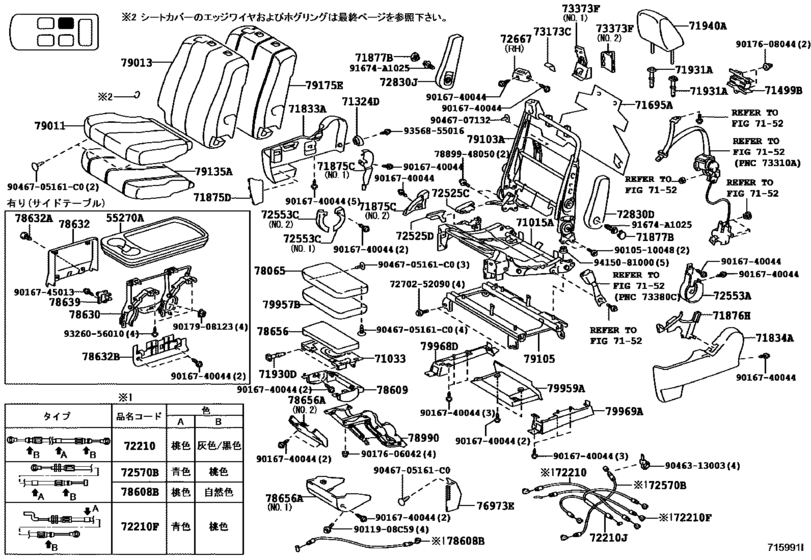

Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S) 91

#	OEM	Part name
71015	71015-28160	Frame Sub-Assy, Rear Seat Cushion, Rh
71033	71033-28131	Leg Sub-Assy, Rear Seat Cushion
71324	71324-28150	Cushion, Rear Seat, Rh
71499	71499-28050	Damper, Seat Cushion Spring
71695	71695-28140	Protector, Rear Seat, No.1 Rh
71833	71825-28040-C0	Cover, Rear Seat Reclining, No.1 Rh
71834	71826-28010-C0	Cover, Rear Seat Reclining, No.1 Lh
71875	71875-28190-C0	Cover, Reclining Adjuster Inside, Rh
71875	71875-28240-C0	Cover, Reclining Adjuster Inside, Rh
71875	71875-28130-C0	Cover, Reclining Adjuster Outside, Rh
71876	71876-28180-C0	Cover, Reclining Adjuster Inside, Lh (For Rh Seat)
71877	72848-28030-C0	Cover, Rear Seat Armrest Hole Rh
71877	72848-28030-E8	Cover, Rear Seat Armrest Hole Rh
71877	72848-28030-A2	Cover, Rear Seat Armrest Hole Rh
71877	72848-28030-A8	Cover, Rear Seat Armrest Hole Rh
71930	71930-42020-C0	Support Assy, Rear Seat Legrest
71930	71930-52030-C0	Support Assy, Front Seat Headrest
71931	71930-52030-L2	Support, Front Seat Headrest
71931	71931-42020-C0	Support Assy, Front Seat Headrest
71931	71931-42020-L9	Support, Front Seat Headrest
71931	71930-52030-A2	Support, Front Seat Headrest
71931	71931-42020-A5	Support, Front Seat Headrest
71940	71940-28K00-C0	Headrest Assy, Rear Seat
71940	71940-28K00-E1	Headrest Assy, Rear Seat
71940	71940-28K00-E0	Headrest Assy, Rear Seat
71940	71940-28K10-A1	Headrest Assy, Rear Seat
72210	72210-28280	Cable Assy, Seat Track Control
72210	72210-28250	Cable Assy, Seat Track Control
72210	72210-28260	Cable Assy, Seat Track Control
72525	72525-28120-C0	Handle, Reclining Adjuster Release, No.1 Rh
72525	72525-58060-C0	Handle, Reclining Adjuster Release, No.1 Rh
72553	72553-28050-C0	Protector, Reclining Cover, Rh
72553	72554-28050-C0	Protector, Reclining Cover, Rh
72553	72554-28070-C0	Protector, Reclining Cover, Rh
72570	72570-28020	Cable Assy, Reclining Adjusting, Rh
72667	72667-28030-C0	Bezel, Rear Seat Back Lock, Upper
72667	72667-28040-C0	Bezel, Rear Seat Back Lock, Upper
72830	72890-28L80-C1	Armrest Assy, Rear Seat, Rh
72830	72890-28L80-E4	Armrest Assy, Rear Seat, Rh
72830	72880-28L60-C1	Armrest Assy, Rear No.1 Seat, Rh
72830	72880-28L60-E4	Armrest Assy, Rear No.1 Seat, Rh
72830	72890-28L10-A1	Armrest Assy, Rear Seat, Rh
72830	72890-28L80-E3	Armrest Assy, Rear Seat, Rh
72830	72880-28K90-A1	Armrest Assy, Rear No.1 Seat, Rh
72830	72880-28L60-E3	Armrest Assy, Rear No.1 Seat, Rh
73173	73173-28040-C0	Cover, Rear Seat Belt Hole, Rh
73373	73373-28010	Cover, Rear Seat Shoulder Belt Hole
73373	73373-28040	Cover, Rear Seat Shoulder Belt Hole, Rh
76973	76971-28010	Cover, Rear Under Side, Rh
78065	78065-28320-C1	Cover Sub-Assy, Rear Seat Legrest
78065	78065-28320-E1	Cover Sub-Assy, Rear Seat Legrest
78065	78065-28300-A1	Cover Sub-Assy, Rear Seat Legrest
78065	78065-28310-E0	Cover Sub-Assy, Rear Seat Legrest
78608	78608-28010	Cable Sub-Assy, Legrest Lock Control
78609	78609-28010-C0	Cover Sub-Assy, Rear Seat Legrest Lock
78656	78656-28110-C0	Cover, Rear Seat Legrest
78656	78656-28140-C0	Cover, Rear Seat Legrest
78656	78656-28151-C0	Cover, Rear Seat Legrest
78990	78990-28010	Adjuster Assy, Rear Seat Footrest
79011	71075-28A70-C3	Cover Sub-Assy, No.1 Seat Cushion, Rh
79011	71075-28A70-E3	Cover Sub-Assy, No.1 Seat Cushion, Rh
79011	71075-28A50-E2	Cover Sub-Assy, No.1 Seat Cushion, Rh
79011	71075-28A60-A3	Cover Sub-Assy, No.1 Seat Cushion, Rh
79013	71077-28B20-C2	Cover Sub-Assy, No.1 Seat Back, Rh
79013	71077-28B20-E2	Cover Sub-Assy, No.1 Seat Back, Rh
79013	71077-28B00-E1	Cover Sub-Assy, No.1 Seat Back, Rh
79013	71077-28B10-A2	Cover Sub-Assy, No.1 Seat Back, Rh
79103	71017-28130	Frame Sub-Assy, No.1 Seat Back, Rh
79105	79105-28320	Leg Sub-Assy, No.1 Seat, Rh
79135	71611-28200	Pad, No.1 Seat Cushion, Rh
79175	71651-28200	Pad, No.1 Seat Back, Rh
79957	79957-28012	Pad, Rear Seat Leg Side
79959	79959-28170-C0	Cover, Rear Seat Leg, Rh
79968	79968-28060-C0	Cover, Rear Seat Leg Side, No.5, Rh
79969	79969-28030-C0	Cover, Rear Seat Leg Side, No.6, Rh
91674	91674-A1025	BOLT FLANGE
9011908	90119-08C59	New Genuine Part
7270252090	72702-52090	Bracket Sub-assy, Rear Seat Back Striker
7889948050	78899-48050	Bolt, Front Seat
9010510048	90105-10048	Bolt, Flywheel Setting
9016740044	90167-40044	BOLT
9016745013	90167-45013	New Genuine Part
9017606042	90176-06042	BRACKET
9017608044	90176-08044	NUT
9017908123	90179-08123	Nut (For Front Wiper Arm Setting)
9046313003	90463-13003	Clamp, Hood Lock Control Wire
9046705161	90467-05161-C0	Clip
9046707132	90467-07132	Clip
9326056010	93260-56010	SCREW
9356855016	93568-55016	Screw
9415081000	94150-81000	NUT FLANGE

OEM	Part name	Category
71015-28160	Frame Sub-Assy, Rear Seat Cushion, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71017-28130	Frame Sub-Assy, No.1 Seat Back, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71033-28131	Leg Sub-Assy, Rear Seat Cushion	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71075-28A50-E2	Cover Sub-Assy, No.1 Seat Cushion, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71075-28A60-A3	Cover Sub-Assy, No.1 Seat Cushion, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71075-28A70-C3	Cover Sub-Assy, No.1 Seat Cushion, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71075-28A70-E3	Cover Sub-Assy, No.1 Seat Cushion, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71077-28B00-E1	Cover Sub-Assy, No.1 Seat Back, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71077-28B10-A2	Cover Sub-Assy, No.1 Seat Back, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71077-28B20-C2	Cover Sub-Assy, No.1 Seat Back, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71077-28B20-E2	Cover Sub-Assy, No.1 Seat Back, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71324-28150	Cushion, Rear Seat, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71499-28050	Damper, Seat Cushion Spring	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71611-28200	Pad, No.1 Seat Cushion, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71651-28200	Pad, No.1 Seat Back, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71695-28140	Protector, Rear Seat, No.1 Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71825-28040-C0	Cover, Rear Seat Reclining, No.1 Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71826-28010-C0	Cover, Rear Seat Reclining, No.1 Lh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71875-28130-C0	Cover, Reclining Adjuster Outside, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71875-28190-C0	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71875-28240-C0	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71876-28180-C0	Cover, Reclining Adjuster Inside, Lh (For Rh Seat)	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71930-42020-C0	Support Assy, Rear Seat Legrest	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71930-52030-A2	Support, Front Seat Headrest	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71930-52030-C0	Support Assy, Front Seat Headrest	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71930-52030-L2	Support, Front Seat Headrest	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71931-42020-A5	Support, Front Seat Headrest	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71931-42020-C0	Support Assy, Front Seat Headrest	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71931-42020-L9	Support, Front Seat Headrest	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71940-28K00-C0	Headrest Assy, Rear Seat	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71940-28K00-E0	Headrest Assy, Rear Seat	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71940-28K00-E1	Headrest Assy, Rear Seat	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
71940-28K10-A1	Headrest Assy, Rear Seat	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72210-28250	Cable Assy, Seat Track Control	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72210-28260	Cable Assy, Seat Track Control	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72210-28280	Cable Assy, Seat Track Control	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72525-28120-C0	Handle, Reclining Adjuster Release, No.1 Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72525-58060-C0	Handle, Reclining Adjuster Release, No.1 Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72553-28050-C0	Protector, Reclining Cover, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72554-28050-C0	Protector, Reclining Cover, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72554-28070-C0	Protector, Reclining Cover, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72570-28020	Cable Assy, Reclining Adjusting, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72667-28030-C0	Bezel, Rear Seat Back Lock, Upper	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72667-28040-C0	Bezel, Rear Seat Back Lock, Upper	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72702-52090	Bracket Sub-assy, Rear Seat Back Striker	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72848-28030-A2	Cover, Rear Seat Armrest Hole Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72848-28030-A8	Cover, Rear Seat Armrest Hole Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72848-28030-C0	Cover, Rear Seat Armrest Hole Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72848-28030-E8	Cover, Rear Seat Armrest Hole Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72880-28K90-A1	Armrest Assy, Rear No.1 Seat, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72880-28L60-C1	Armrest Assy, Rear No.1 Seat, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72880-28L60-E3	Armrest Assy, Rear No.1 Seat, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72880-28L60-E4	Armrest Assy, Rear No.1 Seat, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72890-28L10-A1	Armrest Assy, Rear Seat, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72890-28L80-C1	Armrest Assy, Rear Seat, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72890-28L80-E3	Armrest Assy, Rear Seat, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
72890-28L80-E4	Armrest Assy, Rear Seat, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
73173-28040-C0	Cover, Rear Seat Belt Hole, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
73373-28010	Cover, Rear Seat Shoulder Belt Hole	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
73373-28040	Cover, Rear Seat Shoulder Belt Hole, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
76971-28010	Cover, Rear Under Side, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
78065-28300-A1	Cover Sub-Assy, Rear Seat Legrest	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
78065-28310-E0	Cover Sub-Assy, Rear Seat Legrest	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
78065-28320-C1	Cover Sub-Assy, Rear Seat Legrest	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
78065-28320-E1	Cover Sub-Assy, Rear Seat Legrest	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
78608-28010	Cable Sub-Assy, Legrest Lock Control	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
78609-28010-C0	Cover Sub-Assy, Rear Seat Legrest Lock	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
78656-28110-C0	Cover, Rear Seat Legrest	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
78656-28140-C0	Cover, Rear Seat Legrest	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
78656-28151-C0	Cover, Rear Seat Legrest	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
78899-48050	Bolt, Front Seat	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
78990-28010	Adjuster Assy, Rear Seat Footrest	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
79105-28320	Leg Sub-Assy, No.1 Seat, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
79957-28012	Pad, Rear Seat Leg Side	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
79959-28170-C0	Cover, Rear Seat Leg, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
79968-28060-C0	Cover, Rear Seat Leg Side, No.5, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
79969-28030-C0	Cover, Rear Seat Leg Side, No.6, Rh	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
90105-10048	Bolt, Flywheel Setting	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
90119-08C59	New Genuine Part	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
90167-40044	BOLT	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
90167-45013	New Genuine Part	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
90176-06042	BRACKET	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
90176-08044	NUT	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
90179-08123	Nut (For Front Wiper Arm Setting)	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
90463-13003	Clamp, Hood Lock Control Wire	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
90467-05161-C0	Clip	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
90467-07132	Clip	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
91674-A1025	BOLT FLANGE	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
93260-56010	SCREW	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
93568-55016	Screw	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)
94150-81000	NUT FLANGE	Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1 ｼｰﾄ(RH) (0812- )07S)

Source: Public OEM parts-catalog data
Variants: 2 / 9
Category: 196
Collected: 2026-08-03
