| 11701-28010-01 |
Bearing Set, Crankshaft |

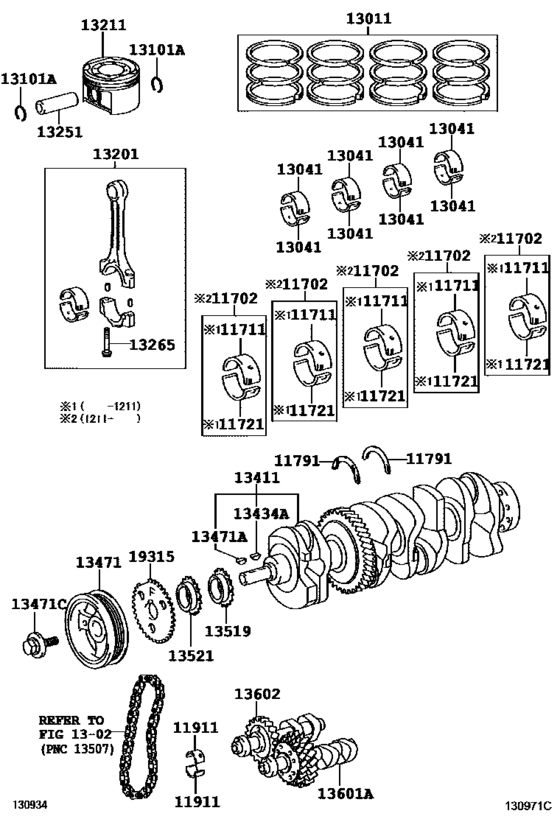

Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 11701-28010-02 |
Bearing Set, Crankshaft |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 11701-28010-03 |
Bearing Set, Crankshaft |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 11701-28010-04 |
Bearing Set, Crankshaft |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 11791-28020 |
Washer, Crankshaft Thrust, Upper |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 11911-28011-01 |
Bearing, Balanceshaft, No.1 |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 11911-28011-02 |
Bearing, Balanceshaft, No.1 |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 11911-28011-03 |
Bearing, Balanceshaft, No.1 |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13011-28260 |
Ring Set, Piston |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13201-29686-A0 |
Rod Sub-Assy, Connecting |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13201-29686-B0 |
Rod Sub-Assy, Connecting |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13201-29686-C0 |
Rod Sub-Assy, Connecting |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13211-28141-A0 |
Piston |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13211-28141-B0 |
Piston |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13211-28141-C0 |
Piston |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13251-28020-A0 |
Pin, Piston |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13251-28020-B0 |
Pin, Piston |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13251-28020-C0 |
Pin, Piston |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13265-28010 |
Bolt, Connecting Rod |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13265-28020 |
BOLT CONNECTING ROD |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13281-28011-01 |
Bearing, Connecting Rod |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13281-28011-02 |
Bearing, Connecting Rod |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13281-28011-03 |
Bearing, Connecting Rod |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13401-28010 |
Crankshaft |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13470-28020 |
Pulley, Crankshaft |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13519-28010 |
Gear, Oil Pump Drive |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13521-28030 |
Gear Or Sprocket, Crankshaft Timing |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13601-28021 |
Balanceshaft Sub-Assy, No.1 |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 13602-28020 |
Balanceshaft Sub-Assy, No.2 |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 19315-28010 |
Plate, Crank Angle Sensor, No.1 |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 90119-14175 |
Bolt(For Crankshaft Pulley Set) |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 90520-22025 |
Ring, Hole Snap(For Piston Pin) |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
| 95161-30416 |
Pin, Straight(For Crankshaft) |
Crankshaft & Piston ([01.2006 - ] (0601- )2AZFE) |
