ACN10

Toyota NADIA · 2001 · 3,579 parts · 180 categories

← Back to categories

3,579 items

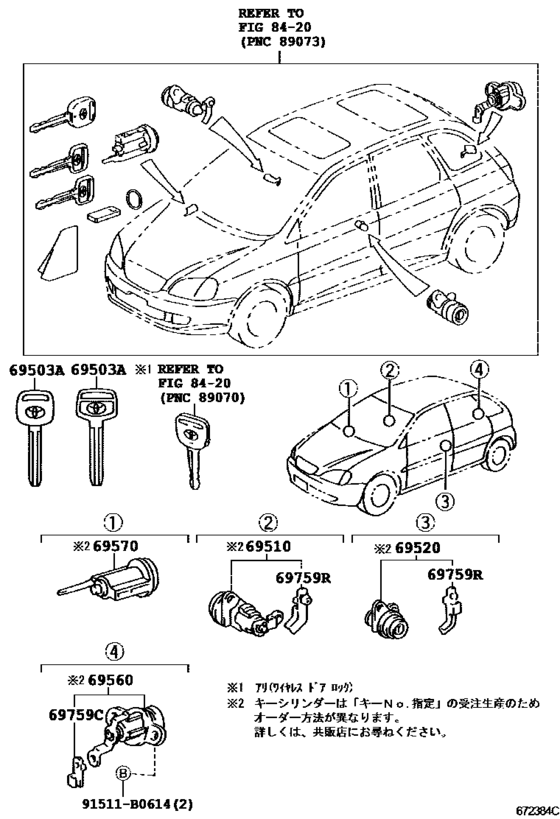

Lock Cylinder Set ([04.2001 - ] (0104- )) 11

#	OEM	Part name
69503	90999-00186	Key, Blank
69510	69510-44010	Cylinder Assy, Front Door Lock, Rh
69520	69520-44020	Cylinder Assy, Front Door Lock, Lh
69560	69560-44040	Cylinder Assy, Back Door Lock
69570	69570-44030	Cylinder Assy, Ignition Switch Lock
69759	69759-24090	Snap, Front Door Lock Control Rod
69759	69759-44010	Snap, Front Door Lock Cylinder
69759	69759-12080	Snap, Front Door Lock Cylinder
69759	69759-44020	Snap, Front Door Lock Cylinder
69759	69759-12090	Snap, Front Door Lock Cylinder
91511	91511-B0614	BOLT, FLANGE

OEM	Part name	Category
69510-44010	Cylinder Assy, Front Door Lock, Rh	Lock Cylinder Set ([04.2001 - ] (0104- ))
69520-44020	Cylinder Assy, Front Door Lock, Lh	Lock Cylinder Set ([04.2001 - ] (0104- ))
69560-44040	Cylinder Assy, Back Door Lock	Lock Cylinder Set ([04.2001 - ] (0104- ))
69570-44030	Cylinder Assy, Ignition Switch Lock	Lock Cylinder Set ([04.2001 - ] (0104- ))
69759-12080	Snap, Front Door Lock Cylinder	Lock Cylinder Set ([04.2001 - ] (0104- ))
69759-12090	Snap, Front Door Lock Cylinder	Lock Cylinder Set ([04.2001 - ] (0104- ))
69759-24090	Snap, Front Door Lock Control Rod	Lock Cylinder Set ([04.2001 - ] (0104- ))
69759-44010	Snap, Front Door Lock Cylinder	Lock Cylinder Set ([04.2001 - ] (0104- ))
69759-44020	Snap, Front Door Lock Cylinder	Lock Cylinder Set ([04.2001 - ] (0104- ))
90999-00186	Key, Blank	Lock Cylinder Set ([04.2001 - ] (0104- ))
91511-B0614	BOLT, FLANGE	Lock Cylinder Set ([04.2001 - ] (0104- ))
