ACM26

Toyota IPSUM · 2001 · 5,286 parts · 249 categories

← Back to categories

5,286 items

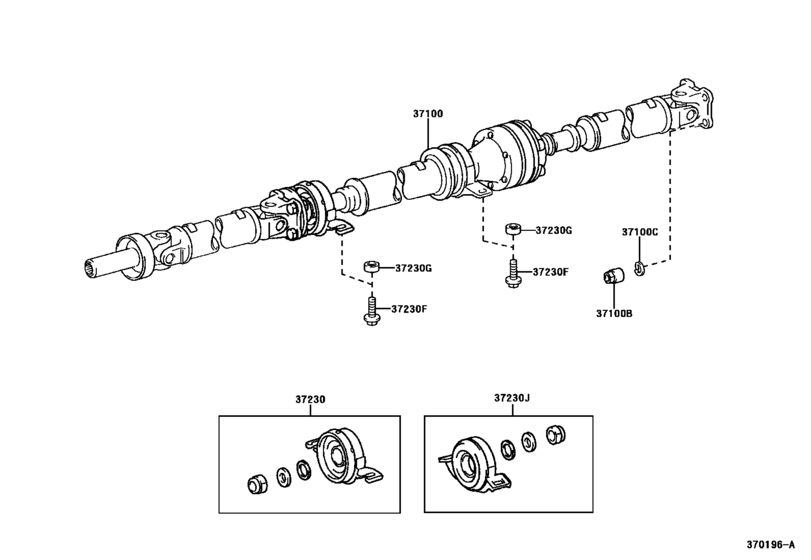

Propeller Shaft & Universal Joint ([05.2001 - ] (0105- )ACM26) 11

#	OEM	Part name
37100	37100-44030	Shaft Assy, Propeller W/center Bearing
37100	90179-08268	Nut, No.1 (For Propeller Shaft & Differential Setting)
37100	90204-10002	Washer, No.1 (For Propeller Shaft & Differential Setting)
37100	90560-10H00	Washer, No.1 (For Propeller Shaft & Differential Setting)
37100	90560-10102	Washer, No.1 (For Propeller Shaft & Differential Setting)
37230	37230-29015	Bearing Assy, Center Support, No.1
37230	90119-10444	Bolt, No.1 (For Center Support Bearing)
37230	90201-10081	Washer, No.1 (For Center Support Bearing)
37230	90201-10083	Washer, No.1 (For Center Support Bearing)
37230	90201-10084	Washer, No.1 (For Center Support Bearing)
37230	90201-10095	Washer, No.1 (For Center Support Bearing)

OEM	Part name	Category
37100-44030	Shaft Assy, Propeller W/center Bearing	Propeller Shaft & Universal Joint ([05.2001 - ] (0105- )ACM26)
37230-29015	Bearing Assy, Center Support, No.1	Propeller Shaft & Universal Joint ([05.2001 - ] (0105- )ACM26)
90119-10444	Bolt, No.1 (For Center Support Bearing)	Propeller Shaft & Universal Joint ([05.2001 - ] (0105- )ACM26)
90179-08268	Nut, No.1 (For Propeller Shaft & Differential Setting)	Propeller Shaft & Universal Joint ([05.2001 - ] (0105- )ACM26)
90201-10081	Washer, No.1 (For Center Support Bearing)	Propeller Shaft & Universal Joint ([05.2001 - ] (0105- )ACM26)
90201-10083	Washer, No.1 (For Center Support Bearing)	Propeller Shaft & Universal Joint ([05.2001 - ] (0105- )ACM26)
90201-10084	Washer, No.1 (For Center Support Bearing)	Propeller Shaft & Universal Joint ([05.2001 - ] (0105- )ACM26)
90201-10095	Washer, No.1 (For Center Support Bearing)	Propeller Shaft & Universal Joint ([05.2001 - ] (0105- )ACM26)
90204-10002	Washer, No.1 (For Propeller Shaft & Differential Setting)	Propeller Shaft & Universal Joint ([05.2001 - ] (0105- )ACM26)
90560-10102	Washer, No.1 (For Propeller Shaft & Differential Setting)	Propeller Shaft & Universal Joint ([05.2001 - ] (0105- )ACM26)
90560-10H00	Washer, No.1 (For Propeller Shaft & Differential Setting)	Propeller Shaft & Universal Joint ([05.2001 - ] (0105- )ACM26)

Source: Public OEM parts-catalog data
Variants: 1 / 6
Category: 249
Collected: 2026-08-04
