ACM15

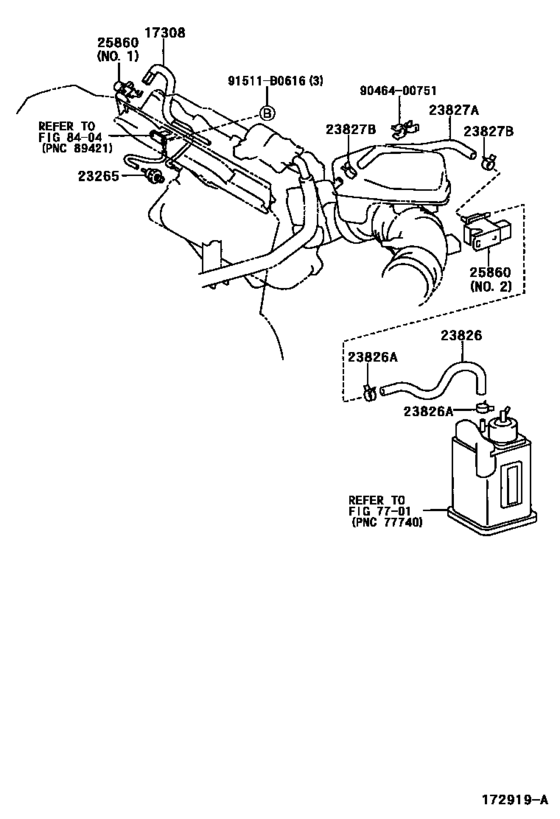

Vacuum Piping ([04.2001 - ] (0104- )1AZFSE) 12
| # | OEM | Part name |
|---|---|---|
| 17308 | 17308-28010 | Hose Sub-Assy, Vacuum(For Idle-Up) |
| 23265 | 90917-11037 | Filter, Gas, No.1 |
| 23826 | 23826-28090 | Hose, Fuel Vapor Feed, No.1 |
| 23826 | 96132-41100 | Clamp Or Clip(For Radiator Reserve Tank Hose) |
| 23826 | 96132-51100 | Clip (For Hose) |
| 23827 | 23827-28101 | Hose, Fuel Vapor Feed, No.2 |
| 23827 | 96132-51300 | Clip(For Ventilation Hose No.2) |
| 25860 | 25860-28020 | Valve Assy, Vacuum Switching, No.1 |
| 25860 | 25860-28030 | Valve Assy, Vacuum Switching, No.1 |
| 91511 | 91511-B0616 | BOLT, FLANGE |
| 91511 | 90080-10164 | BOLT, FLANGE |
| 9046400751 | 90464-00751 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 17308-28010 | Hose Sub-Assy, Vacuum(For Idle-Up) | Vacuum Piping ([04.2001 - ] (0104- )1AZFSE) |
| 23826-28090 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([04.2001 - ] (0104- )1AZFSE) |
| 23827-28101 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([04.2001 - ] (0104- )1AZFSE) |
| 25860-28020 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([04.2001 - ] (0104- )1AZFSE) |
| 25860-28030 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([04.2001 - ] (0104- )1AZFSE) |
| 90080-10164 | BOLT, FLANGE | Vacuum Piping ([04.2001 - ] (0104- )1AZFSE) |
| 90464-00751 | New Genuine Part | Vacuum Piping ([04.2001 - ] (0104- )1AZFSE) |
| 90917-11037 | Filter, Gas, No.1 | Vacuum Piping ([04.2001 - ] (0104- )1AZFSE) |
| 91511-B0616 | BOLT, FLANGE | Vacuum Piping ([04.2001 - ] (0104- )1AZFSE) |
| 96132-41100 | Clamp Or Clip(For Radiator Reserve Tank Hose) | Vacuum Piping ([04.2001 - ] (0104- )1AZFSE) |
| 96132-51100 | Clip (For Hose) | Vacuum Piping ([04.2001 - ] (0104- )1AZFSE) |
| 96132-51300 | Clip(For Ventilation Hose No.2) | Vacuum Piping ([04.2001 - ] (0104- )1AZFSE) |
