ACM15

Toyota GAIA · 2002 · 4,491 parts · 188 categories

4,491 items

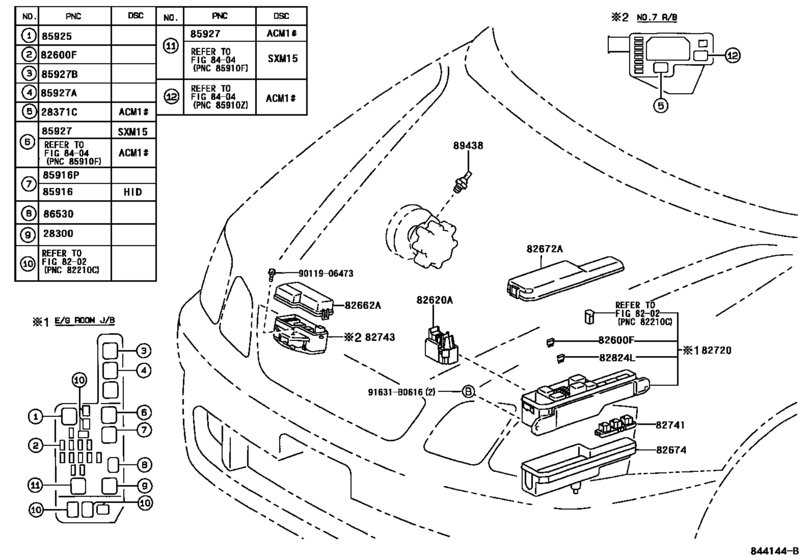

Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15) 24

#	OEM	Part name
28300	28300-10020	Relay Assy, Starter
28371	90987-02012	Relay, Ignition, No.1
82600	90982-09007	Fusible Link
82600	90982-09008	Fusible Link
82600	90982-09009	Fusible Link
82600	90982-09010	Fusible Link
82600	90982-09011	Fusible Link
82600	90982-09012	Fusible Link
82600	90982-09013	Fusible Link
82620	82620-20170	Block Assy, Fusible Link
82662	82662-44130	Cover, Relay Block, Upper, No.1
82672	82672-44070	Cover, Junction Block
82674	82674-20040	Cover, Junction Block
82720	82720-44050	Block Assy, Engine Room Junction
82741	82741-44050	Block, Engine Room Relay
82743	82743-44090	Block, Engine Room Relay, No.3
82824	82824-20140	Connector, Wiring Harness
85916	85916-30060	Relay, Light Control
85916	90987-02006	Relay
85927	90987-02009	Relay Assy
85927	90987-04004	Relay, Starter Cut
89438	89438-33010	Switch, Power Steering Oil Pressure
91631	91631-B0616	BOLT WWASHER
9011906473	90119-06473	BOLTWWASHER

OEM	Part name	Category
28300-10020	Relay Assy, Starter	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
82620-20170	Block Assy, Fusible Link	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
82662-44130	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
82672-44070	Cover, Junction Block	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
82674-20040	Cover, Junction Block	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
82720-44050	Block Assy, Engine Room Junction	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
82741-44050	Block, Engine Room Relay	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
82743-44090	Block, Engine Room Relay, No.3	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
82824-20140	Connector, Wiring Harness	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
85916-30060	Relay, Light Control	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
89438-33010	Switch, Power Steering Oil Pressure	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
90119-06473	BOLTWWASHER	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
90982-09007	Fusible Link	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
90982-09008	Fusible Link	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
90982-09009	Fusible Link	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
90982-09010	Fusible Link	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
90982-09011	Fusible Link	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
90982-09012	Fusible Link	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
90982-09013	Fusible Link	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
90987-02006	Relay	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
90987-02009	Relay Assy	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
90987-02012	Relay, Ignition, No.1	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
90987-04004	Relay, Starter Cut	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
91631-B0616	BOLT WWASHER	Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15)
