ACM15

Toyota GAIA · 2002 · 4,491 parts · 188 categories

4,491 items

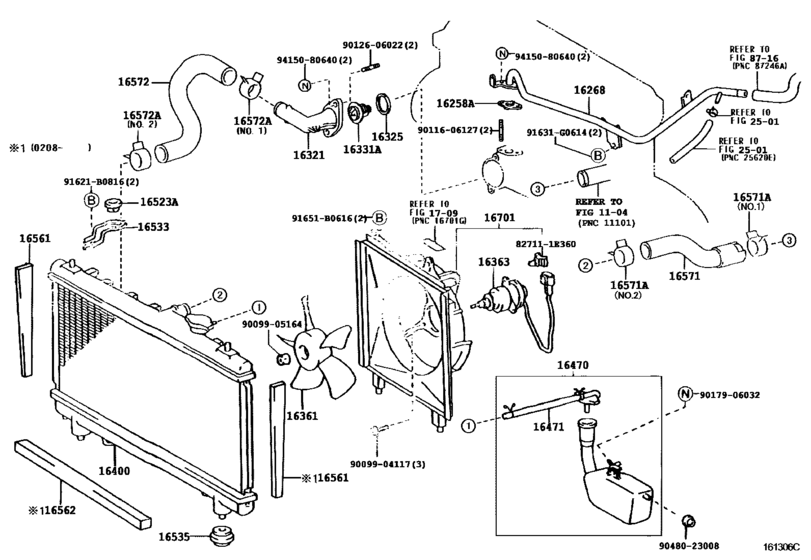

Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE) 48

#	OEM	Part name
0	82711-1E360	Clamp, Wiring Harness
16258	16258-28010	Gasket(For Heater Return)
16258	16258-28030	Gasket(For Heater Return)
16258	16258-28011	Gasket(For Heater Return)
16268	16268-28020	Pipe, Water By-Pass, No.1
16321	16321-28010	Inlet, Water
16325	16325-28010	Gasket, Water Inlet Housing, No.1
16325	16325-62010	Gasket, Water Inlet Housing, No.1
16331	90916-03127	Thermostat
16361	16361-74140	Fan
16363	16363-74311	Motor, Cooling Fan
16400	16400-28390	Radiator Assy
16400	23322-54010	Plug,air(For Oil Cooler Drain Cock)
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16401	16401-62100	Cap Sub-Assy, Radiator
16401	16401-31520	Radiator Cap Sub-Assy (108kPa)
16401	16401-36020	Cap Sub-Assy, Radiator
16406	16406-62060	Support(For Oil Cooler)
16442	16442-74520	Ring, O(For Radiator Upper Tank)
16462	16462-74520	Ring, O(For Radiator Lower Tank)
16470	16470-74350	Tank Assy, Radiator Reserve
16471	16405-74330	Cap Sub-Assy, Reserve Tank
16491	16491-74790	Cooler, Oil(For Atm)
16491	16492-62060	Ring, O(For Atm Oil Cooler)
16491	16493-62060	Washer, Plate(For Atm Oil Cooler)
16495	16495-7A260	Nut, Flare(For Atm Oil Cooler)
16523	16523-74010	Cushion, Sub-Radiator Support
16533	16533-74251	Support, Radiator, Upper
16535	16535-64120	Support, Radiator, Lower
16561	16561-28010	Seal, Radiator To Support, No.1
16562	16562-64020	Seal, Radiator To Support, No.2
16571	16571-28150	Hose, Radiator, Inlet
16571	90466-37002	Clamp Or Clip, Hose(For Radiator Inlet)
16571	90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)
16572	16572-28180	Hose, Radiator, Outlet
16701	16711-74581	Shroud Sub-Assy, Fan
91621	91621-B0816	BOLT WWASHER
91631	91631-G0614	BOT WWASHER
91651	91651-B0616	BOLT WWASHER
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9009905164	90099-05164	Nut
9011606127	90116-06127	Bolt, Stud(For Oil Pan)
9012606022	90126-06022	STUD HEX LOBULAR
9017906032	90179-06032	Direct
9017906032	90179-06274	Nut
9048023008	90480-23008	Support, Radiator, Lower
9338516012	93385-16012	New Genuine Part
9415080640	94150-80640	NUT FLANGE

OEM	Part name	Category
16258-28010	Gasket(For Heater Return)	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16258-28011	Gasket(For Heater Return)	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16258-28030	Gasket(For Heater Return)	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16268-28020	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16321-28010	Inlet, Water	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16325-28010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16325-62010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16361-74140	Fan	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16363-74311	Motor, Cooling Fan	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16400-28390	Radiator Assy	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16401-31520	Radiator Cap Sub-Assy (108kPa)	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16401-36020	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16401-62100	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16405-74330	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16406-62060	Support(For Oil Cooler)	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16442-74520	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16462-74520	Ring, O(For Radiator Lower Tank)	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16470-74350	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16491-74790	Cooler, Oil(For Atm)	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16492-62060	Ring, O(For Atm Oil Cooler)	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16493-62060	Washer, Plate(For Atm Oil Cooler)	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16495-7A260	Nut, Flare(For Atm Oil Cooler)	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16523-74010	Cushion, Sub-Radiator Support	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16533-74251	Support, Radiator, Upper	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16535-64120	Support, Radiator, Lower	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16561-28010	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16562-64020	Seal, Radiator To Support, No.2	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16571-28150	Hose, Radiator, Inlet	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16572-28180	Hose, Radiator, Outlet	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
16711-74581	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
23322-54010	Plug,air(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
82711-1E360	Clamp, Wiring Harness	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
90099-04117	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
90099-05164	Nut	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
90116-06127	Bolt, Stud(For Oil Pan)	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
90126-06022	STUD HEX LOBULAR	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
90179-06032	Direct	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
90179-06274	Nut	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
90466-37002	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
90480-23008	Support, Radiator, Lower	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
90916-03127	Thermostat	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
91621-B0816	BOLT WWASHER	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
91631-G0614	BOT WWASHER	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
91651-B0616	BOLT WWASHER	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
93385-16012	New Genuine Part	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
94150-80640	NUT FLANGE	Radiator & Water Outlet ([04.2001 - ] (0104- )1AZFSE)
