ACM15

Toyota GAIA · 2002 · 4,491 parts · 188 categories
ACM15 ×

← Back to categories

4,491 items

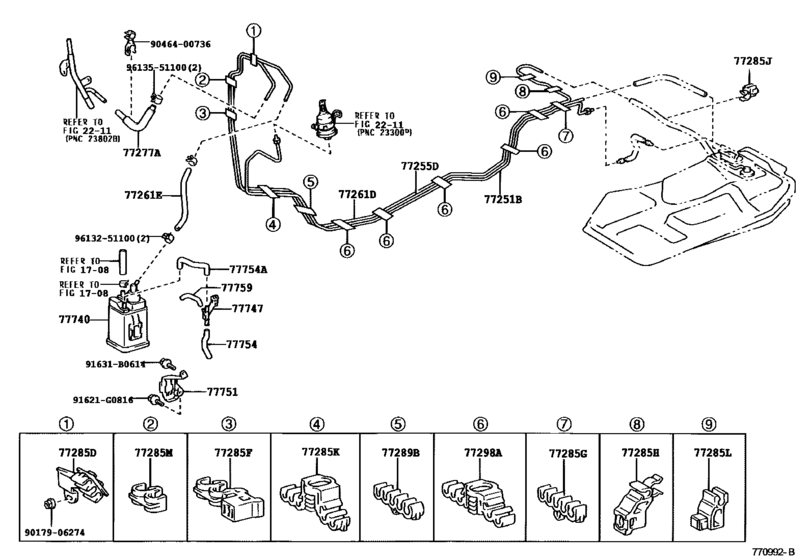

Fuel Tank & Tube ([04.2001 - ] (0104- )ACM1#) 28
#OEMPart name
77251 77251-44010 Tube, Fuel Main
77255 77255-44010 Tube, Fuel Return
77261 77261-44010 Tube, Fuel Tank To Canister
77261 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77261 95337-06020 Hose, Differential Pressure Control
77277 23271-28060 Hose, Fuel, No.1(For Return Tube, No.1)
77285 77285-44100 Clamp, Fuel Tube, No.1
77285 77285-44110 Bracket, Fuel Tube
77285 77285-44120 Clamp, Fuel Tube, No.1
77285 77285-44130 Clamp, Fuel Tube, No.1
77285 77285-44140 Clamp, Fuel Tube, No.1
77285 77285-44150 Clamp, Fuel Tube, No.1
77285 77285-44070 Clamp, Fuel Tube, No.1
77285 77285-44080 Clamp, Fuel Tube, No.1
77289 77289-44010 Clamp, Fuel Tube, No.3
77298 77298-44020 Clamp, Fuel Tube, No.4
77740 77740-44030 Canister Assy, Charcoal
77747 77747-44010 Pipe, Charcoal Canister, No.1
77751 77751-44080 Bracket, Charcoal Canister Base
77754 77754-44040 Hose, Charcoal Canister Outlet, No.1
77754 77754-44050 Hose, Charcoal Canister Outlet, No.2
77759 77754-44060 Hose, Charcoal Canister Outlet, No.1
91621 91621-G0816 BOLT WWASHER
91631 91631-B0614 BOLT WWASHER
9017906274 90179-06274 Nut
9046400736 90464-00736 New Genuine Part
9613251100 96132-51100 Clip (For Hose)
9613551100 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
