ACM15

Toyota GAIA · 2002 · 4,491 parts · 188 categories
ACM15 ×

← Back to categories

4,491 items

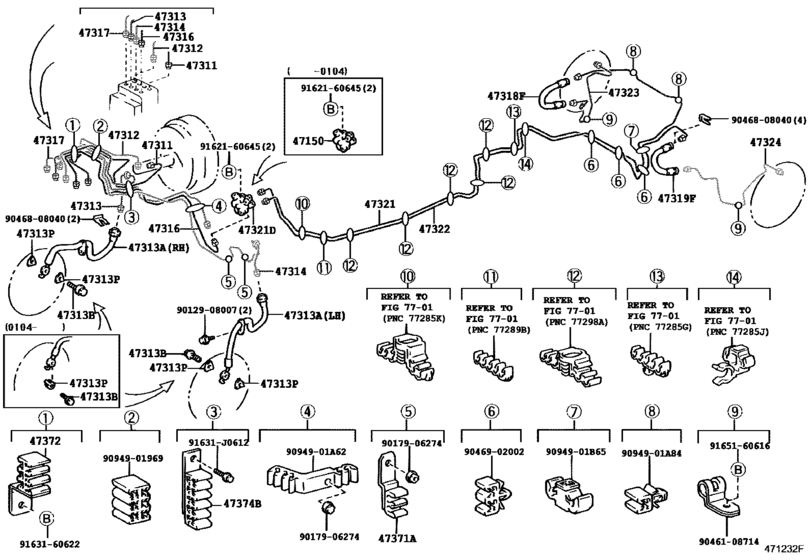

Brake Tube & Clamp ([05.1998 - ] (9805- )ACM1#,SXM1#) 33
#OEMPart name
47311 47311-44140 Tube, Front Brake, No.1
47312 47312-44100 Tube, Front Brake, No.2
47313 47313-44090 Tube, Front Brake, No.3
47313 90947-02887 Hose, Flexible, No.1(For Front)
47313 90947-02888 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 47389-50020 Gasket(For Front Flexible Hose)
47314 47314-44120 Tube, Front Brake, No.4
47316 47316-44100 Tube, Front Brake, No.6
47317 47317-44110 Tube, Front Brake, No.7
47318 90947-02C39 Hose, Flexible(For Rear Rh)
47321 47321-44030 Tube, Rear Brake, No.1
47321 90412-10140 Valve Assy, Proportioning
47322 47322-44030 Tube, Rear Brake, No.2
47323 47323-44010 Tube, Rear Brake, No.3
47324 47324-44010 Tube, Rear Brake, No.4
47371 47371-16030 Clamp, Brake Tube, No.1
47372 47371-44040 Clamp, Brake Tube, No.2
47374 47371-44030 Clamp, Brake Tube, No.4
91631 91631-J0612 BRACKET
9094901 90949-01A62 New Genuine Part
9094901 90949-01A84 Clamp, Height Control Tube, No.3
9094901 90949-01B65 Clamp, Front Drive Vacuum Tube, No.2
9012908007 90129-08007 New Genuine Part
9017906274 90179-06274 Nut
9046108714 90461-08714 New Genuine Part
9046808040 90468-08040 CLIP
9046902002 90469-02002 Clamp, Brake Tube, No.2
9094901969 90949-01969 Clamp, Brake Tube, No.6
9094901969 90080-46365 Clamp, Brake Tube, No.5
9162160645 91621-60645 New Genuine Part
9163160622 91631-60622 Screw
9165160616 91651-60616 BOLT
