Search › Model › ACM10
ACM10

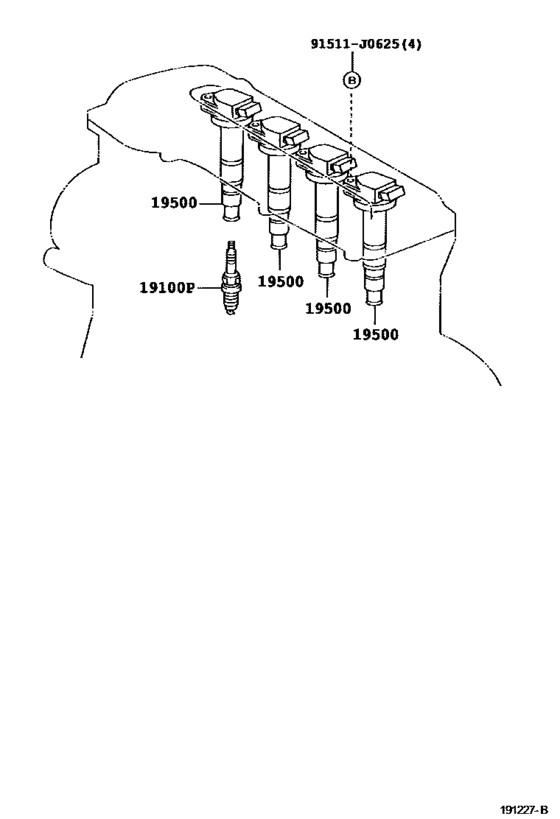

Ignition Coil & Spark Plug ([04.2001 - ] (0104- )1AZFSE) 5
| # | OEM | Part name |
|---|---|---|
| 19100 | 90919-01221 | Spark Plug (Denso SK20BGR11) |
| 19500 | 90919-02247 | Coil Assy, Ignition |
| 19500 | 90919-02260 | Coil Assy, Ignition |
| 19500 | 90919-02248 | Coil Assy, Ignition |
| 91511 | 91511-J0625 | Bolt(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 90919-01221 | Spark Plug (Denso SK20BGR11) | Ignition Coil & Spark Plug ([04.2001 - ] (0104- )1AZFSE) |
| 90919-02247 | Coil Assy, Ignition | Ignition Coil & Spark Plug ([04.2001 - ] (0104- )1AZFSE) |
| 90919-02248 | Coil Assy, Ignition | Ignition Coil & Spark Plug ([04.2001 - ] (0104- )1AZFSE) |
| 90919-02260 | Coil Assy, Ignition | Ignition Coil & Spark Plug ([04.2001 - ] (0104- )1AZFSE) |
| 91511-J0625 | Bolt(For Cylinder Head Cover) | Ignition Coil & Spark Plug ([04.2001 - ] (0104- )1AZFSE) |
