ACM10

Toyota GAIA · 2001 · 4,334 parts · 188 categories

4,334 items

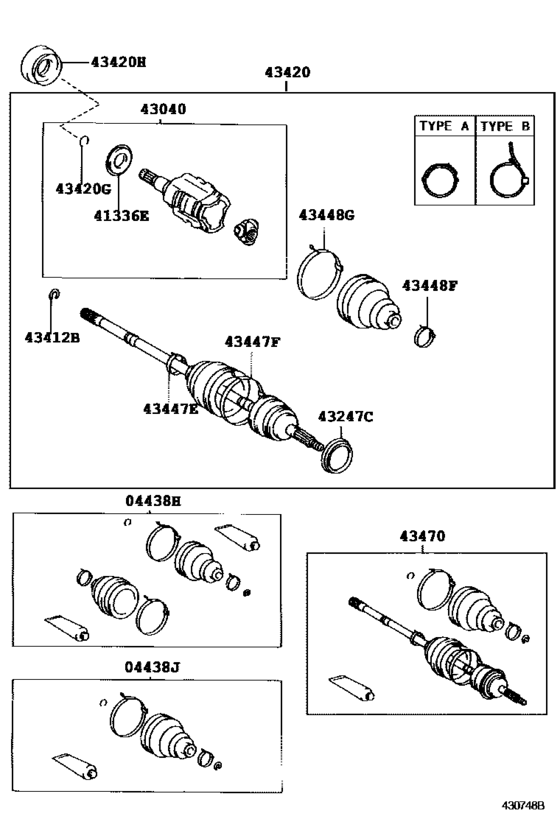

Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10) 24

#	OEM	Part name
4438	04438-28051	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04428-42070	Boot Kit, Front Drive Shaft, In & Outboard, LH
4438	04438-28052	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-28040	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04438-42180	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-28041	Boot Kit, Front Drive Shaft Inboard Joint
41336	41336-32020	Cover, Dust(For Differential Side Gear Shaft)
43040	43040-42030	Joint Assy, Front Drive Inboard, Lh
43040	43040-42031	Joint Assy, Front Drive Inboard, Lh
43247	43247-12010	Deflector, Rear Wheel Bearing Dust, No.1
43412	43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43420	43420-44080	Shaft Assy, Front Drive, Lh
43420	90521-27005	Ring, Hole Snap (For Rear Differential Side Gear Shaft)
43420	90311-35047	Oil Seal, Front Drive Shaft, Lh
43447	42345-20040	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small
43447	42345-28020	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43447	42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big
43448	42345-42010	Clamp (For Axle Inboard Joint Boot) - Small
43448	90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)
43448	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43448	90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43470	43470-49235	Shaft Assy, Front Drive Outboard Joint, Rh
43470	43470-49236	Shaft Assy, Front Drive Outboard Joint, Rh

OEM	Part name	Category
04428-42070	Boot Kit, Front Drive Shaft, In & Outboard, LH	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
04438-28040	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
04438-28041	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
04438-28051	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
04438-28052	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
04438-42180	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
41336-32020	Cover, Dust(For Differential Side Gear Shaft)	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
42345-20040	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
42345-28020	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
42345-42010	Clamp (For Axle Inboard Joint Boot) - Small	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
43040-42030	Joint Assy, Front Drive Inboard, Lh	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
43040-42031	Joint Assy, Front Drive Inboard, Lh	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
43247-12010	Deflector, Rear Wheel Bearing Dust, No.1	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
43420-44080	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
43470-49235	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
43470-49236	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
90311-35047	Oil Seal, Front Drive Shaft, Lh	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
90521-27005	Ring, Hole Snap (For Rear Differential Side Gear Shaft)	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)	Front Drive Shaft ([04.2001 - ] LH (0104- )ACM10)
