ACA38

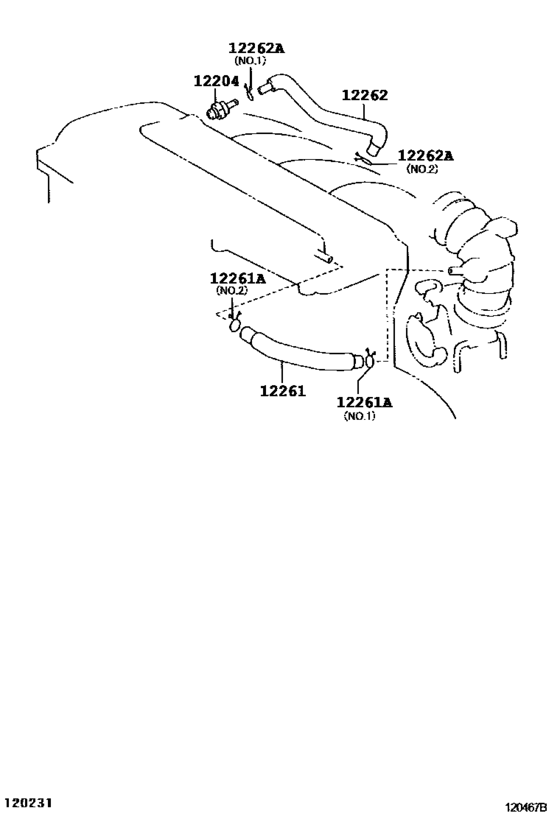

Ventilation Hose ([11.2005 - ] (0511- )1AZFE,2AZFE) 8
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-28030 | Valve Sub-Assy, Ventilation |
| 12261 | 12261-28160 | Hose, Ventilation |
| 12261 | 90467-19003 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90467-21004 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 96134-41900 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-28021 | Hose, Ventilation, No.2 |
| 12262 | 90467-13103 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 90467-16035 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12204-28030 | Valve Sub-Assy, Ventilation | Ventilation Hose ([11.2005 - ] (0511- )1AZFE,2AZFE) |
| 12261-28160 | Hose, Ventilation | Ventilation Hose ([11.2005 - ] (0511- )1AZFE,2AZFE) |
| 12262-28021 | Hose, Ventilation, No.2 | Ventilation Hose ([11.2005 - ] (0511- )1AZFE,2AZFE) |
| 90467-13103 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([11.2005 - ] (0511- )1AZFE,2AZFE) |
| 90467-16035 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([11.2005 - ] (0511- )1AZFE,2AZFE) |
| 90467-19003 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([11.2005 - ] (0511- )1AZFE,2AZFE) |
| 90467-21004 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([11.2005 - ] (0511- )1AZFE,2AZFE) |
| 96134-41900 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([11.2005 - ] (0511- )1AZFE,2AZFE) |
